INSTALLING THE BOWL UNIT
Place two eyebolts diametrically
opposite in the upper flange of the bowl
unit. Attach a sling to the eyebolts,
using suitable shackles, and pass the
looped end of the sling over the hoist
hook (see Fig. 4). Lift the bowl unit in
such a way so that it is not dragged or
bumped in order to prevent damage to
any part of the pump. While the bowl is
in the vertical position, install the
strainer, if provided.
Fasten a box-type clamp or elevator
clamp to the bowl unit, just below the
upper flange (see Fig. 5).
Never attempt to handle or lift the
bowl unit by the shaft protruding
from the upper end. This could result
in bending of the shaft.

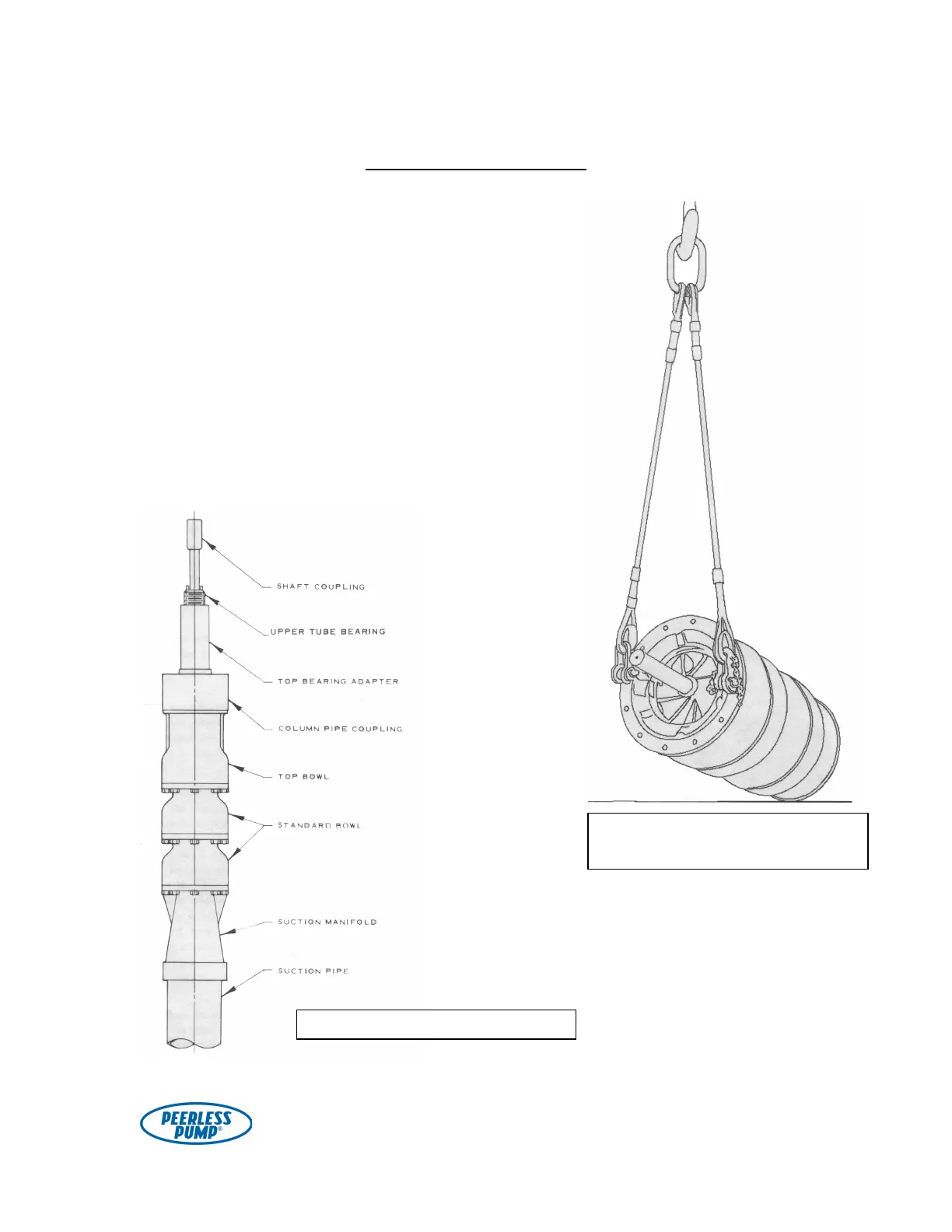

Figure 4. Proper method of lifting
pump bowl assembly.
Figure 5. Typical ELS bowl
