SECTIONS ARE TOP HEAVY.
HANDLE WITH CARE TO
AVOID TIPPING OR FALLING.
Level Each Section:
Place the first intermediate
section next to the rear section
as shown. Use a spirit level to
make sure the sections are
plumb. Check the level as each
additional intermediate section
is added.
Temporary Support Pipe
Screw a 3" pipe at least 30 inches
long into the lower (return) tapping
in the rear section.
Support Block
Intermediate
tion
Spirit
.=vel
Rear
Section

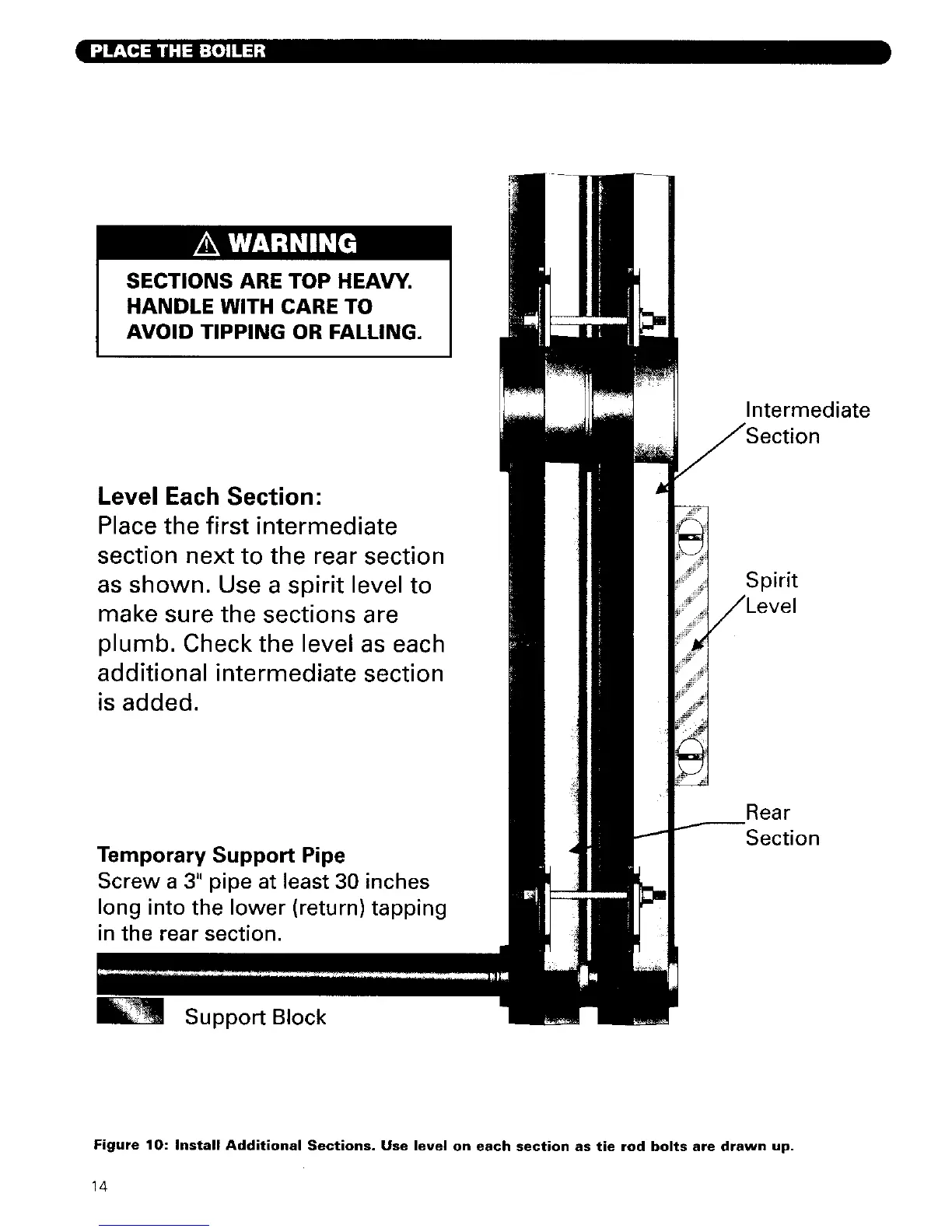

Figure 10: Install Additional Sections. Use level on each section as tie rod bolts are drawn up.
14
