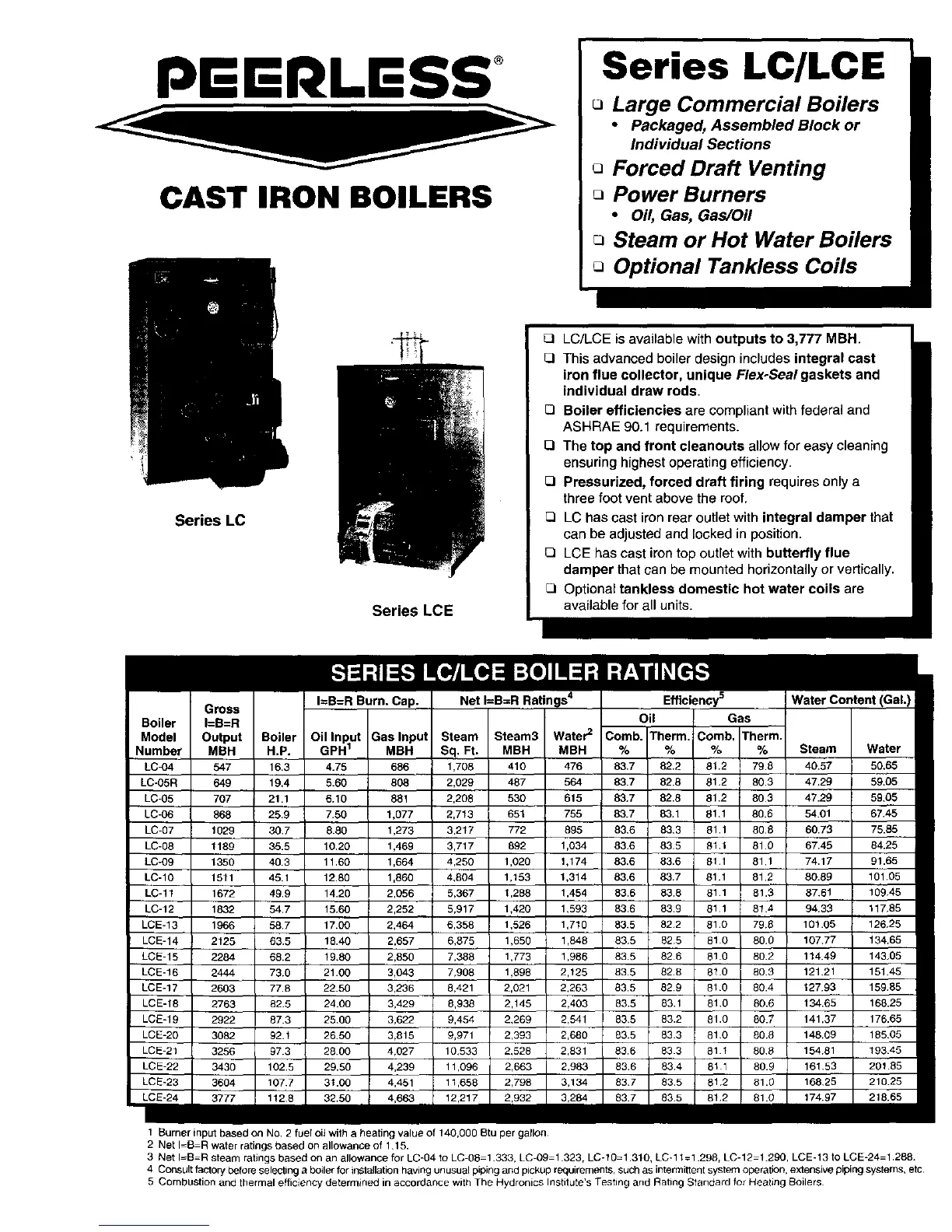

pr=-r=-RLESS o
CAST IRON BOILERS
Series LC/LCE
Large Commercial Boilers
• Packaged, Assembled Block or
Individual Sections
o Forced Draft Venting
Power Burners
• Oil, Gas, Gas/Oil
Q Steam or Hot Water Boilers
Optional Tankless Coils
Series LC
Series LCE
Net I=B=R Ratings 4 Efficiency 5 Water Content
Oil Gas
.... I I m
Model Output Boiler Oil Input Gas Input l Steam Steam3 Water 2 Comb. Therm. Comb. Therm.
Number MBH H,P. GPH 1 MBH Sq. Ft. MBH MBH % % % % Steam Water
LC-O4 547 16.3 4.75 686 1,708 410 476 83.7 82.2 81.2 79.8 40.57 50,65 mm
,0.05,_,9 19.4 5.60 80_ 2.029,7 56, _.7 62.561.290._47.29 69.0,m
LC-05 707 21.1 6.10 881 2,208 530 615 83.7 82.8 81.2 803 47.29 59.05 II
LC-06 866 25.9 7.59 1,077 2,713 651 755 83.7 83,1 81,1 80.8 54.01 67.45 I
LC-07 1029 30.7 8.80 1,273 3,217 772 895 83.6 83.3 61.1 806 60.79 75.55 I
LC-08 1189 35.5 10.20 1,469 3,717 892 1,034 83.6 835 61.1 81.0 67.46 84.25 I
LC-09 1350 40.3 11.60 1,864 4,250 1,020 1,174 83,6 83.6 811 81.1 74.17 91.65 I
LC-10 1511 45.1 12.80 1,860 4,804 1,153 1,314 83.6 83.7 81.1 81.2 80.88 101,05 I
LC-11 1872 48.9 14.26 2,056 5,367 1,288 1,454 63.6 83.8 811 81.3 87,61 109,45 I
LC-12 1832 54,7 15.60 2,252 5,917 1,420 1,593 83.6 83.9 811 814 94.33 117,65 I
LCE-13 1966 58.7 17,00 2,464 6,358 1,526 1,710 83,5 822 61.0 79,8 101.05 126,25 I
LCE-14 2128 83.5 18.40 2,657 6,875 1,650 1,848 83.5 625 810 80.0 107.77 134,65 •
LCE-15 2284 66,2 19.80 2,850 7,388 1,773 1,986 83.5 826 510 80.2 114.49 143,05 I
LCE-16 2444 73,0 21.00 3,043 7,908 1,896 2,125 83.5 82.8 610 80.3 121.21 151.45 I
LCE-17 2603 77.8 22.50 3,236 8,421 2,021 2,283 83.5 629 81.0 80.4 t 27.93 15985 I
LCE-18 2763 82.5 24.00 3,429 6,938 2,145 2,403 83.5 83.1 810 80.6 134.65 168.25 I
LCE-19 2922 87.3 2500 3,622 9,454 2,289 2,541 83,5 83.2 81.0 80.7 141.37 176.65 I
LCE-80 3082 92.1 2650 3,815 9,971 2,393 2,680 83.5 833 810 806 148,09 18505 I
LCE-21 3256 97.3 2800 4,027 10,533 2,528 2,831 83.6 63 3 81 1 809 15481 19345 I
LCE-22 3430 102.5 29.80 4,239 11,096 2,663 2,983 83.6 834 8t 1 808 161.53 20185 •
LCE-23 3604 107.7 31.00 4,451 11,658 2,798 3,134 83.7 835 812 81.0 168.25 210.25 •
LCE-24 3777 1128 32,50 4,663 12,217 2,932 3,284 83.7 835 812 81.0 174.97 218.65 I
1 Burner input based on No. 2 fuel oit with a beating value of 140,000 Btu per garlon
2 Net I_B-R water ratings based on allowance of 1.15.
3 Net I=B-R steam ratings based on an allowance for LC-04 to LC-05 1.333, LC-09 1.323, LC-10-1.310, LC-11=1.298, LC-12 1.290, LCE-13 to LCE-24=1.288.
4 Consult factory before selecting a boiler for installation having unusual piping and pickup requirements, such as intermitlent system operation, extensive piping systems, etc
5 Combustion and thermal efficiency determined in accordance with The Hydronics Institute's Testing and Rating Standard for Heating Boilers
