PEERLESS LC SERIES - Suggested Piping; Single Tankless Coil Installation; Dual Tankless Coil Installation

3/4" Control
Tapping
Tankless
Heater
Flow
Cold
Water
Inlet
High Temperature
Hot Water
Mixed Water
NE
Water
Mixer
Provide anti-scald
devices in the system
where needed.
Failure to control water
temperature to showers
or other usage areas
where a scald risk exists
can result in severe
personal injury,

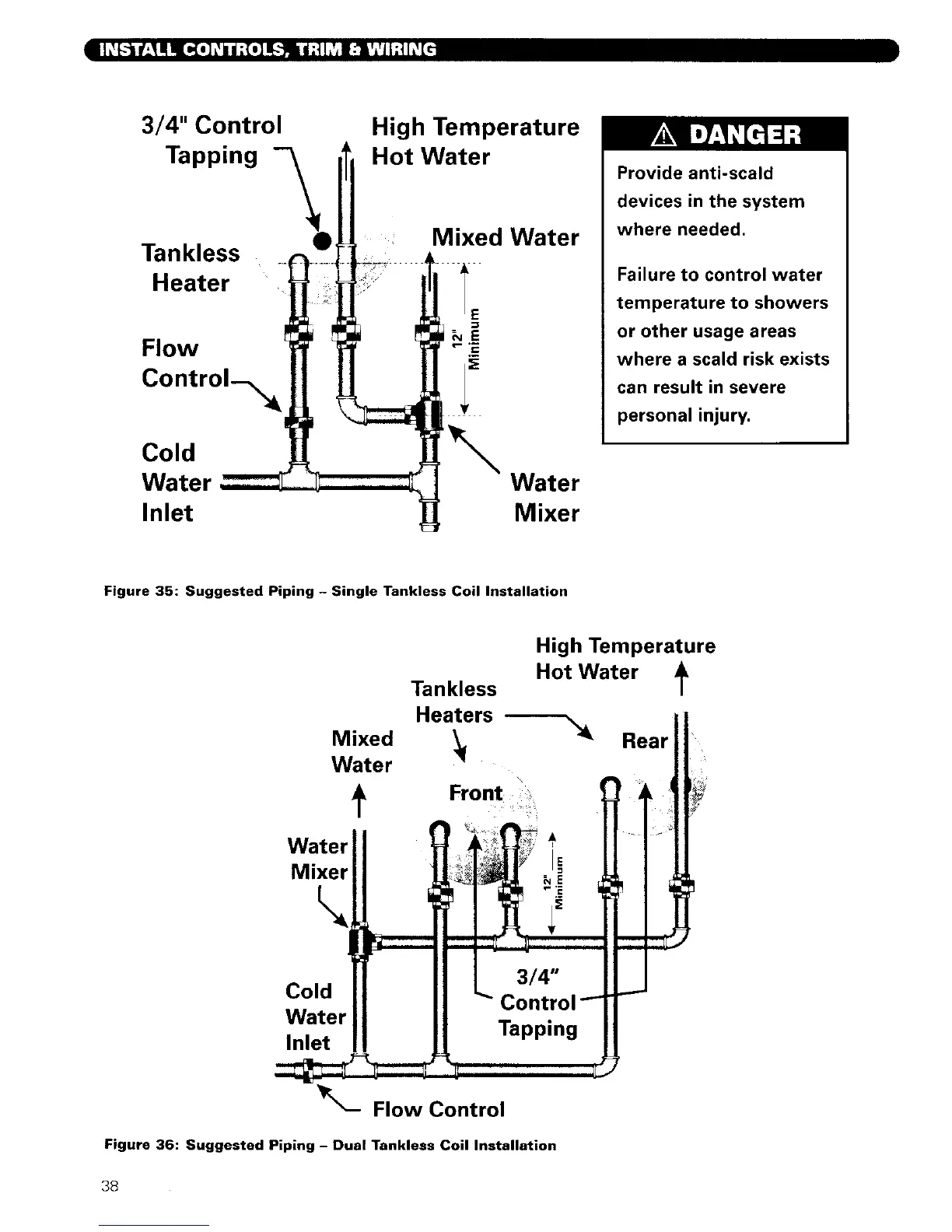

Figure 35: Suggested Piping - Single Tankless Coil Installation
Water
Mixer
High Temperature
Tankless Hot Water
Heaiers
Mixed _4_ Rear "
Water
Front ,
V
Is
Cold
Watel
Inlet
Tapping
Flow Control
Figure 36: Suggested Piping - Dual Tankless Coil Installation
