PEERLESS LC SERIES - Page 32

I ;1I_ _ _ -i-i-i-i-i-i-i-i-i__ _I
LCE-13 THRU LCE-24
TWO END RISERS
ONE OR MORE INTERMEDIATE RISERS
TWO RETURN CONNECTIONS

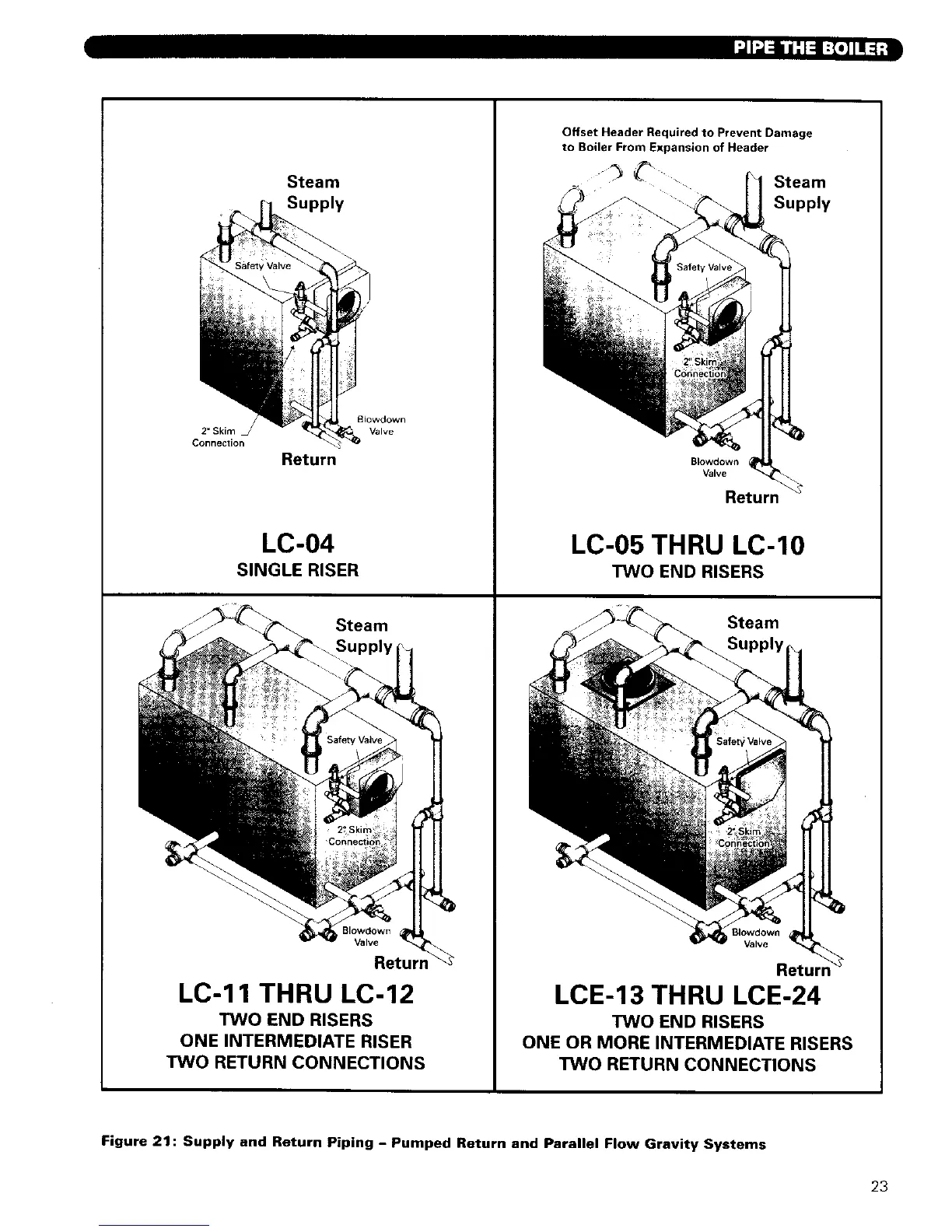

Figure 21: Supply and Return Piping - Pumped Return and Parallel Flow Gravity Systems
23
