4.4.2 Drill holes and place the expansion tubes
According to the guides, drill holes in the wall in conformity with position marked
in Figure 4.6, Figure 4.7, Figure 4.8 and then place expansion tubes in the holes
using a rubber mallet.

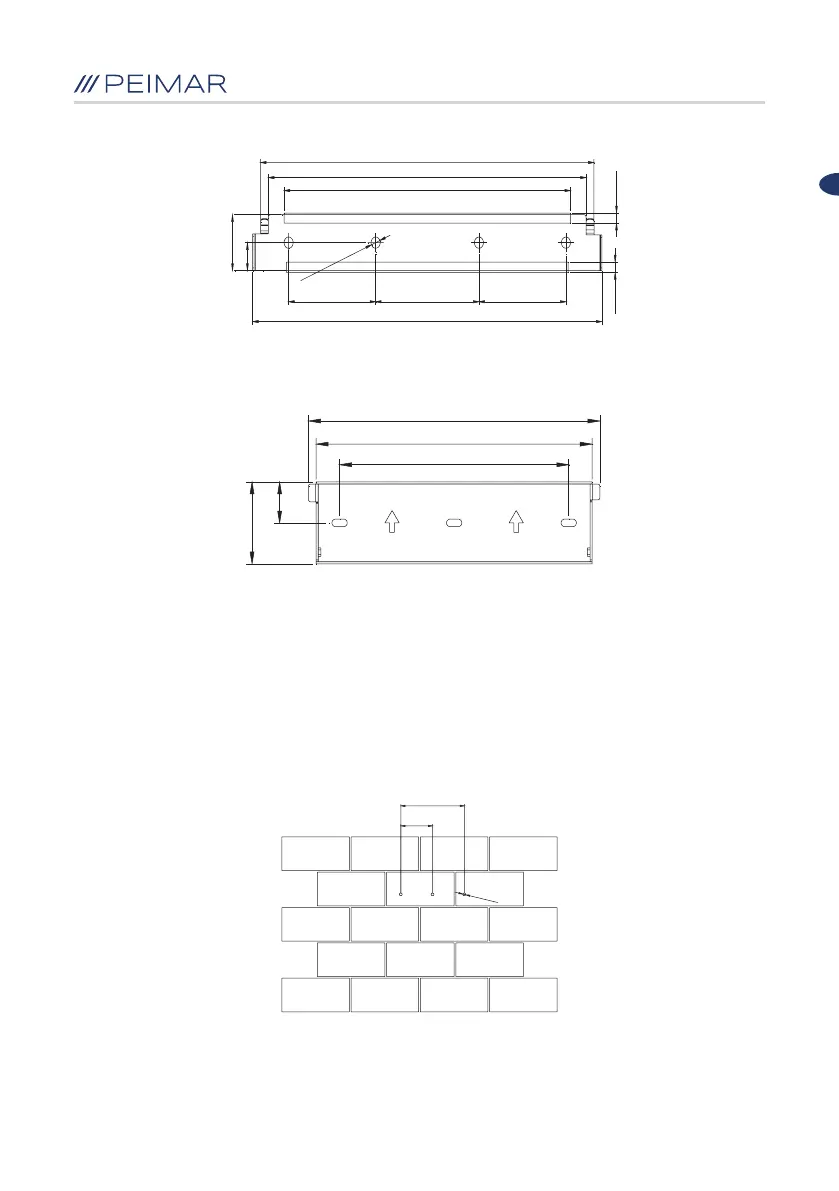

Figure 4.4 Dimensions of rear panel of PSI-J2000-TL / PSI-J2500-TL / PSI-J3000-TL
Figure 4.5 Dimensions of rear panel of PSI-J3000-TLM / PSI-J4000-TLM / PSI-J5000-TLM / PSI-J6000-TLM
Figure 4.6 Drill holes’ dimensions of PSI-J1000-TL / PSI-J1500-TL
296,9
283
255
77,5 77,592
311
40
20
7,27,2
4-ø8
305
289
240
86
43
188
94
ø8
