4. Press and hold the trigger for 4 seconds to raise the
support roller (31).
5. Turn off the tying machine (start/stop button (20),
see Section 5.1, “Tying machine on/off”).

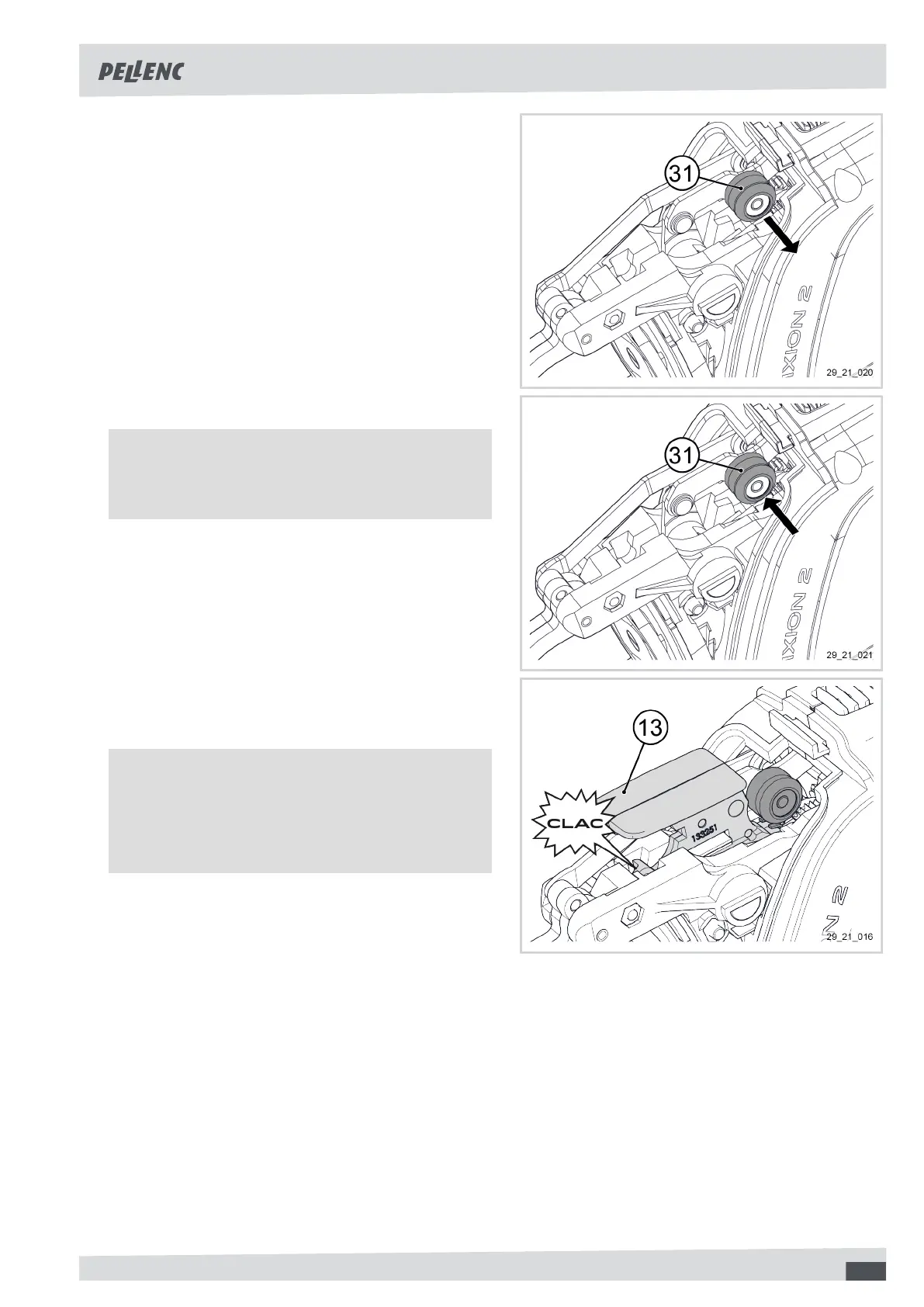

6. Using a flathead screwdriver, remove and discard
the support roller (31).
7. Fit the new support roller (31).
Important
Place the flat side of the support roller (31) against
the connecting rod.
8. Insert the upper guide (13) to the end stop, under
the support roller.
9. Clip the upper guide (13) into position.
Important
The top guide (13) should be slid all the way back
and then clipped to the front of the tool.
You should hear a "click".
