Pentair CLEAN User Manual

12
CLEAN AND CLEAR
®
PLUS Cartridge Filter Installation and User’s Guide
0
2
4
6
8
10
12
14
20 40 60 80 100 120 140 160
PRESSURE DROP (psi)
FLOW (gpm)

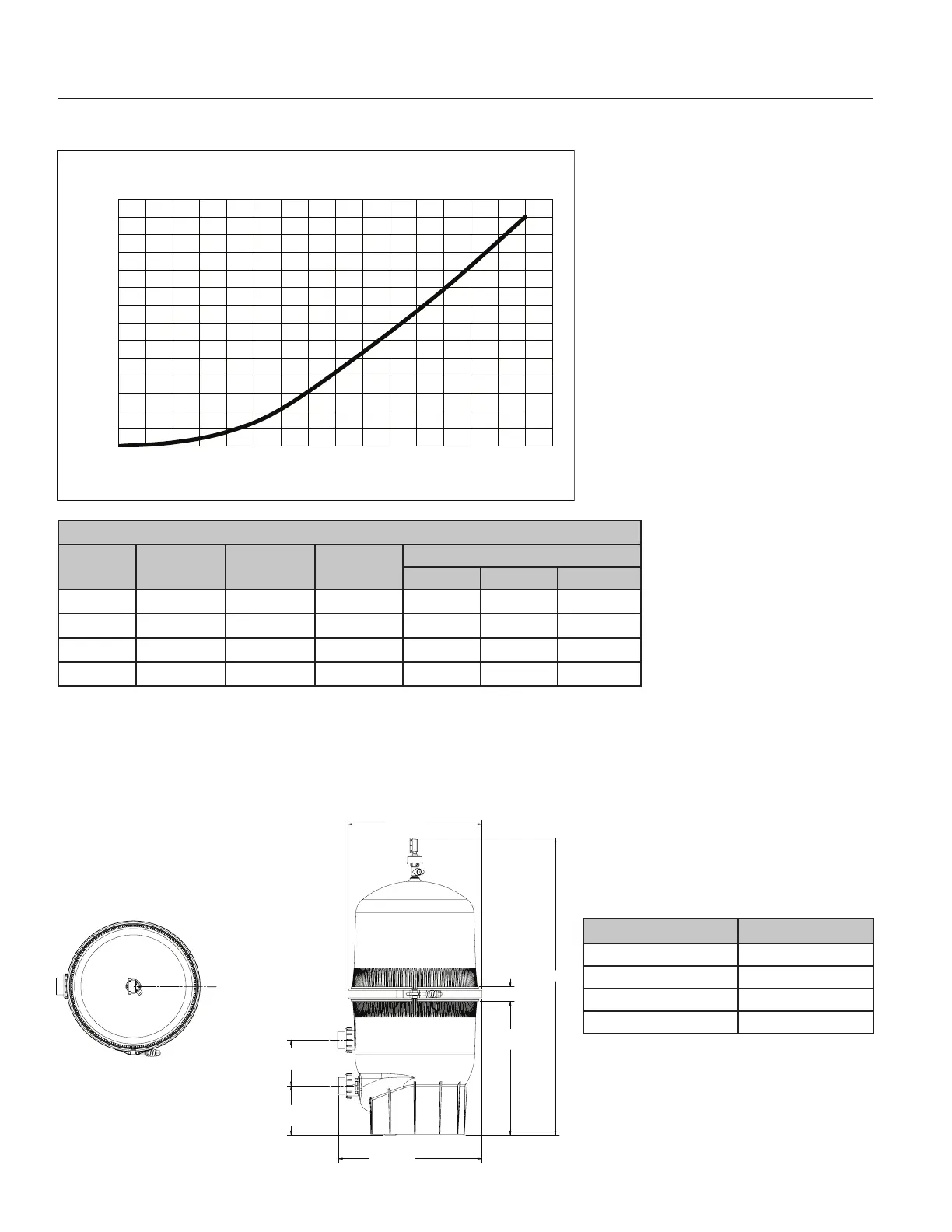

PRESSURE DROP vs FLOW
Note (*): Required Clearance to remove lter elements and lid.
Note: Actual system ow will depend on plumbing size and other system components.
RECOMMENDED FLOW RATES
Model #
Filter Area
(Sq. Ft.)
Vertical
Clearance*
Flow Rate
(GPM)
Turnover Capacity (Gallons)
6 Hours 8 Hours 12 Hours
CCP240 240 56 in. 90 32,400 43,200 64,800
CCP320 320 62 in. 120 43,200 57,600 86,400
CCP420 420 68 in. 150 54,000 72,000 108,000
CCP520 520 74 in. 150 54,000 72,000 108,000
Flow Rates
Dimensional Drawings
21.5”
[54.6 cm]
21.9”
[55.6 cm]
2.4” [6.1 cm]
DIM A
R 10.7”
[27.2 cm]
8.1”
[20.6 cm]
7.5”
[19.1 cm]
23”
[58.4 cm]
MODEL DIM "A"
CCP 240 37"
CCP 320 43"
CCP 420 49"
CCP 520 56"
