CLEAN AND CLEAR
®
PLUS Cartridge Filter Installation and User’s Guide
6
5
3
4
19
1
2
8
22
7
16
21
21
15
20
14
18
17
9
10
11
12
13

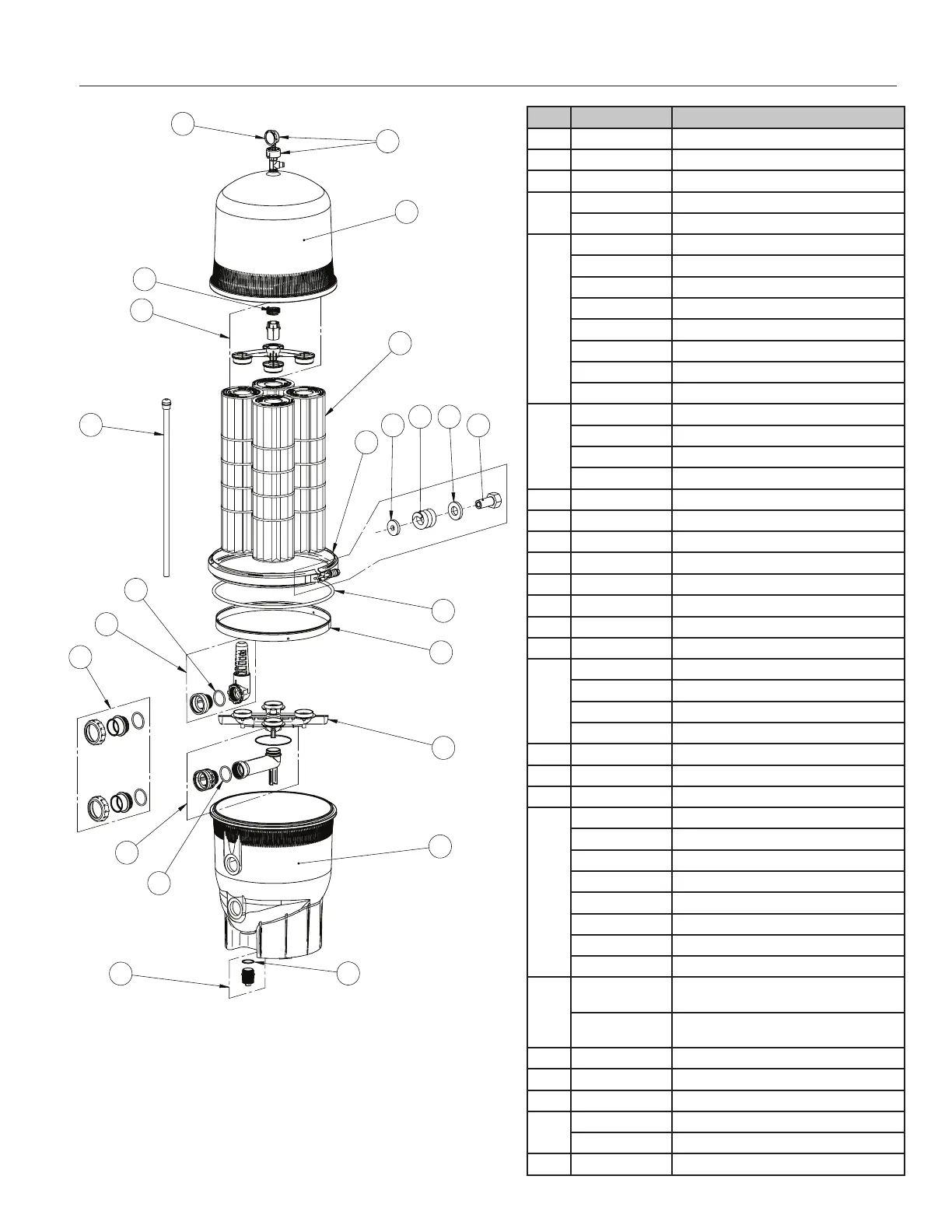

REPLACEMENT PARTS
ITEM P/N DESCRIPTION
1 190058 Pressure Gauge
2 98209800 Manual Air Relief Valve
3 178616 Compression Spring
4
170026 Top Manifold, C&C 240
170027 Top Manifold, C&C 320/420/520
5
PCC60 Cartridge, C&C 240, single
PCC60-PACK4 Cartridges, C&C 240, full set
PCC80 Cartridge, C&C 320, single
PCC80-PACK4 Cartridges, C&C 320, full set
PCC105 Cartridge, C&C 420, single cartridge
PCC105-PACK4 Cartridges, C&C 420, full set
PCC130 Cartridge, C&C 520, single cartridge
PCC130-PACK4 Cartridges, C&C 520, full set
6
170030 Air Bleed Assembly, C&C 240
170029 Air Bleed Assembly, C&C 320
170028 Air Bleed Assembly, C&C 420
178583 Air Bleed Assembly, C&C 520
7 170040 Bottom Manifold
8 39010200 O-ring, Clamp Ring (0.470 O.D.)
9 190003 Clamp Ring Kit
10
195610 Clamp Washer, Small I.D.
11 195611 Clamp Washer, Large I.D.
12 194997 Clamp Nut
13 195612 Clamp Spring
14 190039 Ba󰀪e Assembly
15
98960311 Union Kit, Black
271096 2" Valve Adapter Kit, Almond
270004 2" Valve Adapter Kit, Black
274426z 2 x 2.5" Valve Adapter Kit
16 170036 Outlet Assembly
17 190143 O-ring, Drain
18 190030 Drain Plug, w/o O-Ring
19
170023 Tank Lid, C&C 240, Almond
59020700 Tank Lid, C&C 240, Black
170024 Tank Lid, C&C 320, Almond
59055300 Tank Lid, C&C 320, Black
178581 Tank Lid, C&C 420, Almond
59055400 Tank Lid, C&C 420, Black
178582 Tank Lid, C&C 520, Almond
59055500 Tank Lid, C&C 520, Black
20
178578
Tank Bottom, Almond
(includes items 7, 14, 16 and 18)
190090
Tank Bottom, Black
(includes items 7, 14, 16 and 18)
21 86006900 O-ring, Outlet
22 195339 Ring, Steel, Back-up
- 192019 Drain Plug Wrench
-
171013 Label Kit w/ Air Relief, C&C 240
171014 Label Kit w/ Air Relief, C&C 320/420/520
- 190106z Air Bleed Screen Cap
