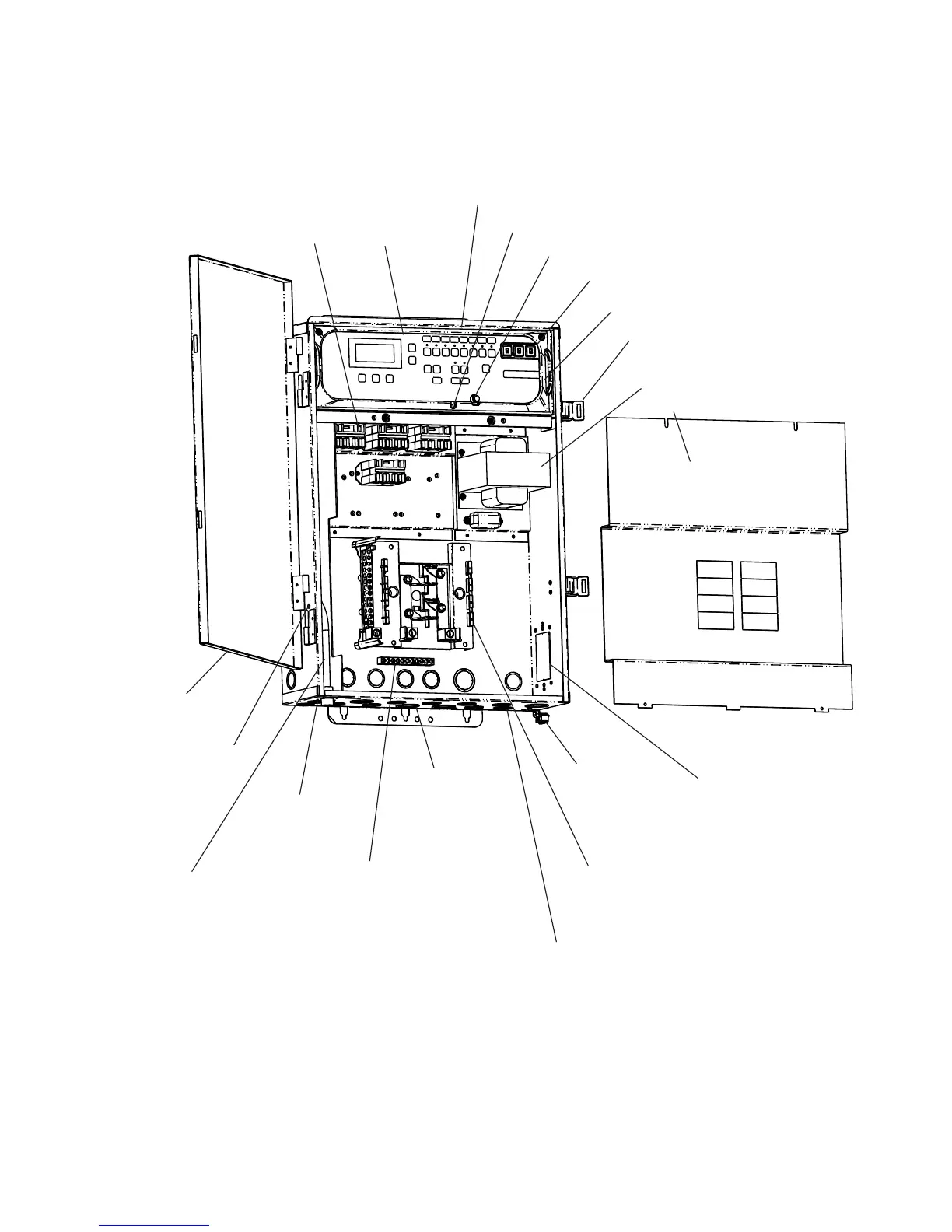

EasyTouch Load Center Installation Guide
High voltage panel
IntelliChlor power supply
(SCG system only)
Circuit breaker
base 125 AMP
(Sub-panel)
Grounding
screw
terminals
EasyTouch Load Center
(23” H x 17” W x 4¾” D)
GFCI knockout
(approved
rainproof cover
required)
Control Panel/ Low voltage
compartment
Control Panel
Auxiliary,
2-Speed Pump
(1-8) relay locations
Low voltage raceway
(Air and water
temperature sensors,
motorized valves,
indoor control panel,
spa side remote, and
wireless antenna)
System transformer
Spring latch (2x)
Enclosure door
removal screw
Low voltage circuit breakers
Enclosure
front door
1", ½" and ¾"conduit
knockouts (lower and rear)
for high voltage output
Ground
bonding lug
1" conduit
knockout (lower)
for high voltage
input
IntelliChlor cell
connection
IntelliChlor power LED
IntelliChlor circuit breaker
