EasyTouch Load Center Installation Guide

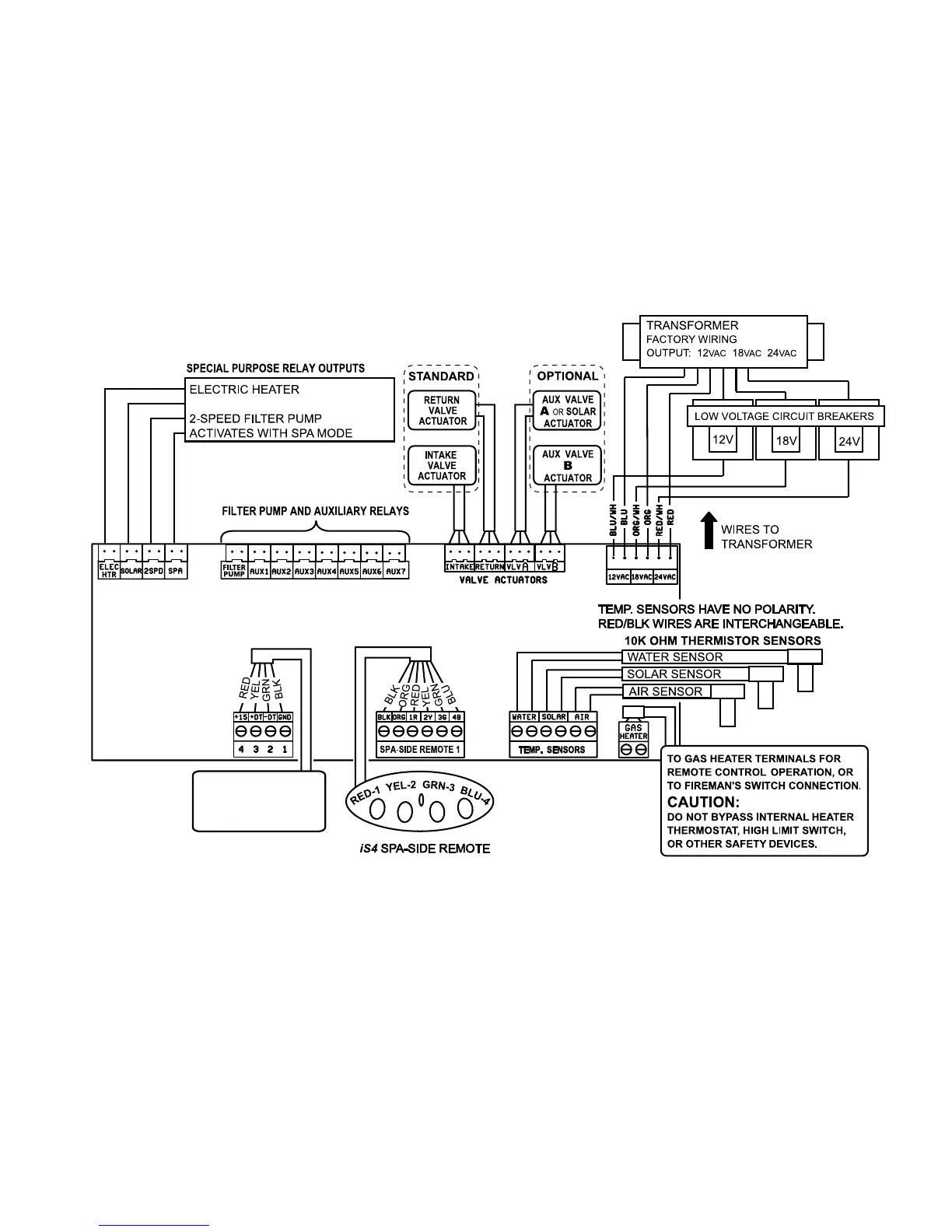

EasyTouch Motherboard Connections
The EasyTouch system motherboard is mounted onto the back of the main load center control panel.
The motherboard provides the voltage connections to switch the filter pump, heater, auxiliary relays,
motorized valves, and connections for temperature sensors, EasyTouch Indoor Control Panel and
iS4 Spa Side remote. To access the motherboard, refer to “Accessing the EasyTouch Motherboard,”
on page 14.
Indoor Control Panel,
Wireless RF Transceiver
QuickTouch, IntelliFlo 4,
IntelliChlor.
SOLAR BOOSTER PUMP or AUX EXTRA
EasyTouch Motherboard Connections
