EasyTouch Load Center Installation Guide
Connecting the IntelliChlor Cell
The following connection instructions are for the optional IntelliChlor electronic chlorine generator
(model IC20 and IC40). After the IntelliChlor cell unit has been installed, connect the cell power cable
to EasyTouch load center.
To connect the IntelliChlor power cable to the EasyTouch load center:
1. Align the four pins of the IntelliChlor cell power connector with the socket on the bottom of
the EasyTouch load center enclosure and insert the connector into the socket.
2. Rotate the socket nut until it locks the connector in place. Do not over tighten the nut (hand
tighten only).

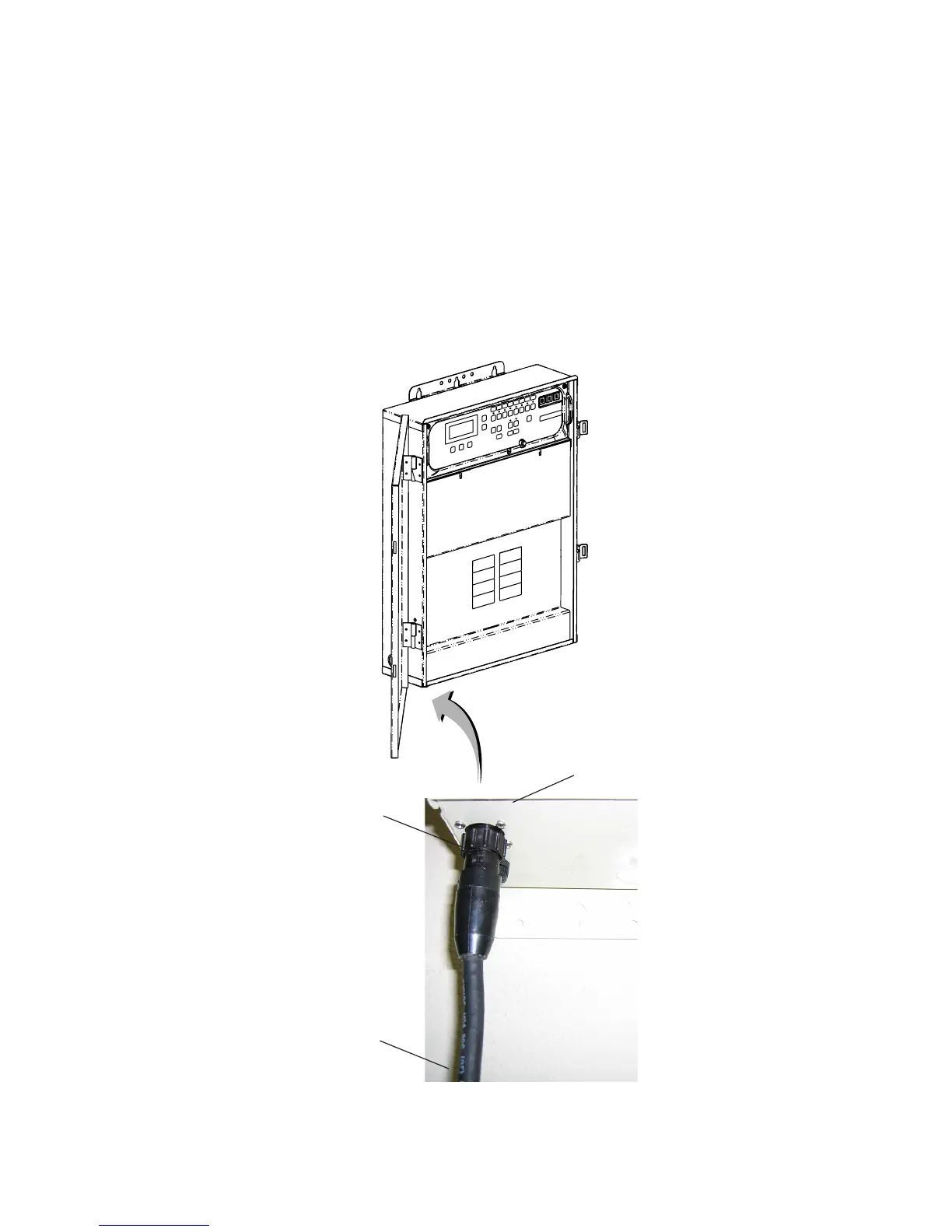

Connector socket nut
To IntelliChlor cell
Lower left corner of
EasyTouch load center
