IntelliBrite Controller Installation and User’s Guide
6

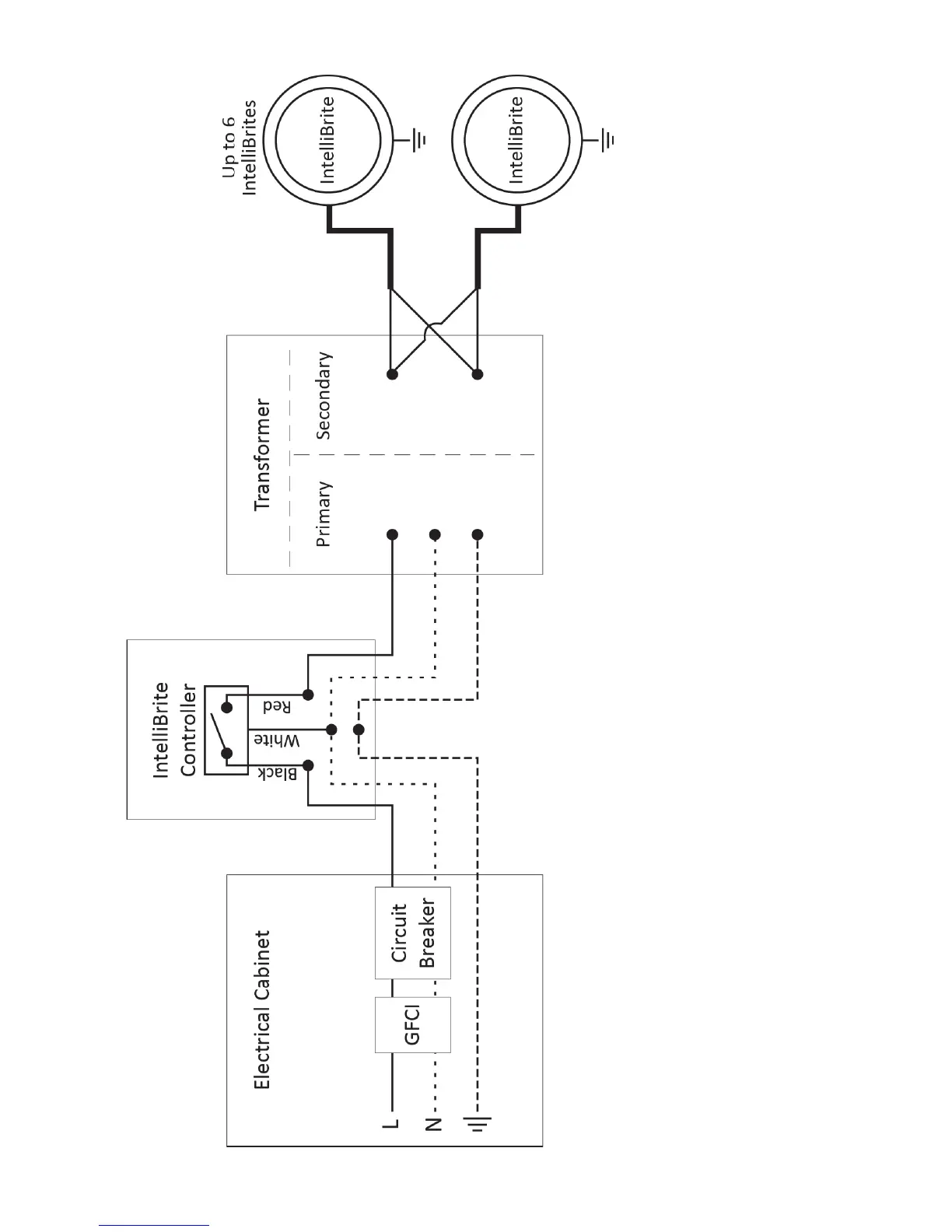

IntelliBrite Controller System Wiring Diagram
IMPORTANT! When installing 12 VAC IntelliBrite LED and Landscape lights,
connect the lights to the secondary 12 VAC output of the step down transformer,
then connect the IntelliBrite controller to the 120 VAC primary input of the step
down transformer.
120 VAC
120 VAC

Table of Contents

Other manuals for Pentair IntelliBrite

Preview: User And Installation Guide
User And Installation Guide16 pages
Preview: Installation Guide
Installation Guide56 pages
Preview: Installation And User Guide
Installation And User Guide16 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Pentair IntelliBrite and is the answer not in the manual?

Pentair IntelliBrite Specifications

General IconGeneral
Housing MaterialPolymer
Lens MaterialPolycarbonate
IP RatingIP68
Color OptionsMultiple
Wattage40W
Voltage12V or 12 VAC
ControlAutomation System
InstallationIn-ground Pool
Lifespan30, 000+ hours
TypeLED Pool Light
Light ColorColor changing
