IntelliBrite Controller Installation and User’s Guide
7
1. Neatly arrange the wires in the back of the outlet box.
2. Align the Controller with the screw holes of the outlet box. Secure the
Controller to the outlet box with the two (2) retaining screws.
3. Close the front door of the Controller.

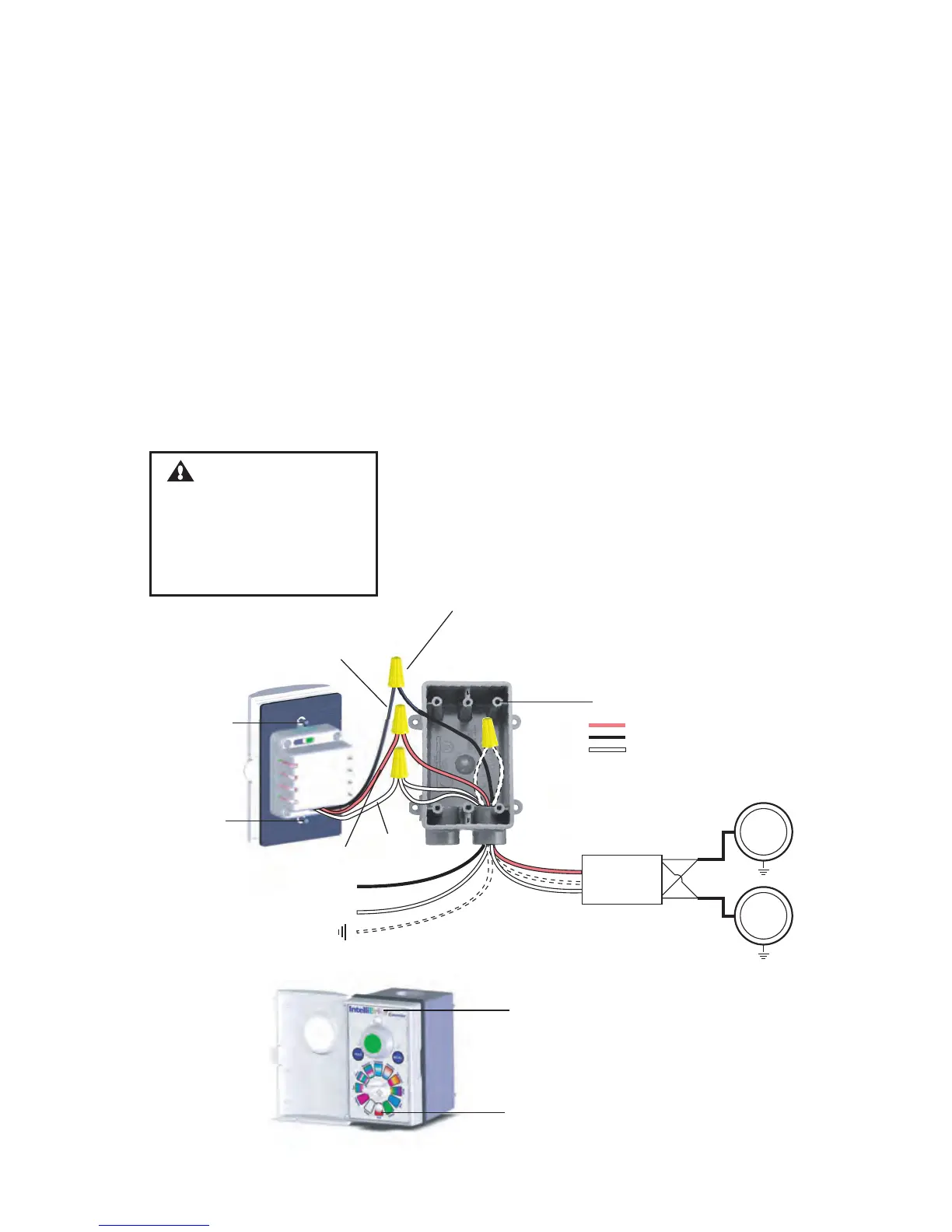

Installing the IntelliBrite Controller in the Outlet box
The IntelliBrite Controller mounts onto a standard outlet box (22.5 cubic inches
minimum). See page 3 for outlet box specifications.
After wiring the IntelliBrite Controller, check all wiring connections before
mounting the controller into the outlet box.
To install the IntelliBrite Controller:
PRINTED ON: 7/29/2009, 600054_ctlg pics.SLDASM
Retaining Screw
Retaining Screw
L
N
IntelliBrite
IntelliBrite
Transformer
Red
Black
White/Blue
Arrange wires
neatly behind
Controller
Retaining
Screw
Screw hole (X6)
Retaining
Screw
BLACK
RED
WHITE
CAUTION!
TO AVOID DAMAGE TO
CONTROLLER, CONNECT
RED WIRE ONLY TO
TRANSFORMER OR LIGHT
(LOAD) BLACK WIRE.

Pentair IntelliBrite Specifications

General

Housing Material	Polymer
Lens Material	Polycarbonate
IP Rating	IP68
Color Options	Multiple
Wattage	40W
Voltage	12V or 12 VAC
Control	Automation System
Installation	In-ground Pool
Lifespan	30, 000+ hours
Type	LED Pool Light
Light Color	Color changing
