IntelliBrite Controller Installation and User’s Guide
8
Using the IntelliBrite
®
Controller to control IntelliBrite
landscape LED lights
Using an IntelliBrite Controller (p/n 600054, sold separately) to operate the
IntelliBrite landscape LED lights makes it easy to dial in any of the various
color light shows or fixed color. The controller’s Hold and Recall buttons also
allows you to create endless unique lighting effects. The IntelliBrite Controller
can control individual or multiple IntelliBrite LED landscape lights. Multiple
IntelliBrite landscape lights can be connected via a junction box to the
IntelliBrite Controller so that all lights can be switched on and off together.
Maximum wattage when using multiple IntelliBrite LED lights
with the IntelliBrite Controller
When using multiple IntelliBrite LED lights, the total allowable light wattage is
300 Watts maximum. The following example combination of IntelliBrite LED
lights can be connected to the IntelliBrite Controller:
• Three (3) IntelliBrite LED pool lights (each light 35 Watt maximum)
• Two (2) IntelliBrite LED spa light (each light 18 Watt maximum)
• Eight (8) IntelliBrite LED landscape lights (each light 15 Watt maximum)

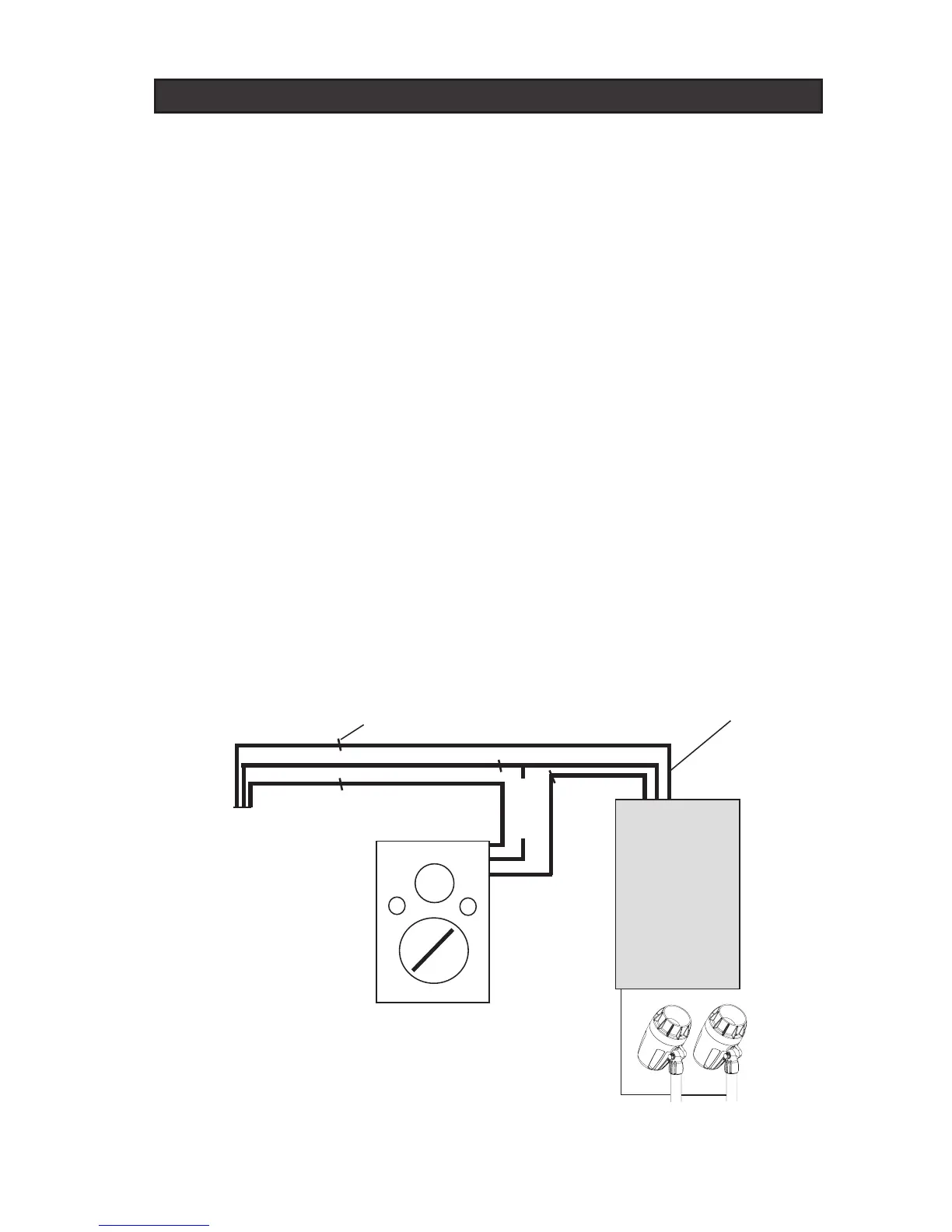

Wiring the IntelliBrite Controller to a 12 VAC Transformer
The following diagram shows how to connect the IntelilBrite LED lights to a 120
VAC wall outlet using a 12 Volt transformer.
WIRING INTELLIBRITE
®
LANDSCAPE LED LIGHTS
wire nut
IntelliBrite Controller
12 Volt
Transformer
(Pentair P/N
619963 (300
Watts) or
P/N 619962
(100 Watts)
GREEN
WHITE
BLACK
GREEN
WHITE
BLACK
RED
BLACK
WHITE
AC Power cord
IntelliBrite
Controller
120 VAC
from pool
panel circuit
breaker

Pentair IntelliBrite Specifications

General

Housing Material	Polymer
Lens Material	Polycarbonate
IP Rating	IP68
Color Options	Multiple
Wattage	40W
Voltage	12V or 12 VAC
Control	Automation System
Installation	In-ground Pool
Lifespan	30, 000+ hours
Type	LED Pool Light
Light Color	Color changing
