IntelliBrite Controller Installation and User’s Guide
1
IntelliBrite
®
Controller Overview
The IntelliBrite
®
Controller provides complete control of Pentair Aquatic
Systems IntelliBrite underwater LED (light-emitting diode) lights, and IntelliBrite
LED landscape lights. It’s easy to select a lighting feature, just dial in any
one of the pre-programmed color light shows or fixed colors. Using the Hold
and Recall buttons you can also create endless unique lighting effects. The
IntelliBrite Controller can control individual or multiple IntelliBrite LED lights.
Multiple IntelliBrite LED lights can be connected via a junction box to an
IntelliBrite Controller so that all lights can be switched on and off together.
IntelliBrite LED lights are fully compatible with Pentair IntelliTouch
®
and
EasyTouch
®
Control Systems. For more information about using IntelliBrite
lights with IntelliTouch systems, refer to the IntelliTouch User’s Guide (P/N
520102) and the EasyTouch User’s Guide (P/N 520584).

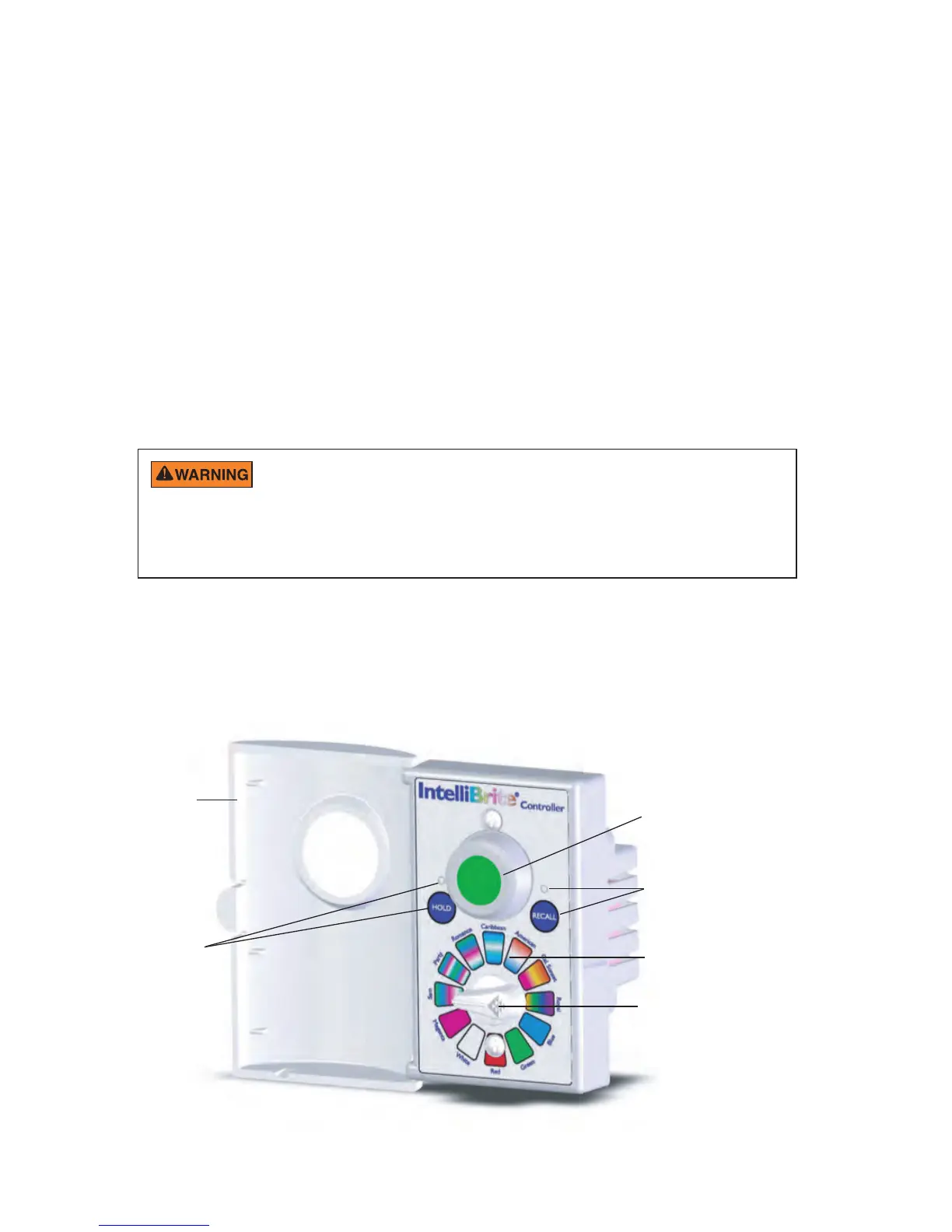

Controls and Buttons
The IntelliBrite Controller controls, buttons and LEDs are shown below:
PRINTED ON: 7/29/2009, 600054_ctlg pics.SLDASM
Power
ON/OFF Switch
RECALL button
and LED
Dial
(for selecting color
light shows and
fixed colors)
Color show
Selections
Door
HOLD
button
and
LED
IntelliBrite Controller
The IntelliBrite controller is a 120 VAC device, DO NOT connect
12 VAC IntellilBrite pool/spa LED lights or IntelliBrite LED
landscape lights directly to the IntelliBrite controller, use an appropriate step
down transformer between the controller and lights. For more information see
page 5 - 9.

Pentair IntelliBrite Specifications

General

Housing Material	Polymer
Lens Material	Polycarbonate
IP Rating	IP68
Color Options	Multiple
Wattage	40W
Voltage	12V or 12 VAC
Control	Automation System
Installation	In-ground Pool
Lifespan	30, 000+ hours
Type	LED Pool Light
Light Color	Color changing
