IntelliChlor Installation and User’s Guide

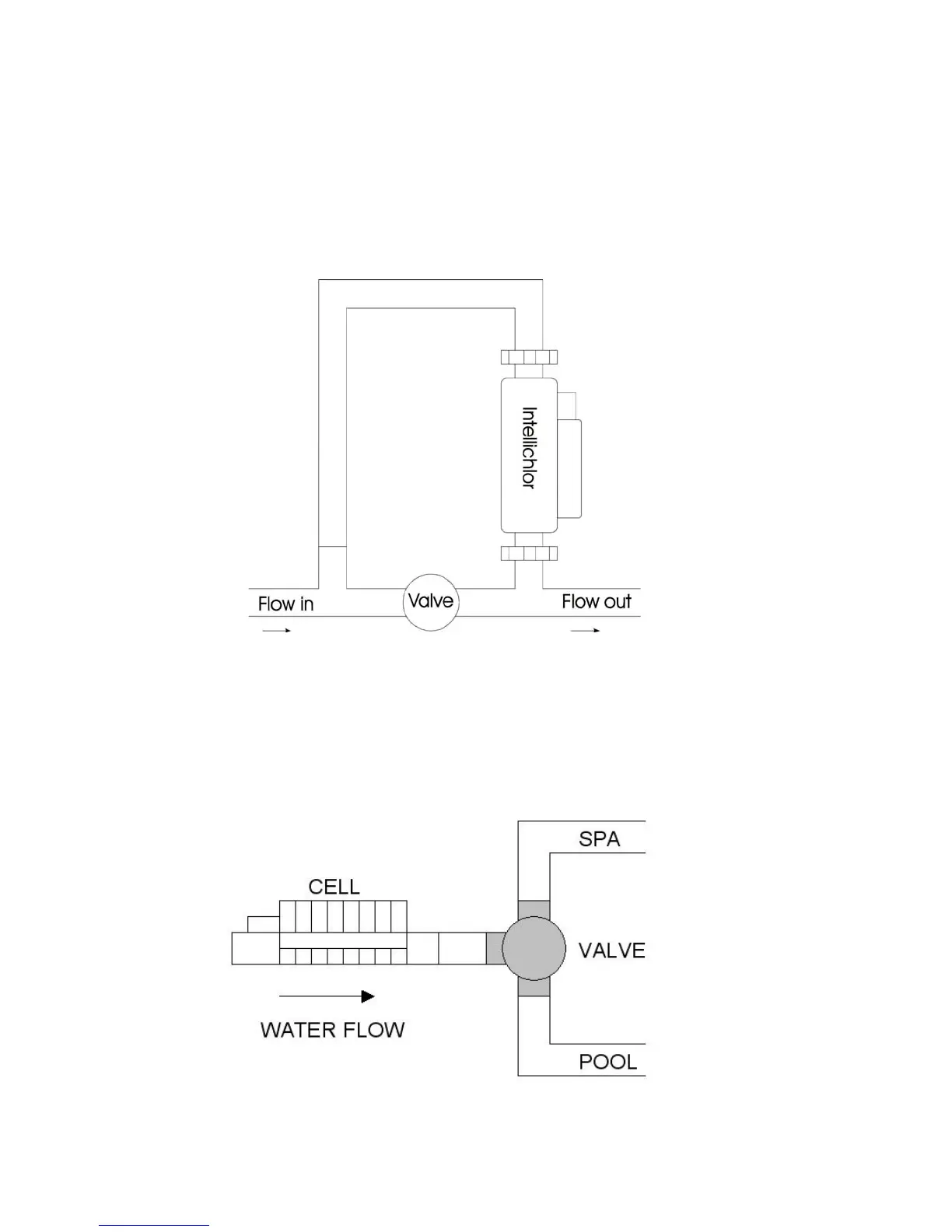

Loop Plumbing Diagram
The IntelliChlor will operate in water flow rates from 15 gallons per minute up to 110 gallons per minute (the
limit of 2” plumbing). For flow rates over 80 gallons per minute, it is recommend that you use a bypass loop
(shown below) for best chlorine production. Installations with flow rates over 80 gallons per minute are those
that have in-floor cleaning systems or boost pumps. These systems should use a bypass loop with the
IntelliChlor.
IntelliChlor Plumbing Diagram
Plumb the IntelliChlor cell AFTER the filter and heater. If installed on a pool/spa combination system, the
plumb the IntelliChlor cell BEFORE the pool/spa return valve to allow proper chlorination of both the pool and
spa. See diagram below.

Pentair IntelliChlor IC20 Specifications

General

Model	IntelliChlor IC20
Type	Salt Chlorine Generator
Pool Size	Up to 20, 000 gallons
Voltage	120/240 VAC
Power Supply	External Power Center
Flow Rate	Minimum 20 GPM
Water Temperature	50°F to 104°F (10°C to 40°C)
Cell Life	10, 000 hours
Warranty	3 years
Chlorine Output	0.7 lbs/day
