19
IntelliChlor Installation and User’s Guide
Connecting the Power Center to an IntelliTouch or EasyTouch System
To operate IntelliChlor with the IntelliTouch or EasyTouch system, connect a four wire cable from the
IntelliChlor Power Center to the IntelliTouch or EasyTouch load center. An alternate connection can be made
by splicing anywhere along the four wire connection that connects the IntelliTouch or EasyTouch indoor
control panel to the load center.
Note: For IntelliChlor operating instructions using the IntelliTouch system, see the “IntelliTouch User’s
Guide” (P/N 520102), or for the EasyTouch system, see the “EasyTouch User’s Guide” (P/N 520584).
To connect IntelliChlor Power Center four wire cable to the IntelliTouch or EasyTouch load center:
1. Remove the cover screw securing the Power Center cover. Remove the cover.
2. Run a UL approved four conductor cable (22 AWG) from the IntelliChlor Power Center to the Load
Center. The preferred wire color scheme is red, yellow, green, and black.
3. Remove the cover screw securing the Power Center cover. Remove the cover.
4. Remove one of the knockouts from the underside of the Power Center.
5. Route the four conductor cable up through the lower hole.
6. Strip back the cable conductors ¼ in. Insert the wires into the screw terminals (provided in the kit).
Secure the wires with the screws. Make sure to match the color coding of the wires; Red = +15,
Yellow = +DT, Green = -DT, and GND = Black.
7. Plug the screw terminal onto the four pins located on the Power Center board.
8. Reinstall the cover and secure with the cover screw.
9. Proceed to “Connecting IntelliChlor to an IntelliTouch System,” on page 20 or “Connecting
IntelliChlor to an EasyTouch System,” on page 21.

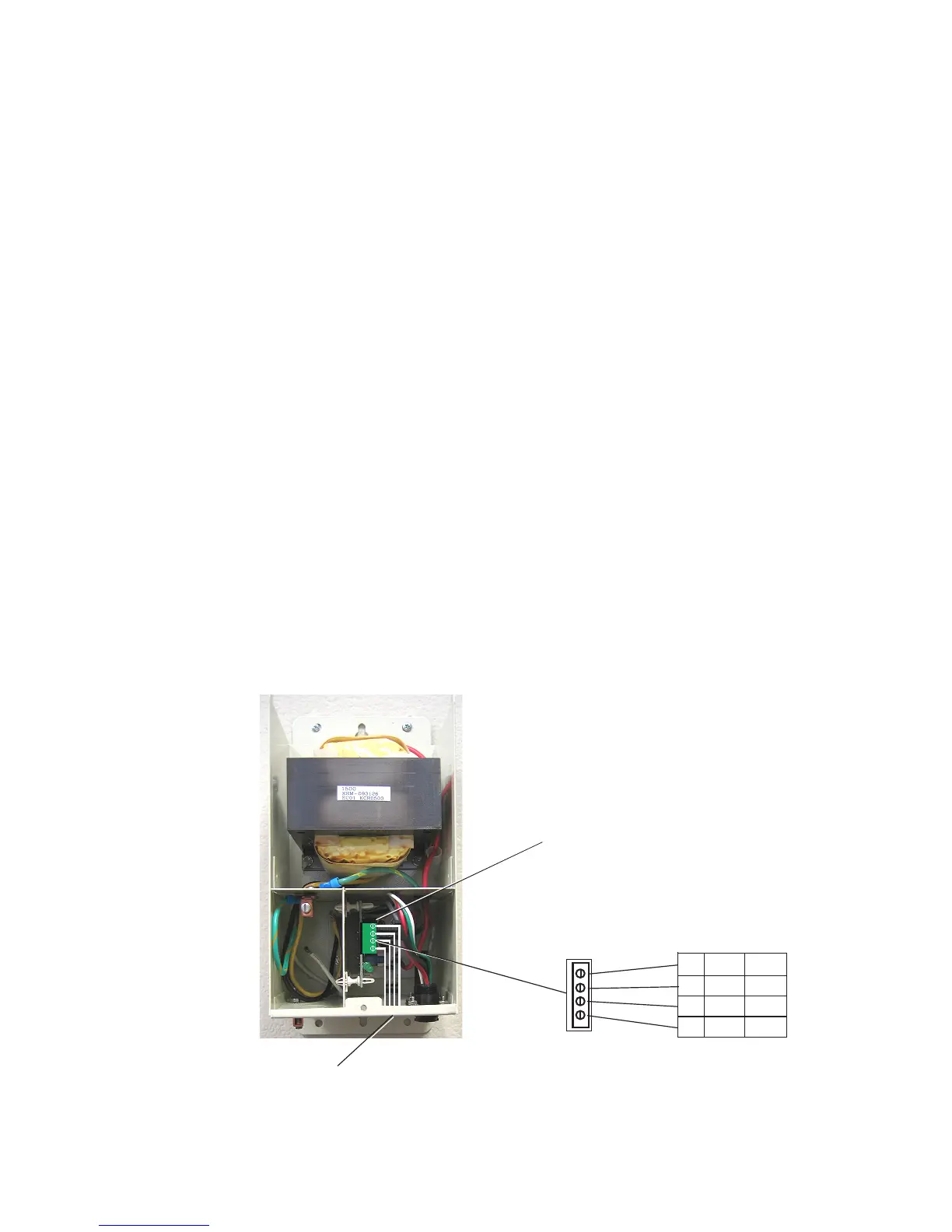

Conduit knockout
Screw terminal
IntelliChlor Power Center (cover removed)
Screw terminal
pin-outs
1DNGKLB
2TD-NRG
3TD+LEY
4V51DER
To Next Page
