3
IntelliChlor Installation and Users Guide

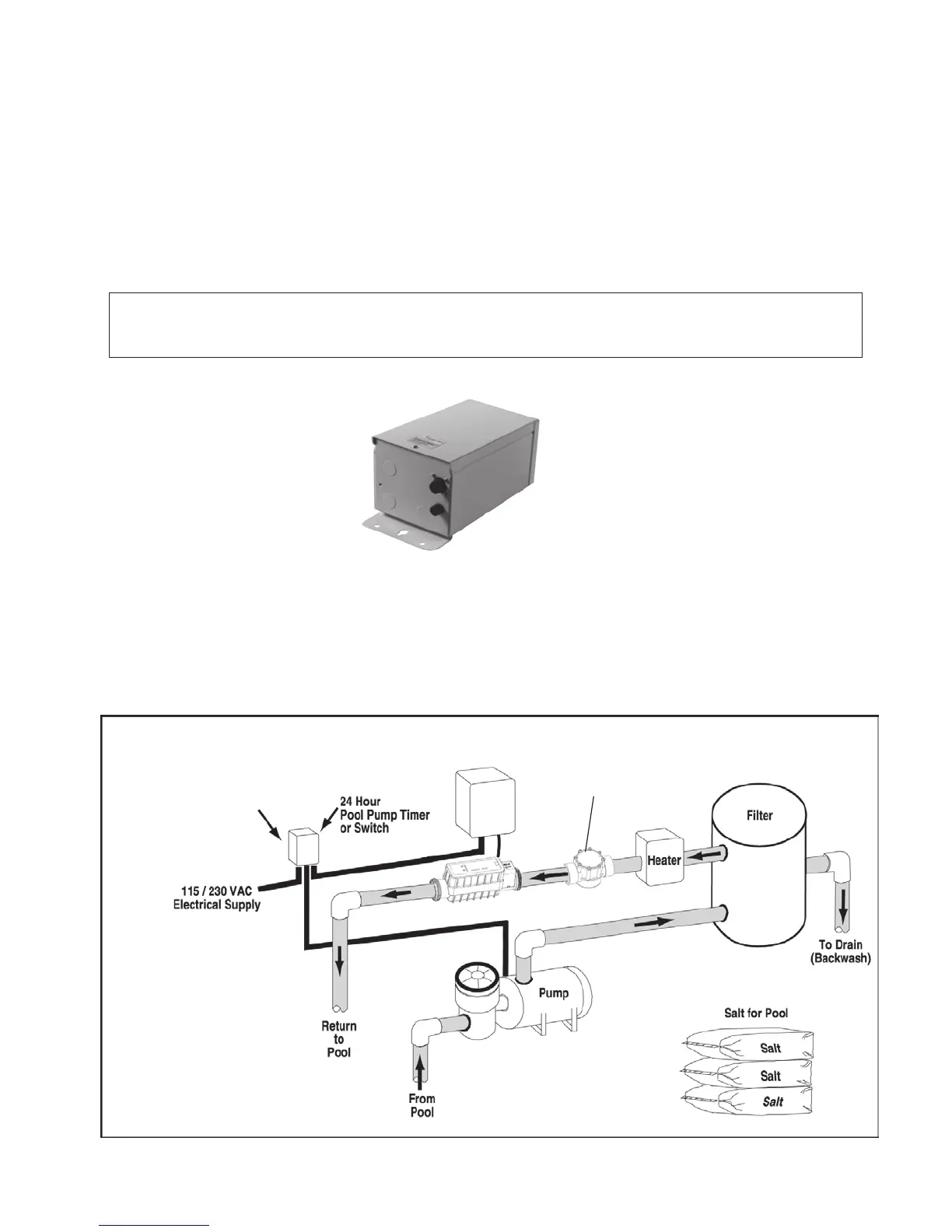

IntelliChlor Power Center
The Power Center converts AC electrical current to a low voltage DC current which is required by the cell to
perform the electrolysis. The power supply is connected with the pool circulation pump electrical source so
that the electrolytic cell only operates when the pool pump is on. The enclosure can be mounted vertically on
the wall up to 15 feet away from the cell controller. The Power Center contains the transformer, fuse,
connector to the cell and the 110 VAC and 220 VAC wiring configuration with the 36 VDC output cable to the
cell controller. A fuse holder is mounted on the bottom of this enclosure for additional protection. There are no
other controls or lights on the unit. For more information about the Power Center, see the “IntelliChlor Power
Center Installation Guide,” (P/N 520590).
IMPORTANT:
Before plugging or unplugging the IntelliChlor cell to the Power Center, first switch off
the AC power to the Power Center, either by switching off the filter pump or setting the associated
circuit breaker to OFF.
System Diagram
The following diagram shows the IntelliChlor system functionality. It is recommended to install a two inch
check valve between the input side of the IntelliChlor cell and the main heater output pipe.
Power Center (Model PC 100)
Pool pump and
Power Center MUST
be wired to switch
on and switch off
together
Power Center
Pentair two inch Check
Valve (recommended)
(P/N 263042)

Other manuals for Pentair IntelliChlor IC20

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Pentair IntelliChlor IC20 and is the answer not in the manual?

Pentair IntelliChlor IC20 Specifications

General IconGeneral
ModelIntelliChlor IC20
TypeSalt Chlorine Generator
Pool SizeUp to 20, 000 gallons
Voltage120/240 VAC
Power SupplyExternal Power Center
Flow RateMinimum 20 GPM
Water Temperature50°F to 104°F (10°C to 40°C)
Cell Life10, 000 hours
Warranty3 years
Chlorine Output0.7 lbs/day
