SPACOMMAND
®
Spa-Side Remote Installation and User’s Guide
Step 3: Connecting the SpaCommand
®
Spa-Side Remote
See “Wiring the SpaCommand Spa-Side remote to the EasyTouch® Automation load
center, on page 15.
See “Wiring the SpaCommand Spa-Side remote to the IntelliTouch
®
Automation load
center, on page 15.
14

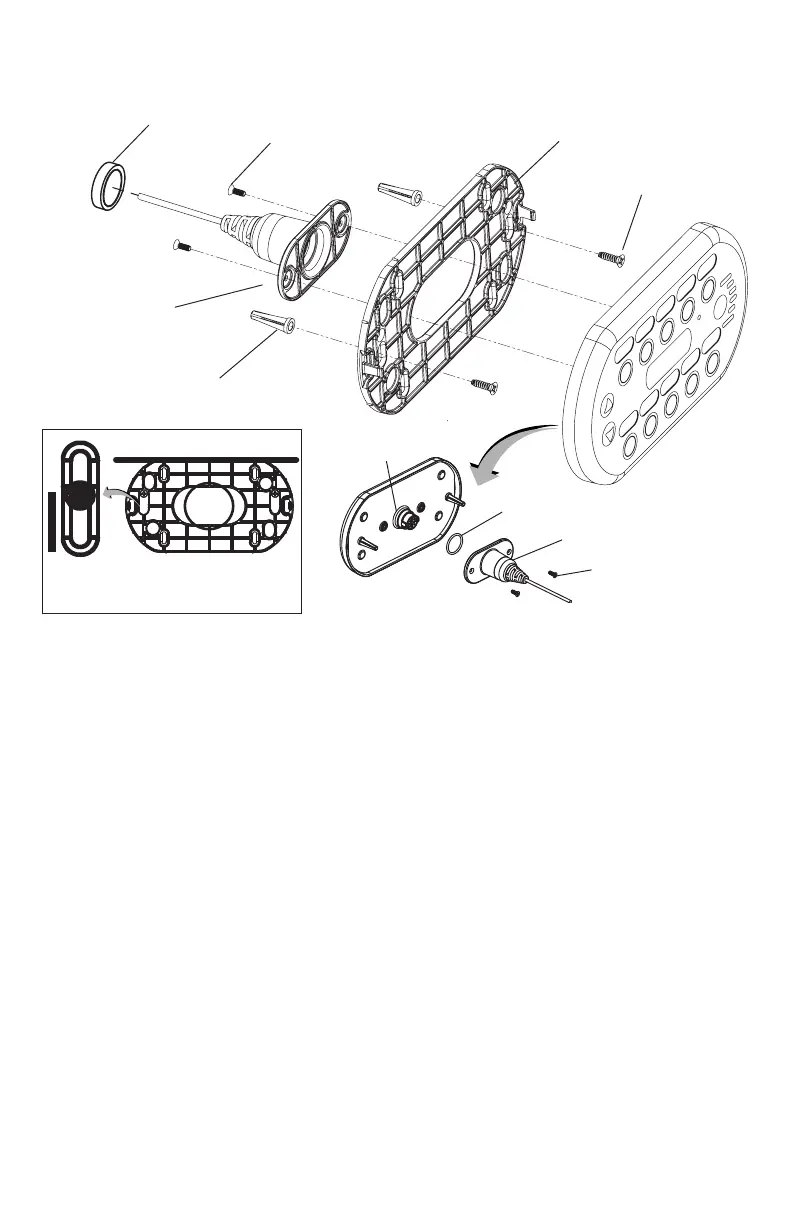

Conduit
Cable
connector
Bracket
Remote (rear view)
O-RING
Screw (x2)
Connector (keyed)
Screw (x2)
Remote
(front panel)
Screw (x2)
Plastic anchor (x 2)
Socket
Spa wall coping
Use slots for vertical
bracket positioning
