SPACOMMAND
®
Spa-Side Remote Installation and User’s Guide
15
The SpaCommand
®
Spa-Side remote is connected to the EasyTouch
®
and IntelliTouch
®
Control System via an RS-485 four wire communication cable.
To connect the SpaCommand spa-side remote communication cable to EasyTouch and
IntelliTouch control system load center:
1.
2. Unlatch the load center front door spring latches, and open the front door.
3. Remove the two screws securing the high voltage front cover panel, and
remove it from the enclosure (illustration below shows panel removed).
4. Loosen the two control panel access screws and fold down the outdoor
control panel.

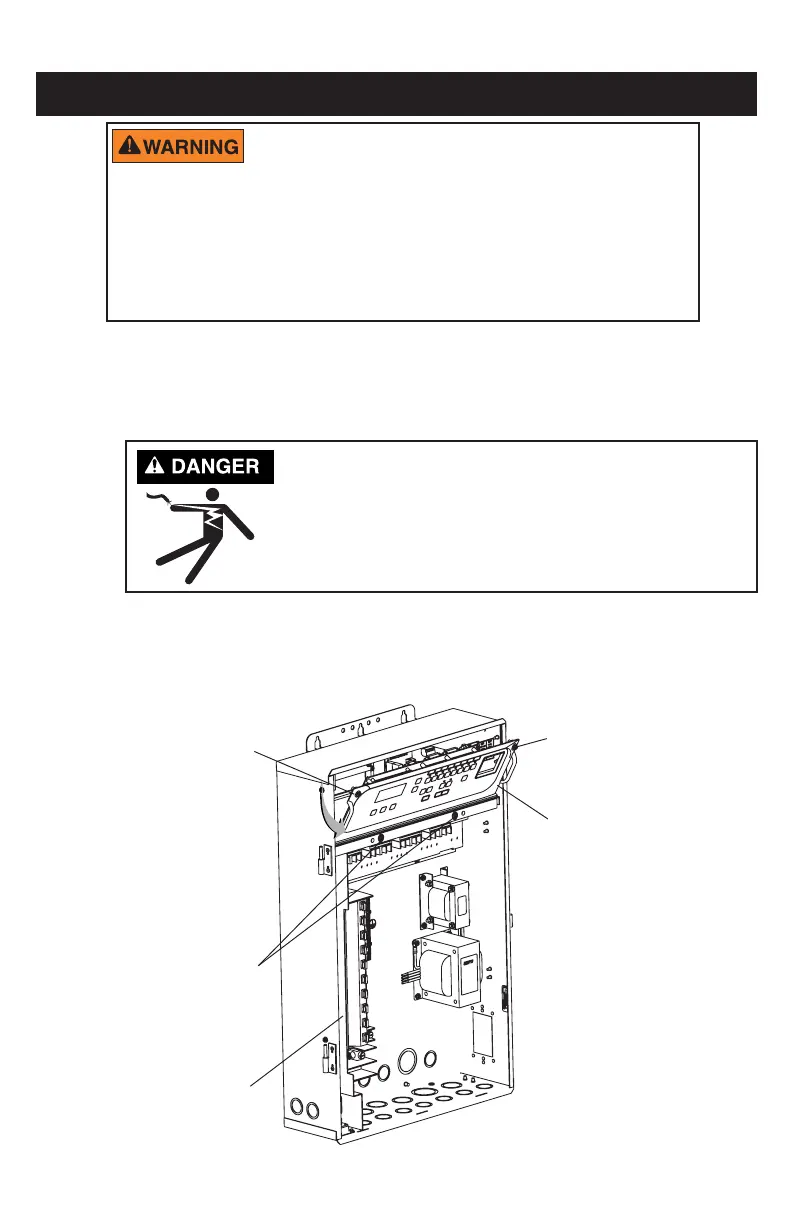

WIRING THE REMOTE TO THE AUTOMATION LOAD CENTER
All electrical installation, including electrical wiring
methods and materials used to complete the electrical
installation of the EasyTouch and IntelliTouch Pool/Spa control system
MUST BE PERFORMED BY A SERVICE PROFESSIONAL AND/OR
UNDER DIRECT SUPERVISION OF A QUALIFIED ELECTRICIAN in
accordance with the current National Electrical Code or the Canadian
Electric Code, as well as any current local electrical codes in effect at the
time of installation. Refer to NEC 680-21 (b) or CEC 687-060, 062, and
066 for further details.
Switch OFF the power to the load center at the main
circuit breaker before removing the High Voltage
Cover Panel. Failure to do so could result in personal
injury and/or death. Shorting wires may permanently
damage unit. Close all panels and load center front door
when remote installation is complete.
Retaining screw
Run wire up low
voltage raceway
to main circuit
board
Control panel
(fold down to
access COM
port on circuit
board)
Retaining
screw
Retaining screws
(High voltage
front cover pane
shown removed)
To Next Page
