Preparation and inspection
3
█
Attachment of the inlet seal (OF - B190 or OF - B215 (option))
1. Attach the inlet seal (OF - B190 or OF - B215 (option)) to the instrument channel inlet.

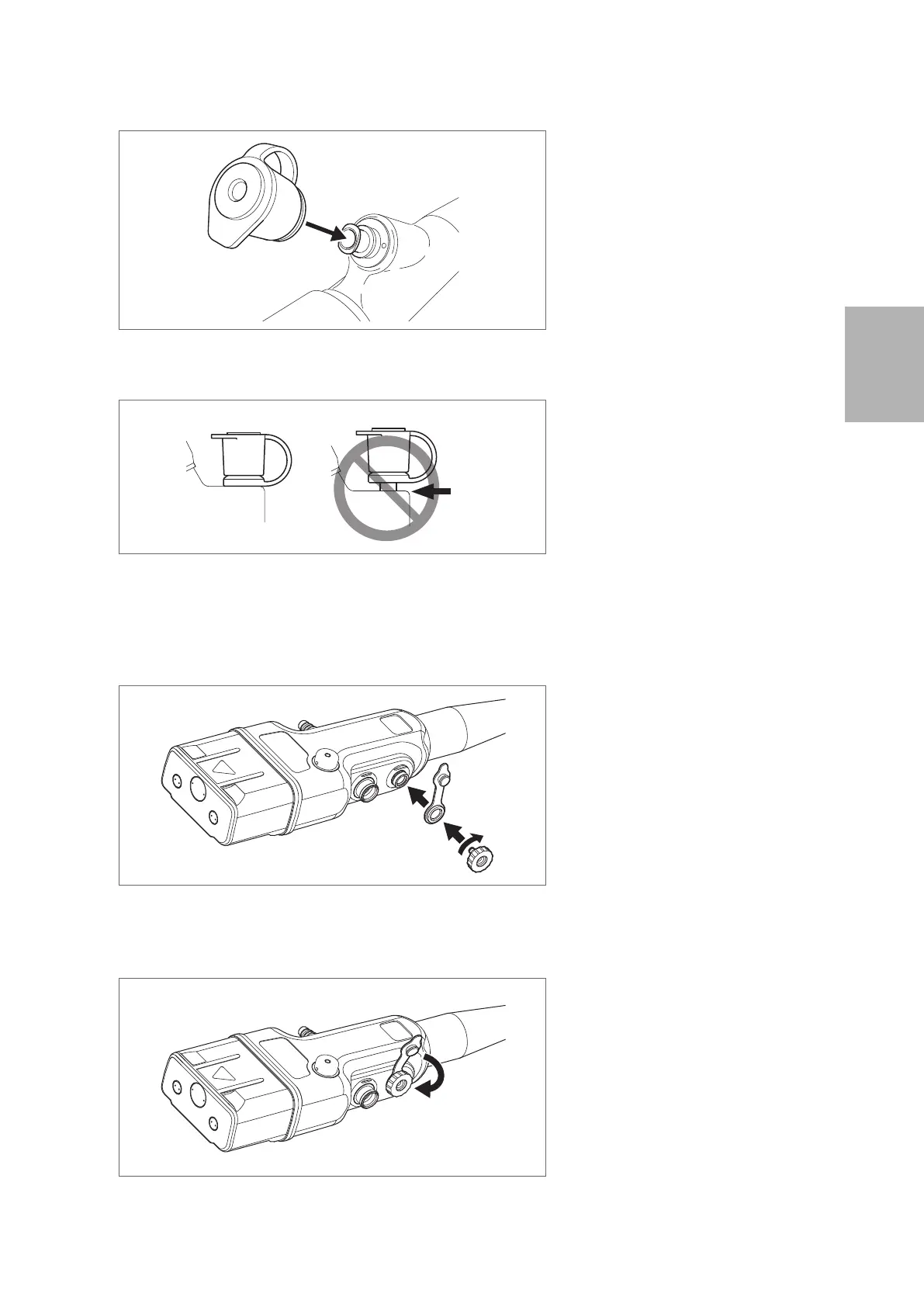

Figure 3.37
2. Ensure that the inlet seal is tightly attached to the instrument channel inlet without gaps.
Correct
Incorrect
Gap
Figure 3.38
█
Attachment of the water jet check valve adapter (OE - C12) and water jet connector cap (OF - B118)
1. Attach the water jet connector cap (OF - B118) and water jet check valve adapter (OE- C12) to the
water jet port of the endoscope.
Figure 3.39
2. Ensure that the water jet check valve adapter is fi rmly attached to the water jet port without gaps.
(Close the lid of the water jet connector cap.)
Figure 3.40
