Preparation and inspection
3
3. Connect the suction tube of the suction source to the suction nipple of the endoscope.

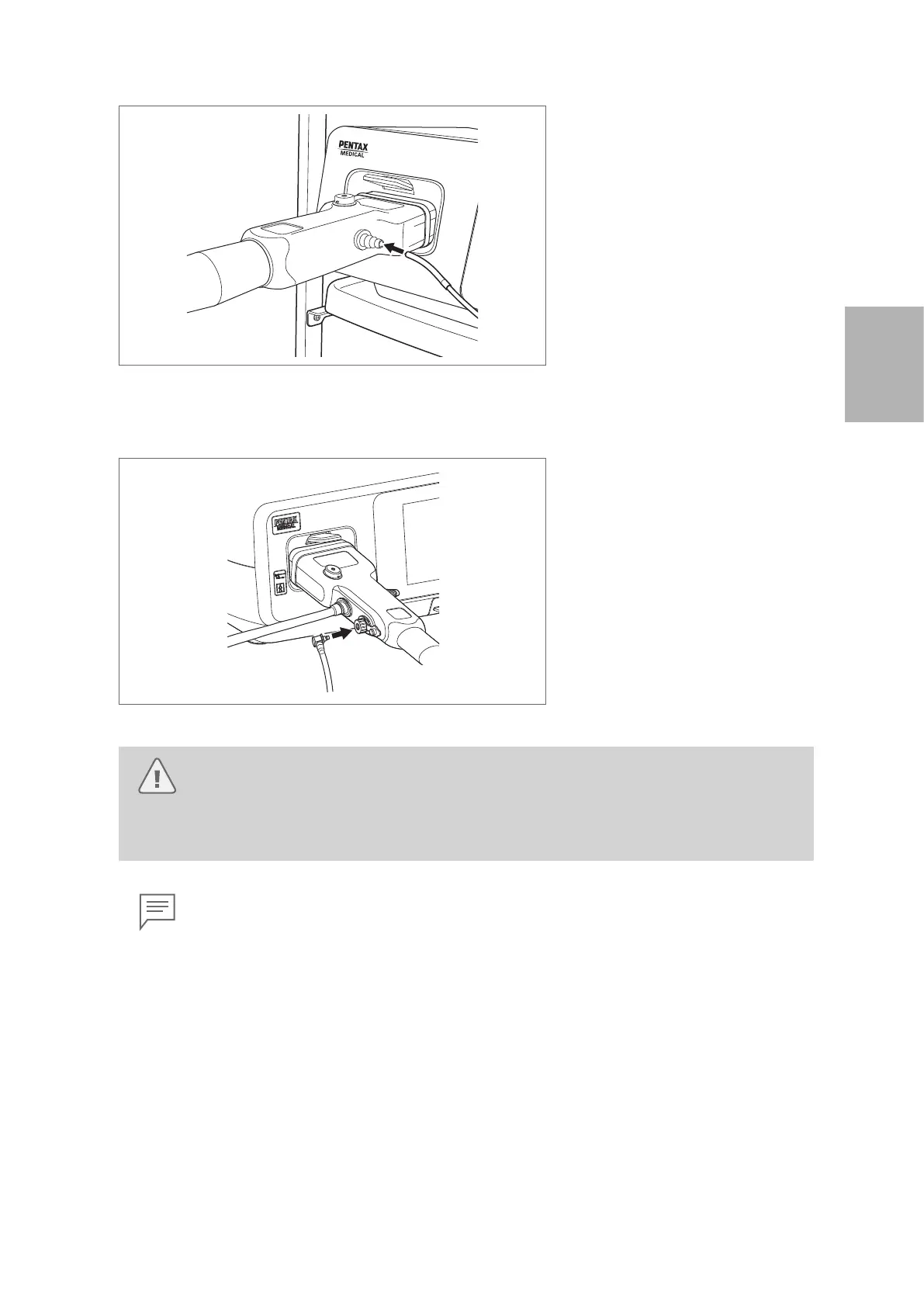

Figure 3.43
4. Remove the lid of the water jet connector cap (OF - B118) and push the irrigation tube (OF - B113)
into the water jet check valve adapter (OE - C12) until it clicks.
Figure 3.44
Caution
Do NOT orient the irrigation tube (OF- B113) at an angle when attaching it to or removing it
from the water jet check valve adapter (OE - C12). Doing so may break the irrigation tube.
Note
Do not use the irrigation tube (OF - B113) if you have any difficulty in attaching it, or if you do
not feel it clicking into place when attaching it to the endoscope. The use of damaged luer
connector may result in water leakage from the connected part or tube disconnection.
