Pentax SF10 - Infrared Index; EYECUP Fb

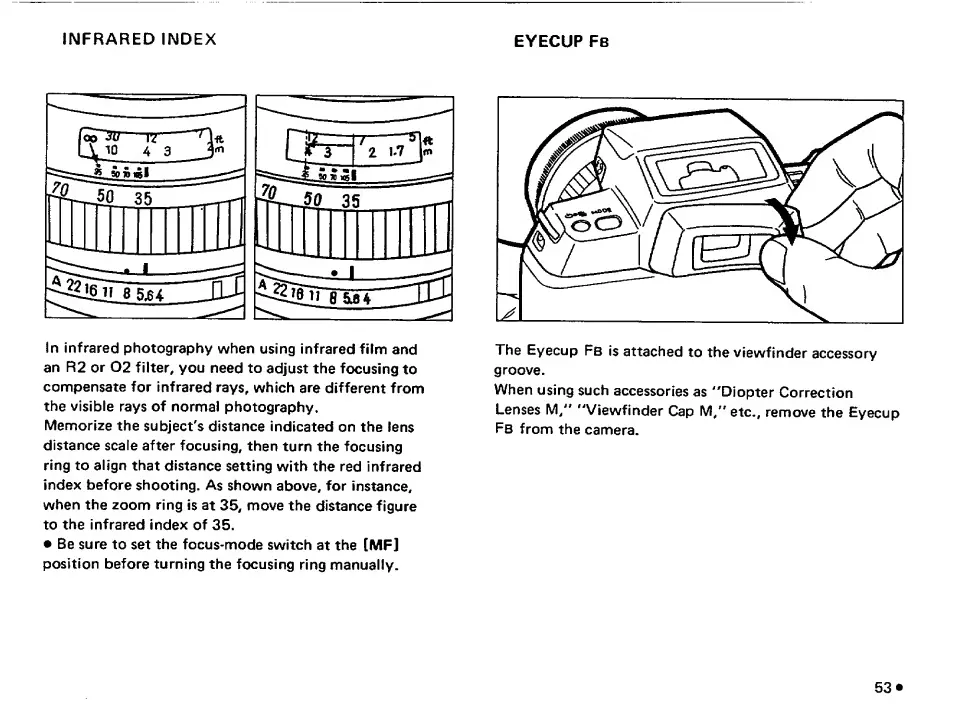

INFRARED INDEX
In infrared photography when using infrared film and
an R2 or 02 filter, you need to adjust the focusing to
compensate for infrared rays, which are different from
the visible rays of normal photography.
Memorize the subject's distance indicated on the lens
distance scale after focusing, then turn the focusing
ring to align that distance setting with the red infrared
index before shooting. As shown above, for instance,
when the zoom ring is at 35, move the distance figure
to the infrared index of 35.
• Be sure to set the focus-mode switch at the [MF]
position before turning the focusing ring manually.
EYECUP Fb
The Eyecup Fb is attached to the viewfinder accessory
groove.
When using such accessories as "Diopter Correction
Lenses M," "Viewfinder Cap M," etc., remove the Eyecup
Fb from the camera.
53 •
