Absolute rotary encoder P**58

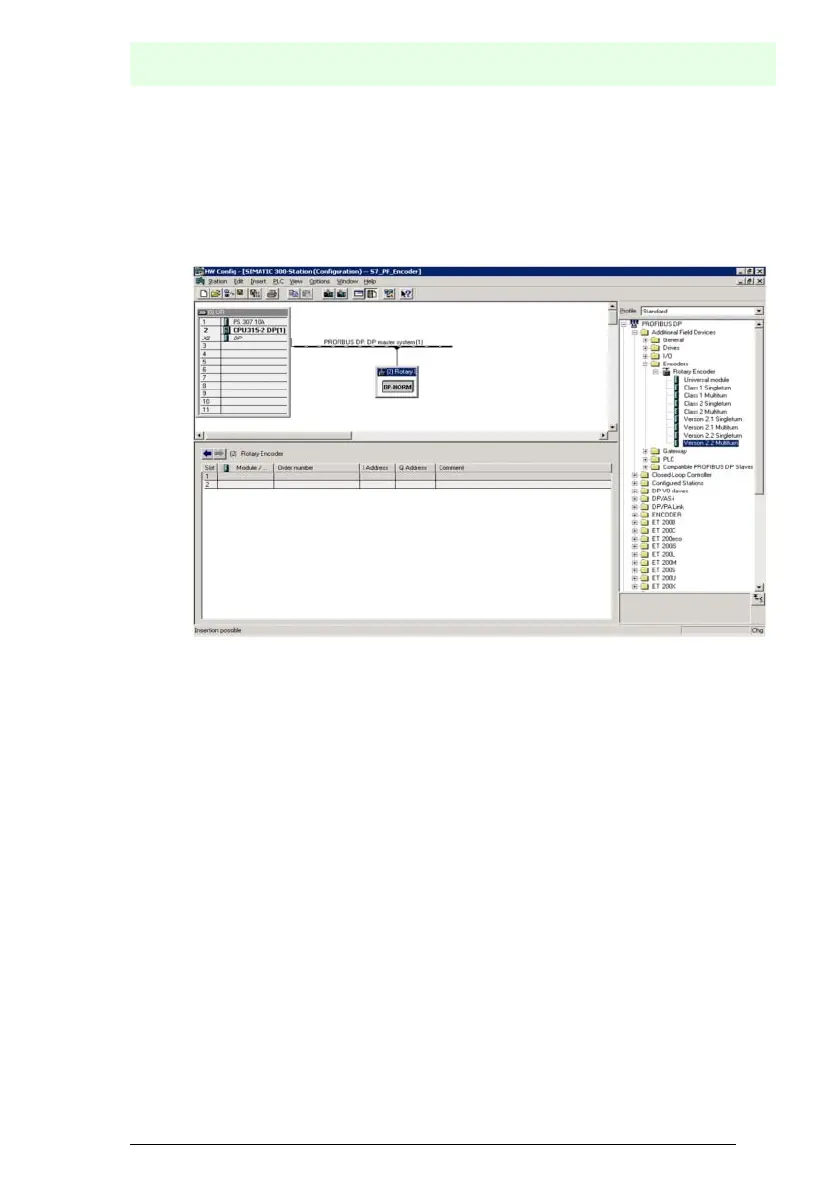

Sample configuration
Subject to reasonable modifications due to technical advances. Copyright Pepperl+Fuchs, Printed in Germany
Pepperl+Fuchs Group • Tel.: Germany +49 621 776-0 • USA +1 330 4253555 • Singapore +65 67799091 • Internet http://www.pepperl-fuchs.com
Date of issue 01/15/04
33
7.3 Selecting the device class
As described in section 3, the functionality of the device depends on which encoder
class is selected. After the device has been inserted into the PROFIBUS network as
described above, the desired device class can then be selected. To do this, drag one
of the modules listed in the hardware catalogue under "Rotary encoders" to mounting
station 1 using Drag and Drop (Table in the lower part of the station window):
