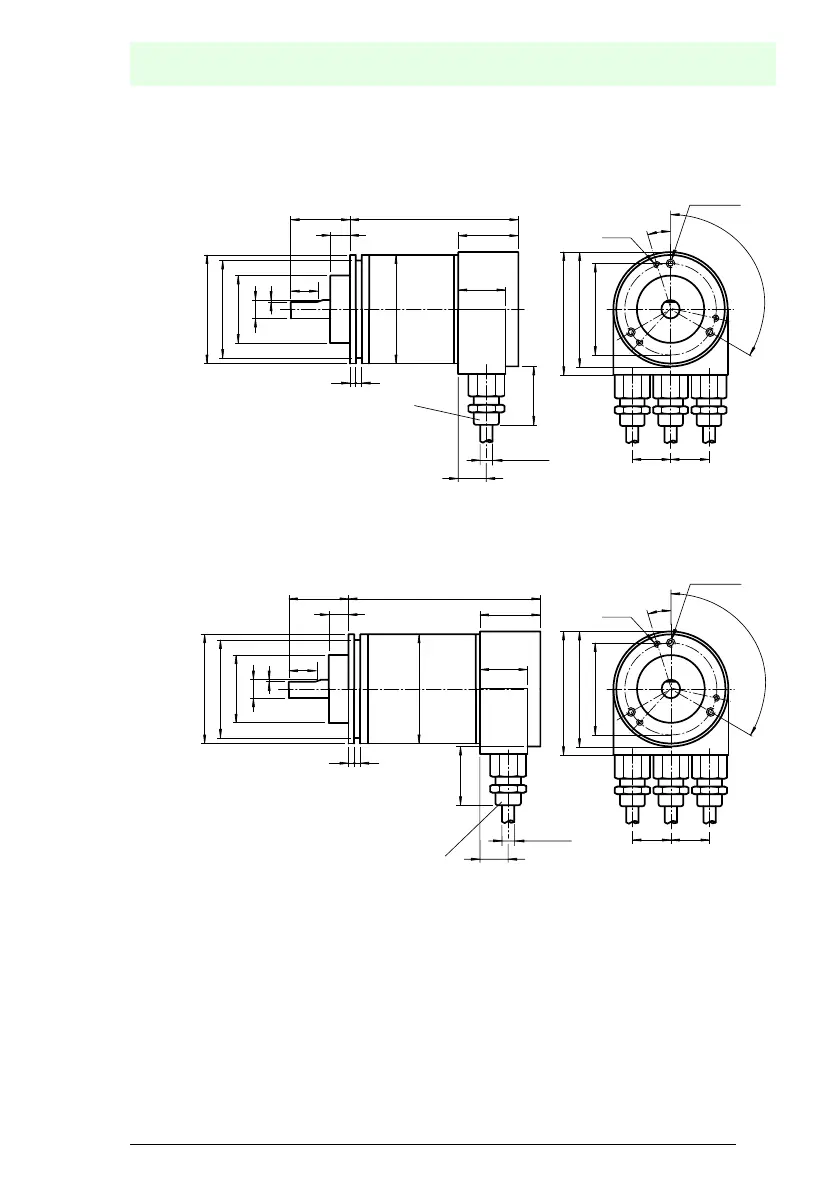

8.4.2 Rotary encoder with clamp flange
Singleturn design
Multiturn design
Cable gland PG9, radial
Clamping flange
3 x M4
6 deep
3 x M3
6 deep
23
30
~32
ø59
10
30 82
ø58 ø53
ø36f7
1
ø10h8
3 3
ø60
ø48
18
63.5
15
ø5.5 ... ø9
20 20
3 x 120˚
15˚
Cable gland PG9, radial
Clamping flange
3 x M4
6 deep
3 x M3
6 deep
23
30
~32
ø59
10
30 92
ø58 ø53
ø36f7
1
ø10h8
3 3
ø60
ø48
18
63.5
15
ø5.5 ... ø9
20 20
3 x 120˚
15˚
