Pepperl+Fuchs VBP-HH1-V3.0 User Manual

2013-06
10
VBP-HH1-V3.0*
Product Description

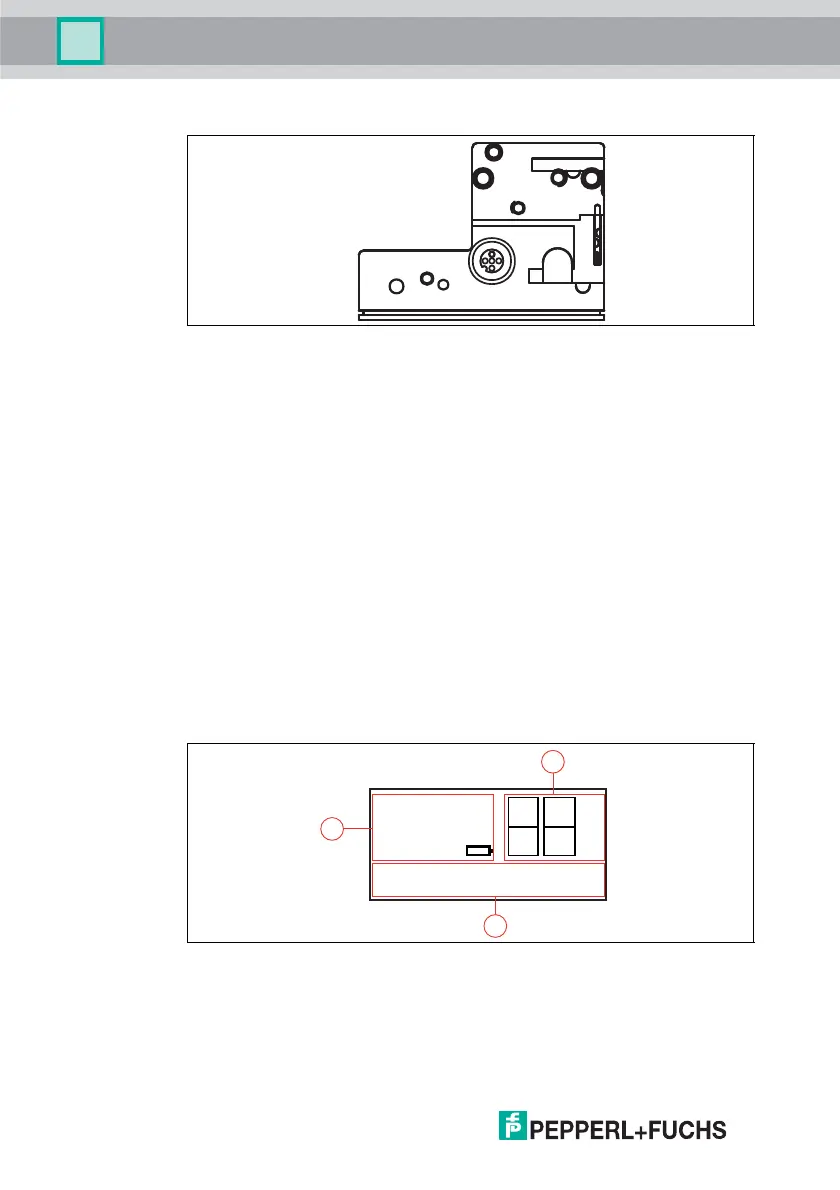

4.4.1 AS-Interface-Anschlussadapter
Figure 4.2
The AS-Interface connection adapter on the top of the addressing device is used
to connect AS-Interface nodes (sensors, actuators, and interface modules) to the
addressing device. The following devices and models can be connected directly
to the addressing device by plugging into the AS-Interface connecting adapter:
■ Devices with M12 plug
■ VariKont M-System
■ VariKont-System
■ FP models
■ AS-Interface modules (*-G1, *-G4, *-G16)
For models with an integrated addressing jack, please use the VAZ-PK-1.5M-V1-
G adapter cable.
The addressing device supplies the connected AS-Interface node with up to 28 V
voltage (25 V  100 mA). If this voltage is not sufficient, you have the option of
using an external power supply for the AS-Interface node. In this case, the internal
power supply is cut off by the addressing device.
4.4.2 LC display
1 Address and data display
2 Address field
3 Operating mode display
ADDR
ID12
IO
DATA
PARA
PERI
RD
WR
A
B
1 2 3 4 5 6 7 8 9 10 11 12 13 14 16 16 17
18 19 20 21 22 23 24 25 26 27 28 29 30 31
A
B
3
1
2
