Peri MULTIFLEX - Assembly Aids

12

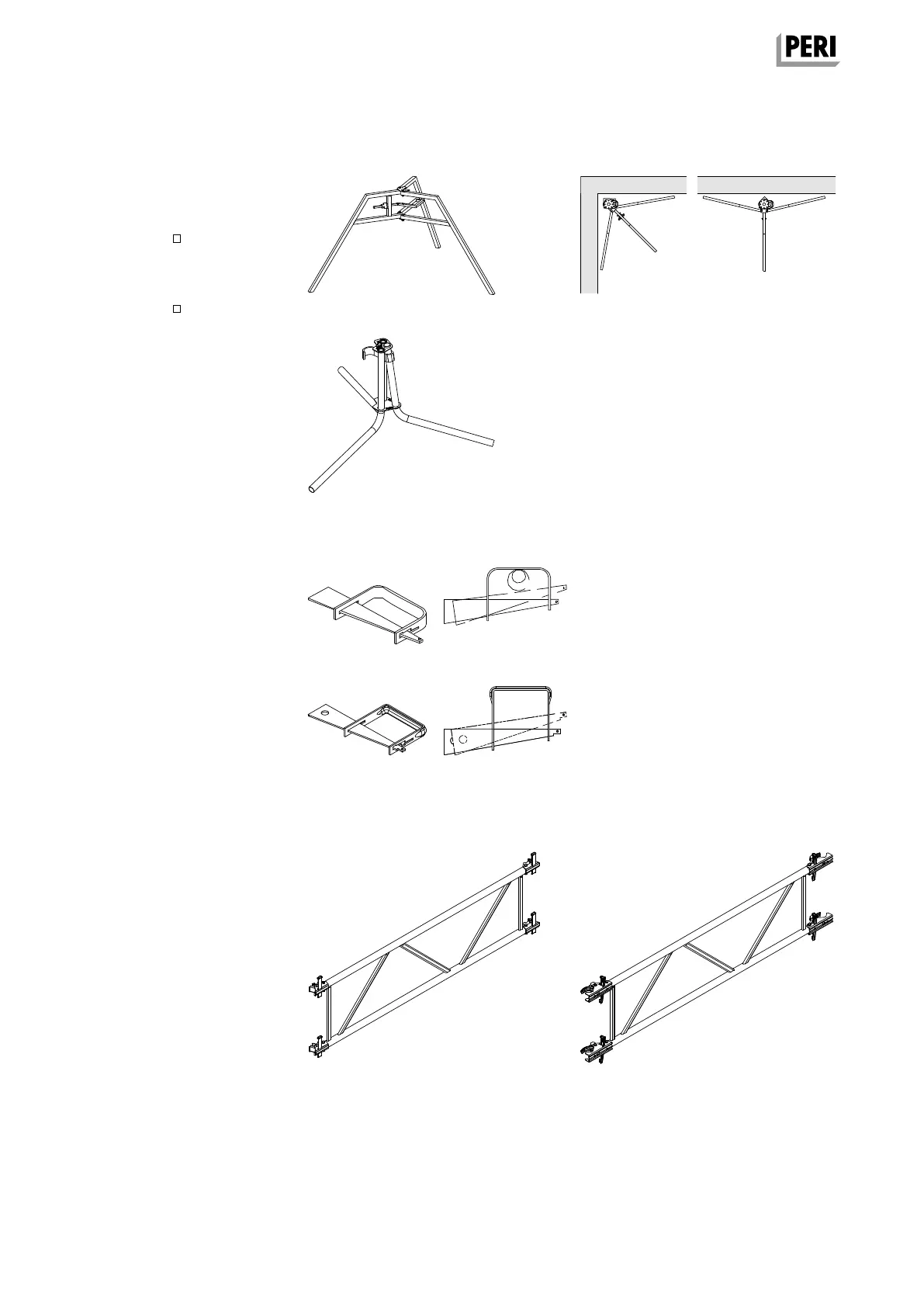

Assembly aids
Universal Tripod
For slab props Ø 48 –
120 mm.
(Fig. A2.04a)
Tripod PEP Ergo
For slab props Ø 44 –
64 mm.
(Fig. A2.04b)
Through the swivel foot design, they can
also be positioned in corners or against
straight walls.
Brace Clamp
For assembling the diagonal bracing
with boards.
– For slab props Ø 48 - 76 mm.
(Fig. A2.05a)
– For slab props Ø 76 - 89 mm,
and 100 mm x 100 mm
up to 120 mm x 120 mm.
(Fig. A2.05b)
Fig. A2.04a
Fig. A2.04b
Fig. A2.05a
Fig. A2.05b
Fig. A2.06 Fig. A2.07
MULTIPROP Frame MRK
For bracing PERI MULTIPROP props.
(Fig. A2.06)
PEP Frames PRK
For bracing PERI PEP props.
(Fig. A2.07)
A2 Components
MULTIFLEX Girder Slab Formwork
Assembly Instructions for Standard Configuration
