Peri MULTIFLEX - Crossheads, Clawheads, and Bolts

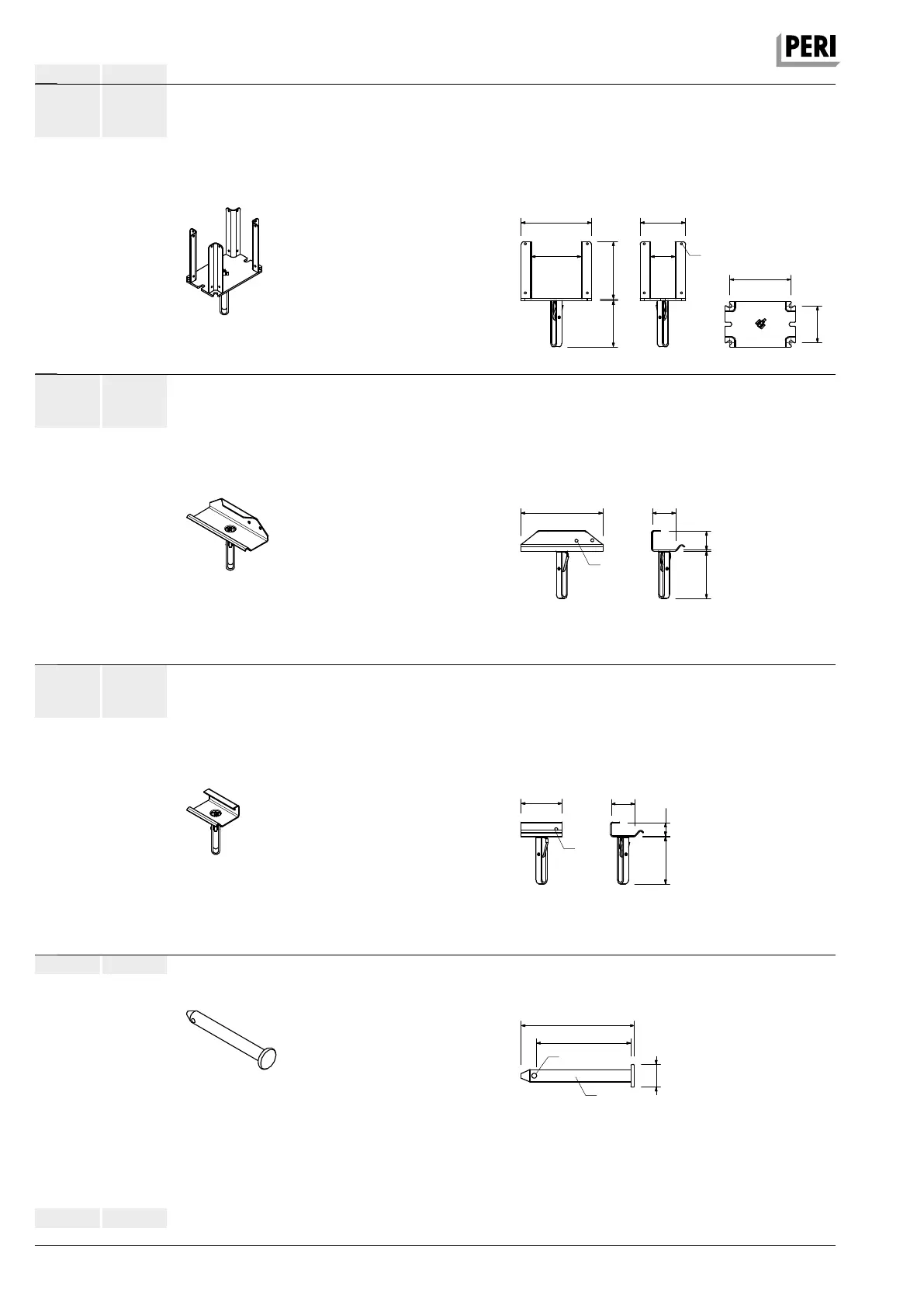

MULTIFLEX Girder Slab Formwork
50
Item no. Weight kg
027990 0.150 Bolt Ø 14 x 107, galv.
For different connections.
107
129
2
6
Ø
Ø14

018060 0.030
Accessories
Cotter Pin 4/1, galv.
028660
028670
1.040
0.936
Clawheads 16/20, galv.
Clawhead 16/20 S, galv.
Clawhead 16/20, galv.
With or without self-locking coupling.
For positioning intermediate props on the VT 20
girder without nailing.
Note
Required hole diameter of the prop end plate
Ø 40 mm.
140
Ø10
4
4
3
1
6
1
80
028890
028880
1.650
1.540
Clawheads 24, galv.
Clawhead 24 S, galv.
Clawhead 24, galv.
With or without self-locking coupling. For posi-
tioning intermediate props on the GT 24 Girder
without nailing.
Note
Required hole diameter of the prop end plate
Ø 40 mm.
280
6
4
1
6
1
3
Ø10
80
028680
027890
3.190
3.080
Crossheads 20/24, galv.
Crosshead 20/24 S, galv.
Crosshead 20/24, galv.
With or without self-locking coupling.
For tilt-resistant support of one or two GT 24 or
VT 20 Girders.
Note
Required hole diameter of the prop end plate
Ø 40 mm.
Girder overlap on both sides minimum 16.3 cm for
GT 24 and 15 cm for VT 20.
240 
170 
1
9

1

8
6
210
1
2


