NOTE:
Keep the amount of liquid coolant to the level where the indicator is located between the L (low) and
H (high) mark in the scale on the left side of the Peltier Controller. When the coolant is running short for
the operation, LED of low water level is changed to red with an alarm sounding.
4. Disassemble the existing cell holder.

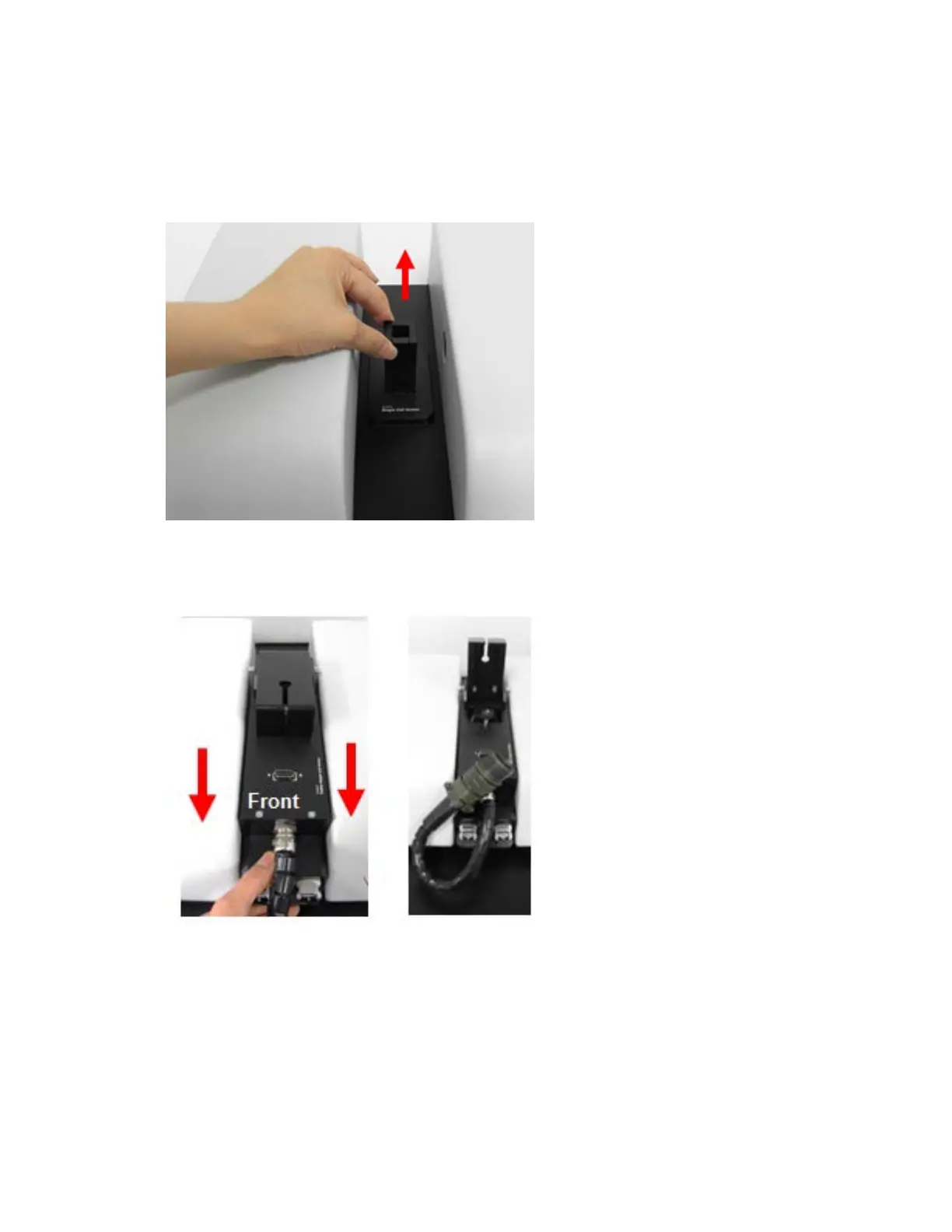

Figure 6 Removing the existing cell holder
5. Install the Peltier controlled single cell.
Figure 7 Installing the Peltier Controlled Single Cell
