Installation 29
Connection C: Connect the Flangeless fitting of the Connection tube assembly
to the front plate.
NOTE:

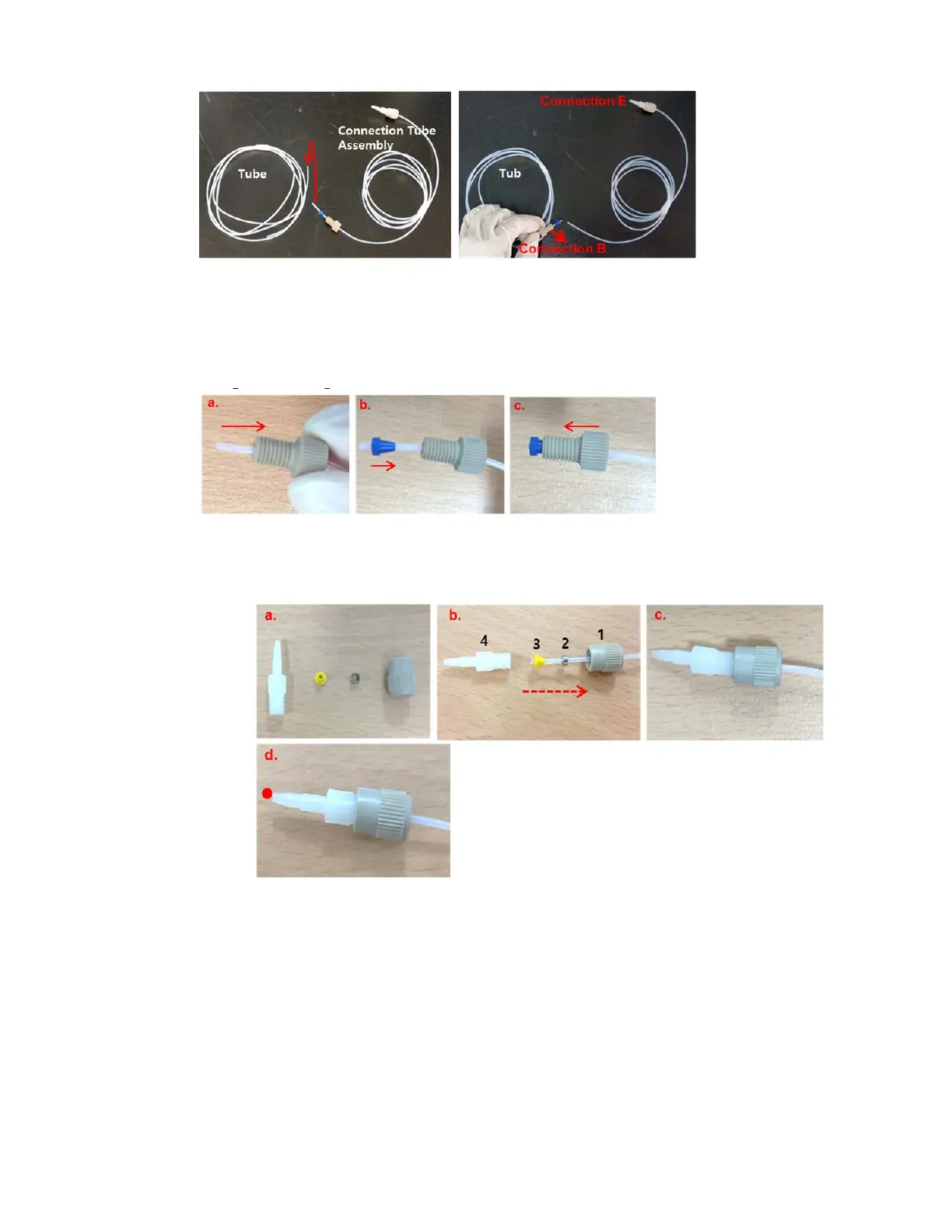

Assemble the Flangeless fitting for Connection A and Connection B following the procedures
in the picture below.
Flangeless fitting
Connection D: Connect the conical adapter of the Connection tube assembly to
the peristaltic pump tubing.
Connection E: Connect the conical adapter of the Connection tube assembly to
the peristaltic pump tubing.
2. Insert the peristaltic pump tubing into the cassette by placing the fixing collars of
the peristaltic pump tubing in the holes on each side of the cassette.
