22 SEBU8191-01
Operation Section
Features and Controls
Engine Oil Pressure Switch
g01278615

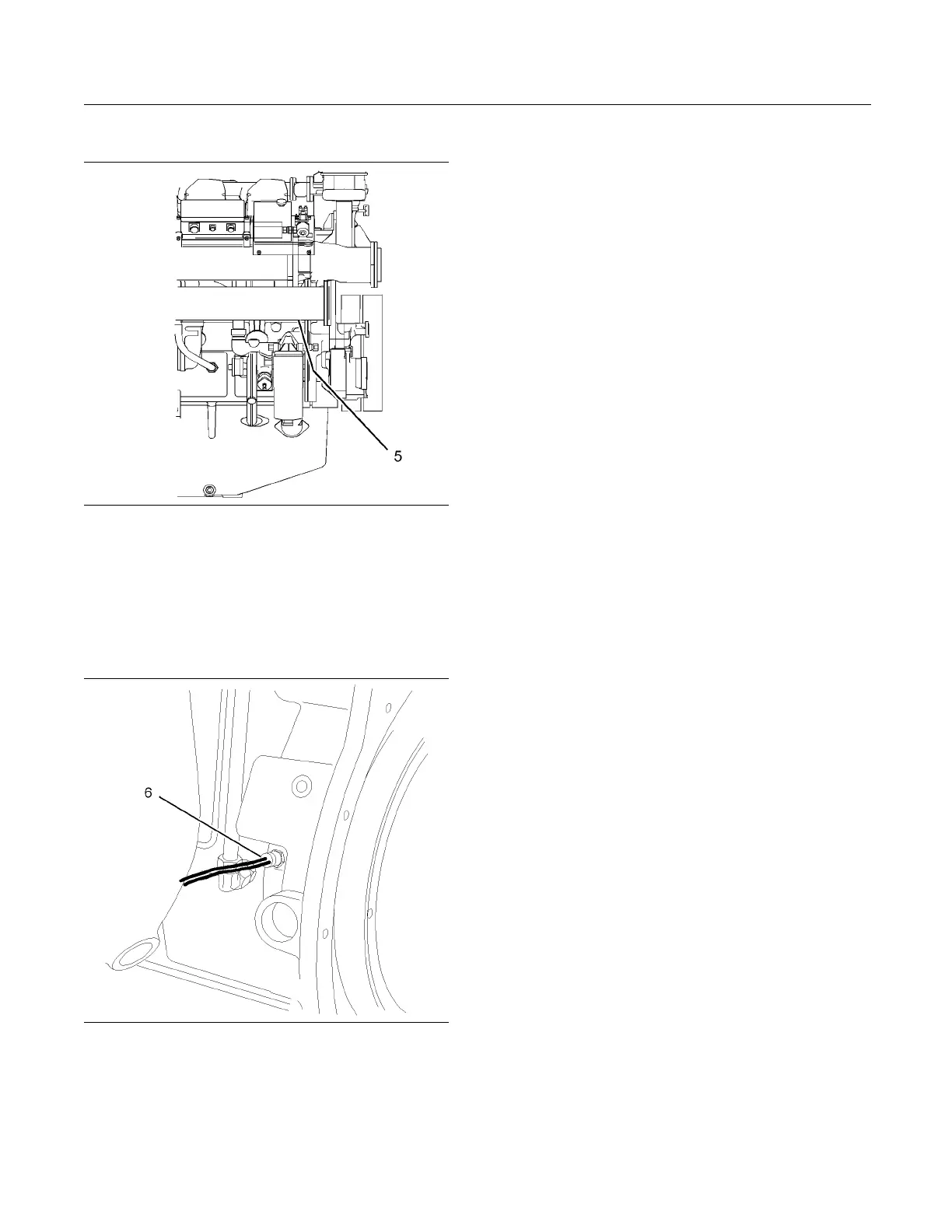

Illustration 21
Engine oil pressure switch
The engine oil pressure switch (5) is mounted in the
main oil gallery. The engine oil pressure switches are
supplied for connecting to an OEM supplied panel (1).
Overspeed Sensor
g01231518
Illustration 22
Overspeed sensor
The signal from the overspeed sensor (6) is
connected to the overspeed switch or the overspeed
circuit in the OEM supplied panel.
