18 User’s Handbook, TSL 4230, Issue 4
4016-E61TRS
How to fill the engine with oil
1 Remove the sump drain plug and check that the sump is clean and empty. Refit and tighten the plug.
Note: The oil filler and sump dipstick are at the front end of the engine, on the ‘B’ Bank side.

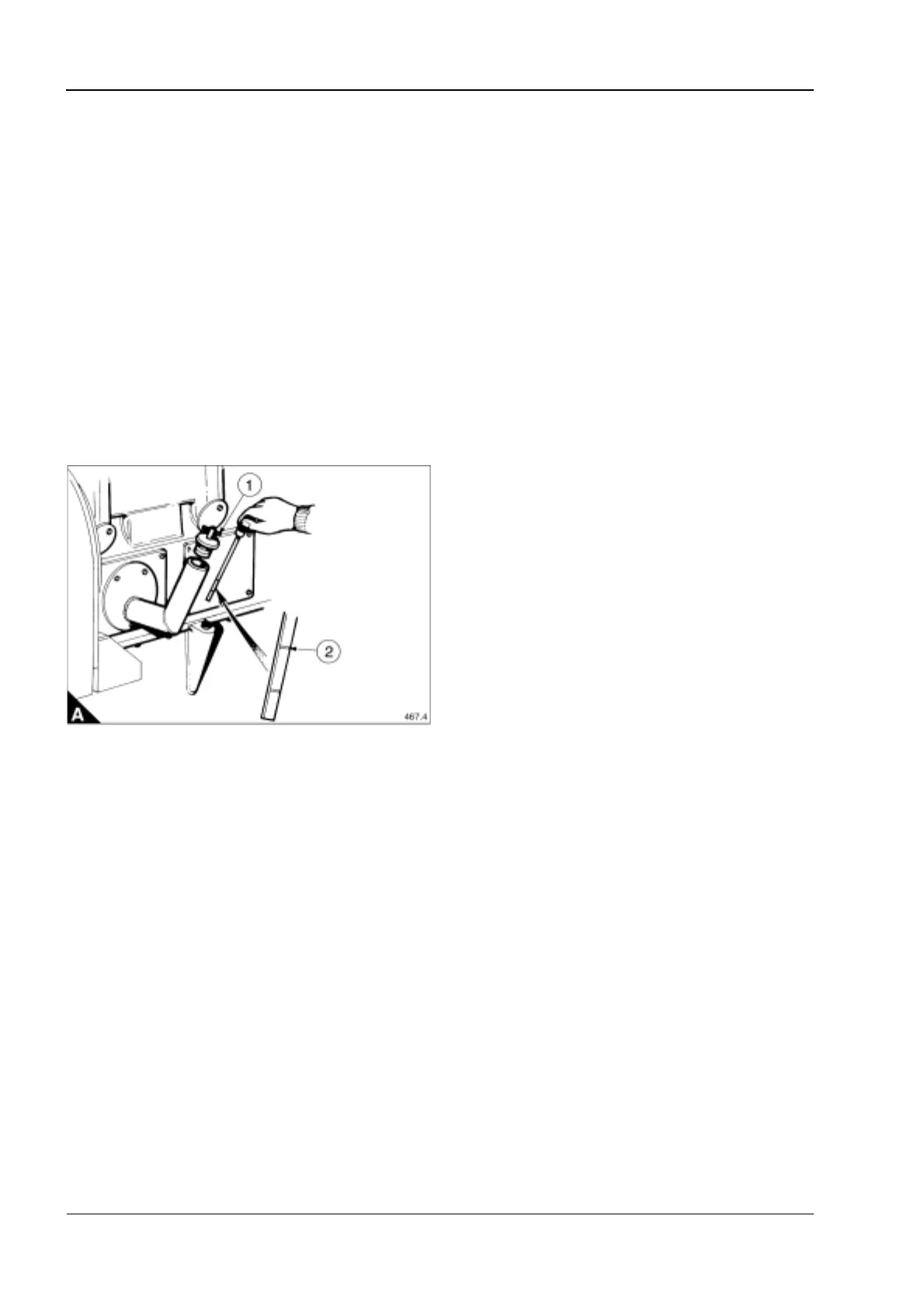

2 Remove the oil filler plug by rotating the T-bar (A1) anti-clockwise.
3 Fill the sump to the maximum mark on the dipstick (A2) with the correct grade of lubricating oil as specified
in "Lubricating oil recommendations" on page 42.
4 Refit the oil filler plug.
Quantity of oil
Maximum . ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 257 litres
Minimum .. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 147 litres
Total system.. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 286 litres
Caution: Use the oil priming sequence before the engine is run, see the OEM Application, Installation and
Commissioning Manual (TSL 4232) issue 3.
Note: When using the engine for the first time, it should be run until it reaches normal working temperature,
stopped, checked for oil leaks and, if necessary, the sump topped up to the full mark (A2) on the dipstick.
