User’s Handbook, TSL 4230, Issue 4 39
4016-E61TRS
How to set valve clearances
Special requirements
1 Check the clearance using a feeler gauge.
Note: The inlet and exhaust valve clearance is 0,4 mm (0.016 in).

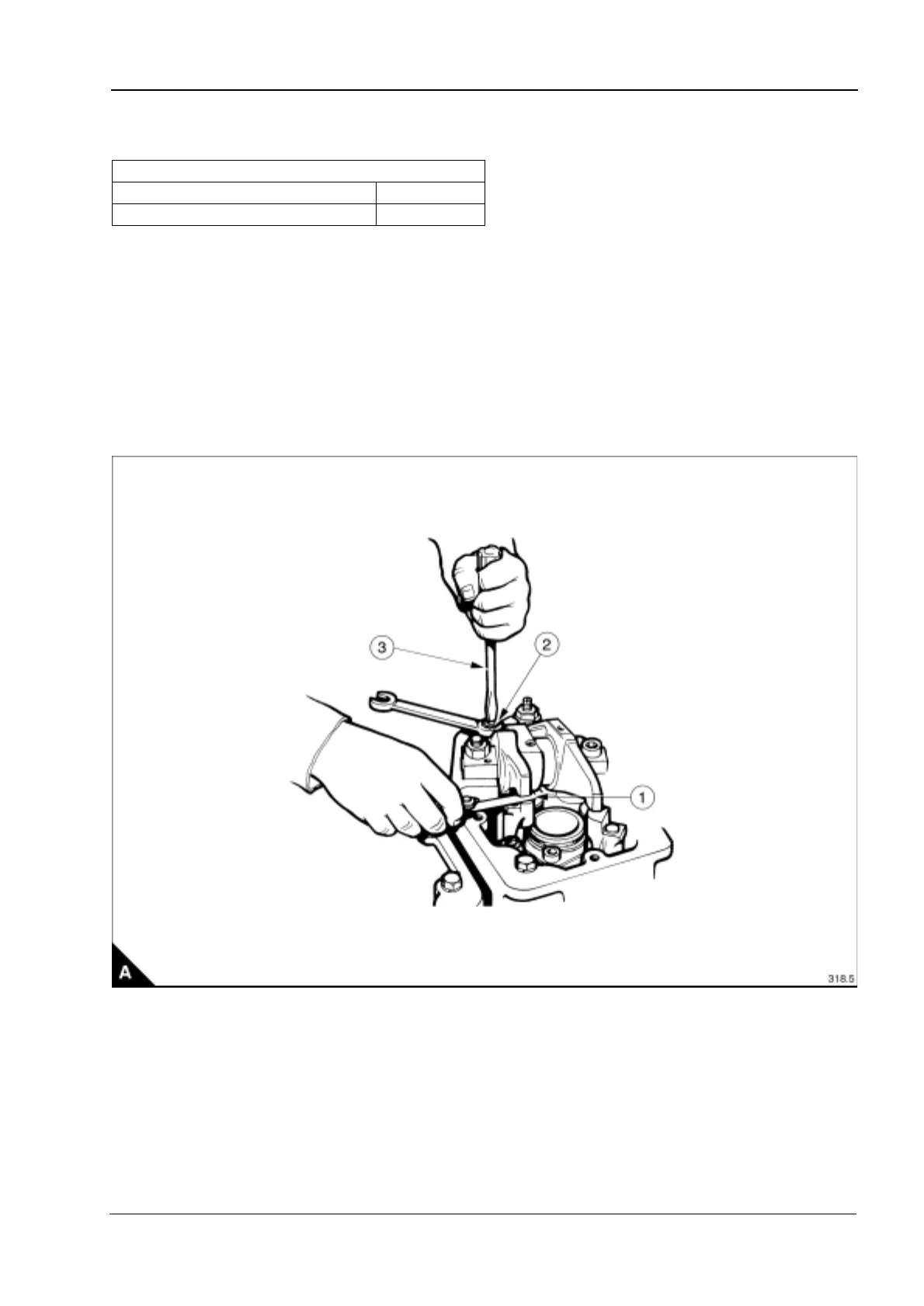

2 To set the valve clearance loosen the locknut (A2).
3 Place the feeler gauge (A1) between the rocker and bridge piece.
4 Screw the adjuster (A3) up or down making the feeler gauge a slide fit.
5 Tighten the locknut to a torque of 50 Nm (35 lbf ft) without moving the adjuster.
6 Refit the spark plug cover tube and rocker cover. Use a new gasket.
7 Refit the spark plug, refer to "How to clean, set and fit a spark plug" on page 35.
8 Refit the ignition coil. Tighten the retaining nuts to 19,0 Nm (14 lbf ft).
Special tools
Description Part number
Feeler gauges UA
