4016-E61TRS

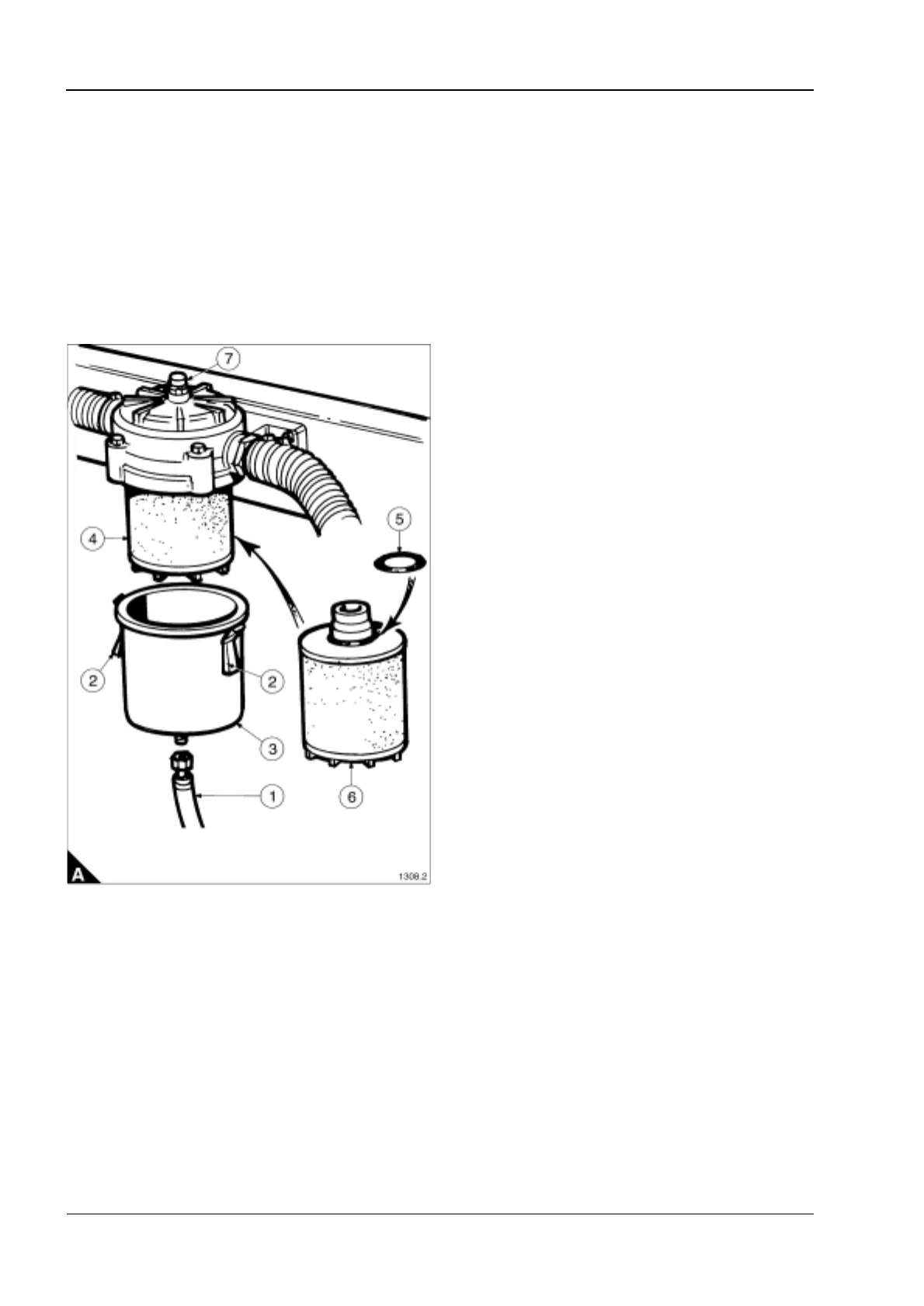

To change the filter element of the closed circuit breather
1 Disconnect the oil drain pipe (A1).
2 Release the three retaining clips (A2) and lift the filter container (A3) from the filter body.
3 Pull the filter element (A4) down from the filter body and discard it.
4 Clean the oil deposits from the filter container and the filter body.
5 Fit the sealing/retaining ‘O’ ring (A5) to the new filter element (A6).
6 Push the filter element into its location in the filter body.
7 Fit the filter container to the filter body. When locking down the retaining clips check the container is squarely
seated on the filter body.
8 Refit the oil drain pipe (A1).
