How to remove a spark plug
Special requirements

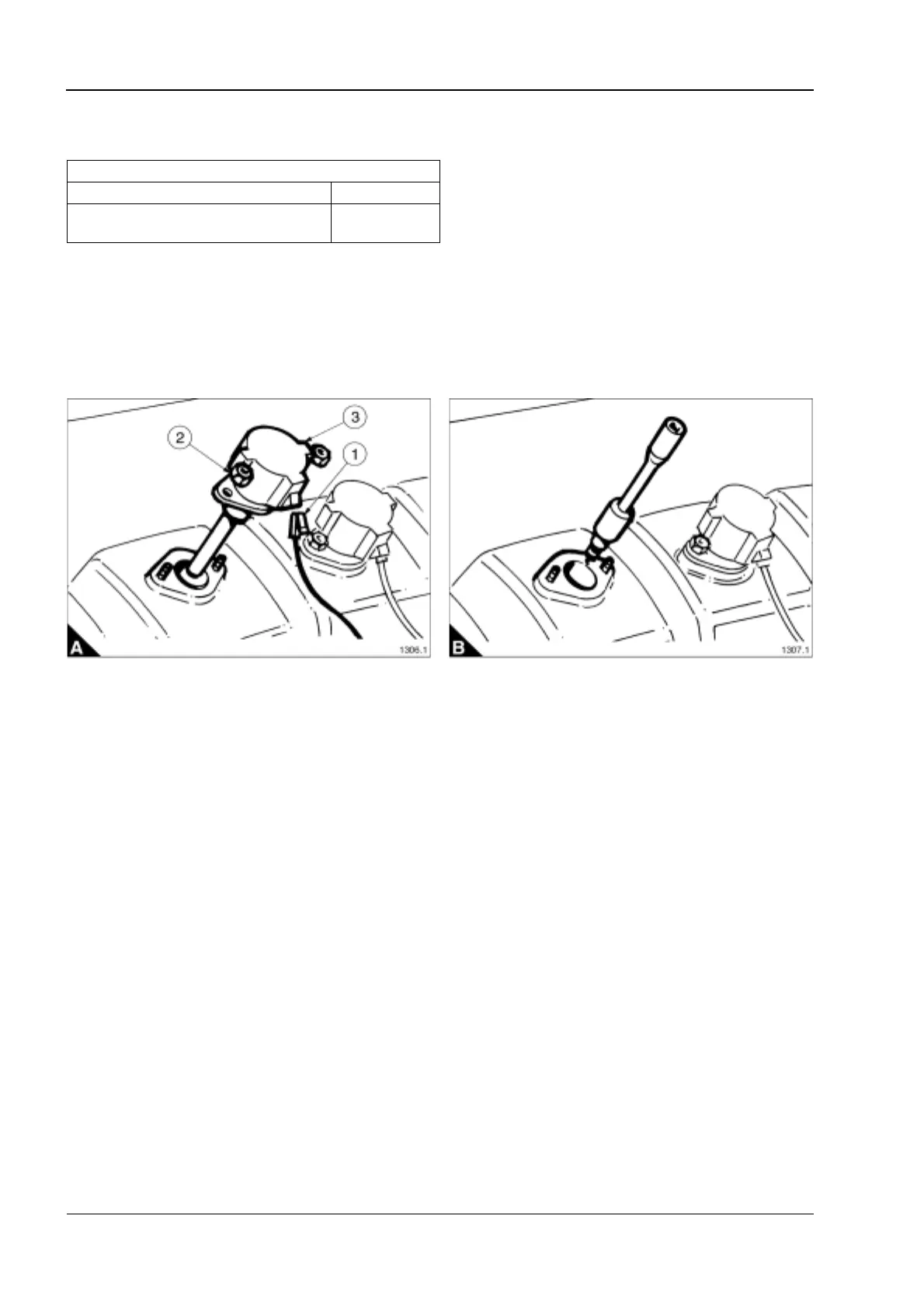

1 Disconnect the power lead (A1) to the ignition coil.
2 Remove the two retaining nuts (A2).
3 Pull the combined ignition coil/plug cap (A3) out of the rocker cover.
4 Remove the spark plug (B).
Note: Store the spark plugs in their cylinder order as the combustion deposits on the plugs will give a guide
to the conditions in each cylinder.
Special tools
Description Part number
Spark plug removal socket and extension
bar
27610190
