Engine views
Introduction
Perkins engines are built for specic applications and the views which follow do not necessarily match your
engine specication.
Location of engine parts - 4 cylinder turbocharged engines

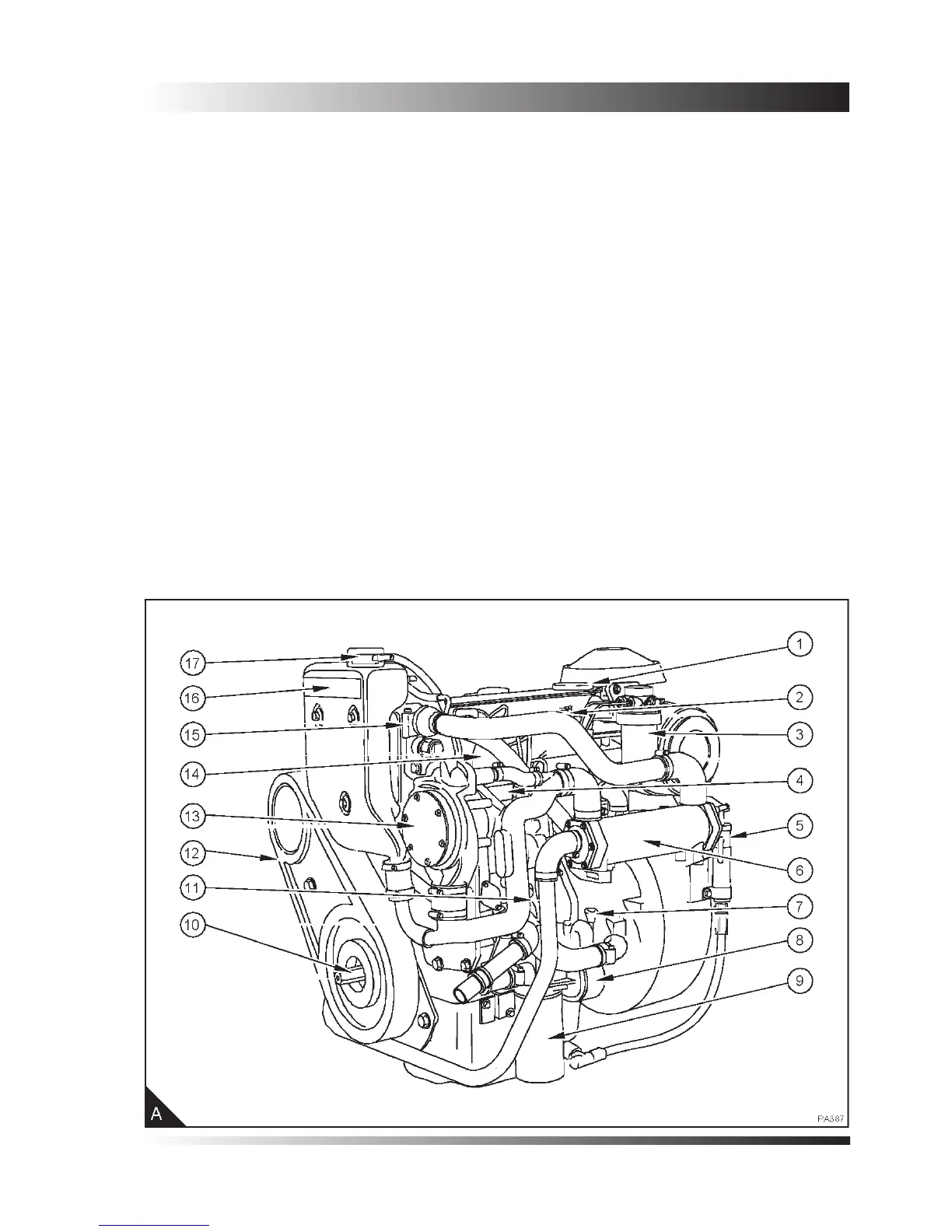

Front and left side (A)
1. Crankcase breather
2. Atomiser
3. Fuel lter
4. Fuel injection pump
5. Drain pump for the engine lubricating oil
6. Heat exchanger for the closed circuit coolant
7. Dipstick for the engine lubricating oil
8. Cooler for the engine lubricating oil
9. Lubricating oil lter
10. Engine crankshaft rotation adaptor
11. Raw water pump
12. Cover for the drive belt
13. Closed circuit water pump
14. Front lift bracket
15. Thermostat housing
16. Coolant header tank
17. Filler cap for coolant header tank
