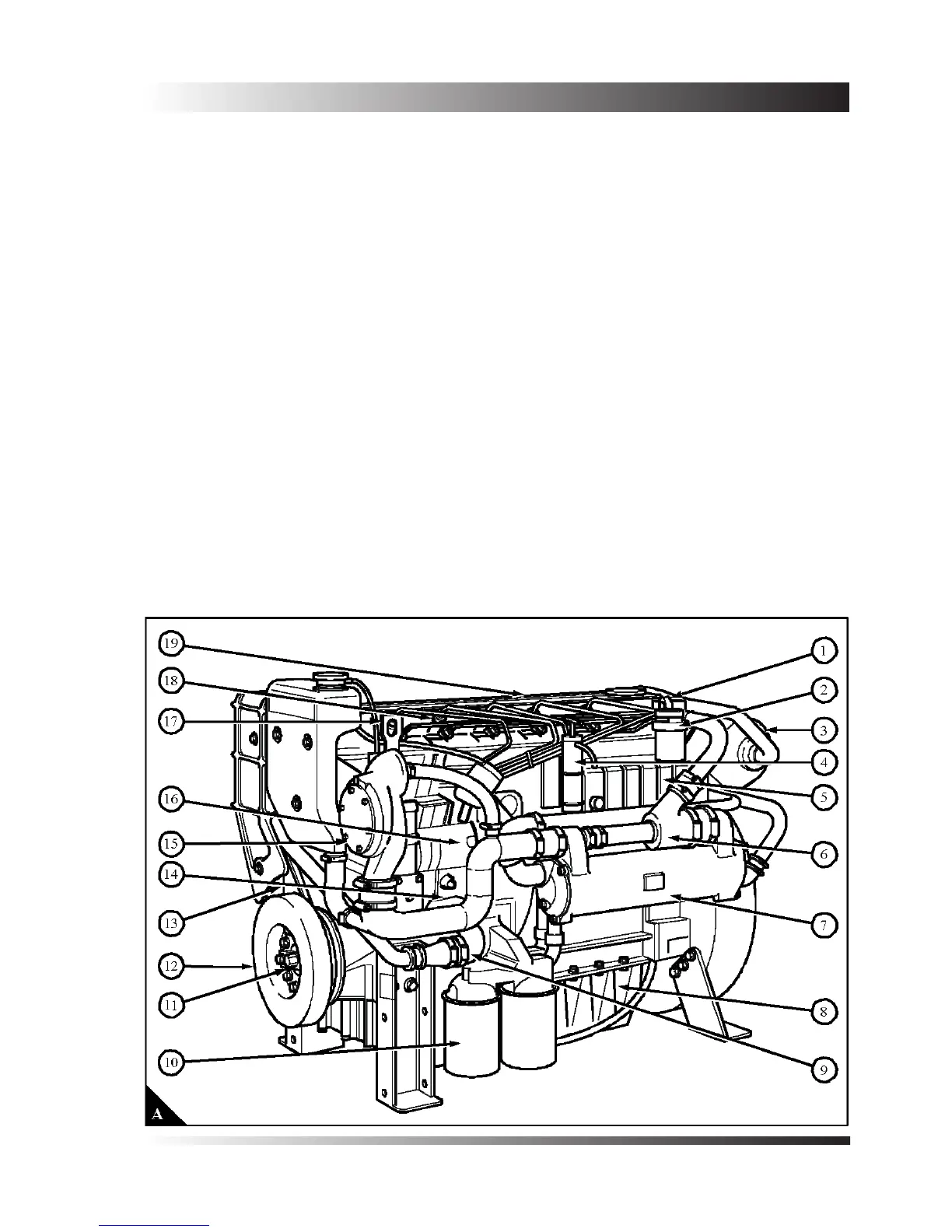

Front and left side view (A)
1. Rear lift bracket
2. Fuel lter
3. Air lter
4. Drain pump for the engine lubricating oil
5. Cooler for the engine lubricating oil
6. Thermostat housing
7. Heat exchanger for the closed circuit coolant
8. Sump for the engine lubricating oil
9. Strainer for the raw water pump
10. Lubricating oil lter
11. Device to rotate the crankshaft
12. Crankshaft damper
13. Drive belt for alternator
14. Raw water pump
15. Coolant pump for the closed circuit
16. Fuel injection
17. Front lift bracket
18. Atomiser
19. Crankcase breather
Location of engine parts - 6 cylinder turbocharged, intercooled engines
