Perkins 4GM - Front and Left Side (A); Location of Engine Parts - 6 Cylinder Turbocharged Engines

TPD1327E Chapter 2
Page 9

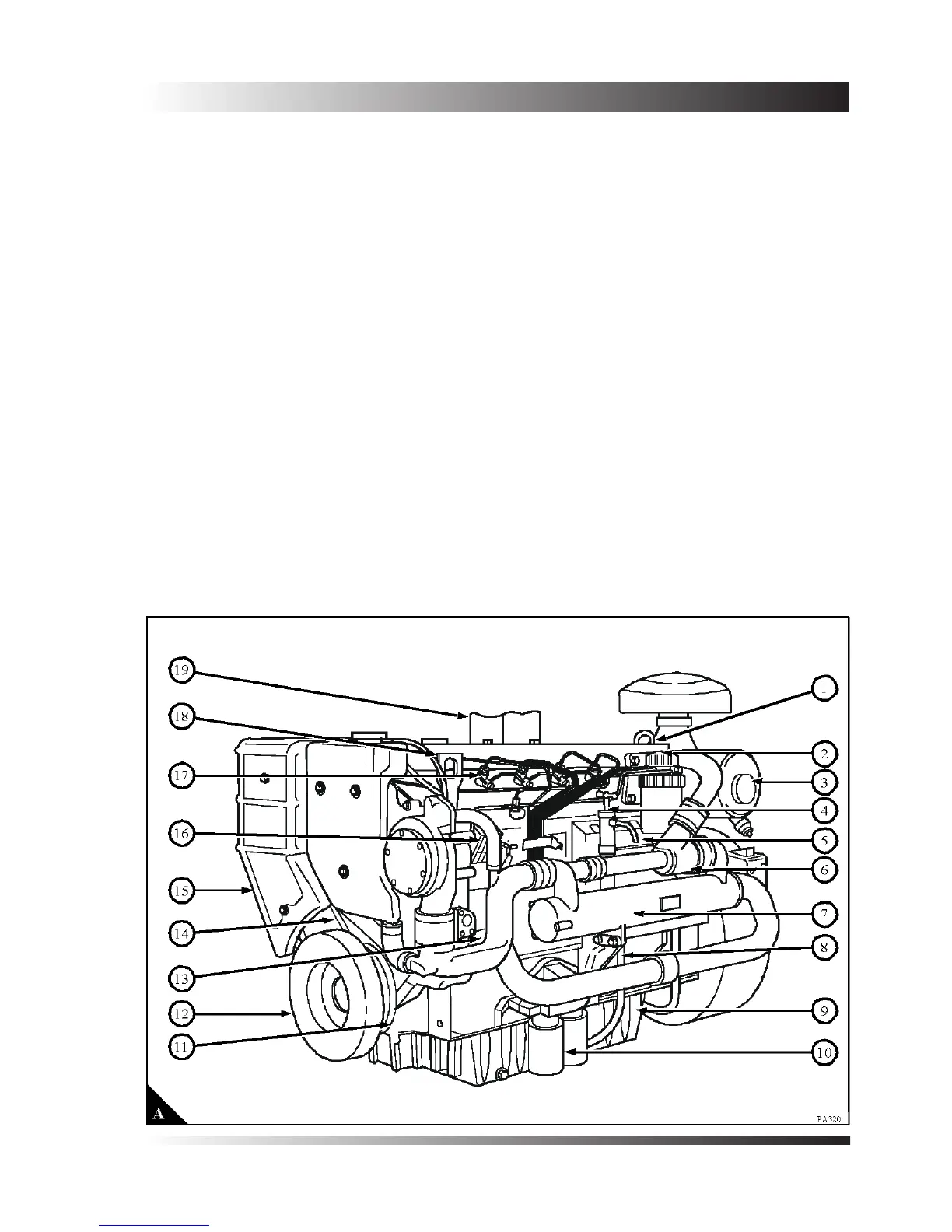

Front and left side (A)
1. Rear lift bracket
2. Fuel lter
3. Air lter
4. Drain pump for the engine lubricating oil
5. Cooler for the engine lubricating oil
6. Thermostat housing
7. Heat exchanger for the closed circuit coolant
8. Dipstick for the engine lubricating oil
9. Sump for the engine lubricating oil
10. Lubricating oil lter
11. Crankshaft pulley
12. Crankshaft damper
13. Raw water pump
14. Drive belt for alternator
15. Cover for the drive belt
16. Fuel injection pump
17. Atomiser
18. Front lift bracket
19. Exhaust outlet
Location of engine parts - 6 cylinder turbocharged engines
