TPD1327E Chapter 4
Page 39
Six cylinder engines

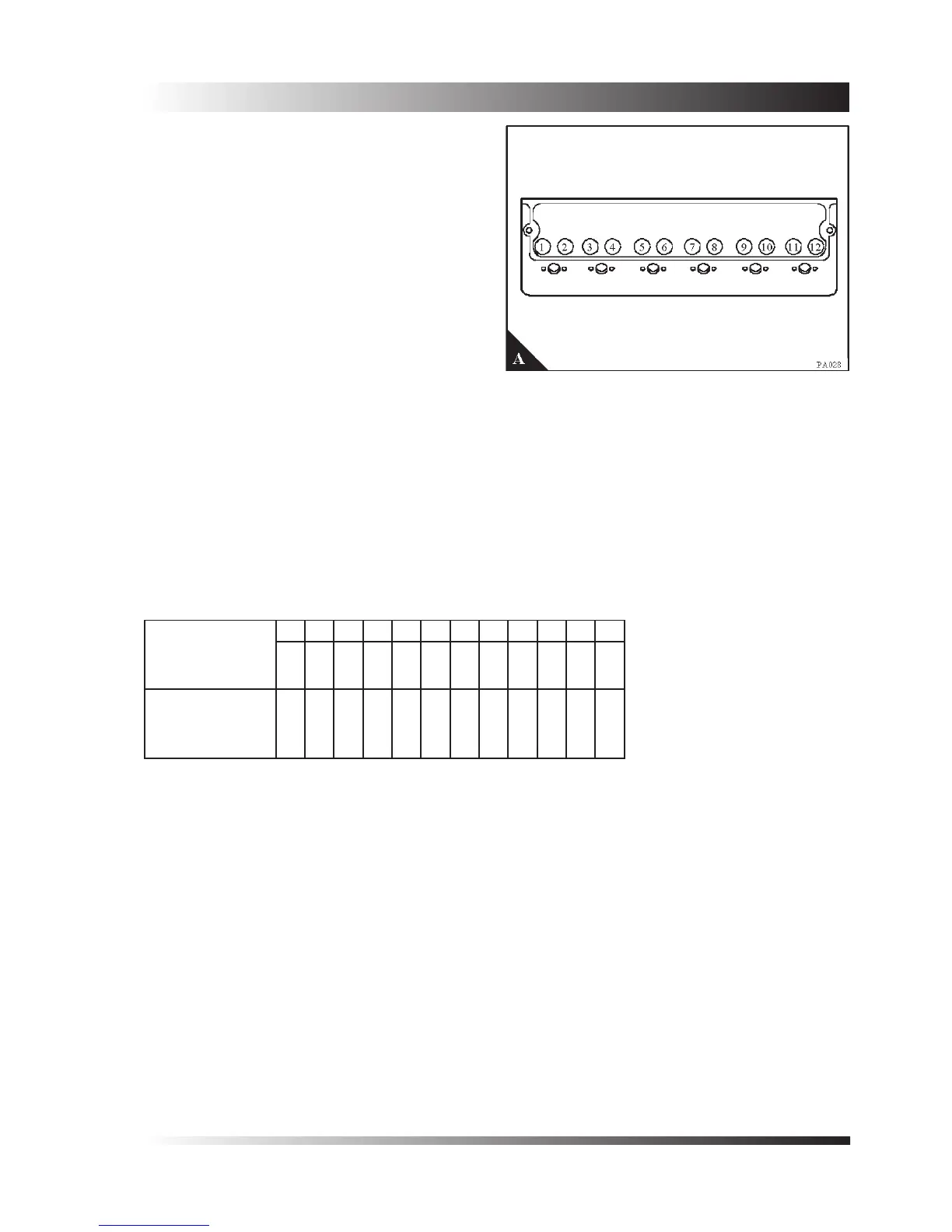

1. Rotate the crankshaft in the normal direction
of rotation until the inlet valve (A12) of number
6 cylinder has just opened and the exhaust
valve (A11) of the same cylinder has not closed
completely. Check the clearances of the valves
(A1 and A2) of number 1 cylinder and adjust
them, if necessary.
2. Set the valves (A3 and A4) of number 2 cylinder
as indicated above for number 6 cylinder. Then
check / adjust the clearances of the valves (A9
and A10) of number 5 cylinder.
3. Set the valves (A7 and A8) of number 4 cylinder.
Then check / adjust the clearances of the valves
(A5 and A6) of number 3 cylinder.
4. Set the valves (A1 and A2) of number 1 cylinder.
Then check / adjust the clearances of the valves
(A11 and A12) of number 6 cylinder.
5. Set the valves (A9 and A10) of number 5
cylinder. Then check / adjust the clearances of
the valves (A3 and A4) of number 2 cylinder.
6. Set the valves (A5 and A6) of number 3 cylinder.
Then check / adjust the clearances of the valves
(A7 and A8) of number 4 cylinder.
Cylinder
and
valve
number
1 2 3 4 5 6
1 2 3 4 5 6 7 8 9 10 11 12
Valve
I = Inlet
E = Exhaust
I E E I I E E I I E E I
