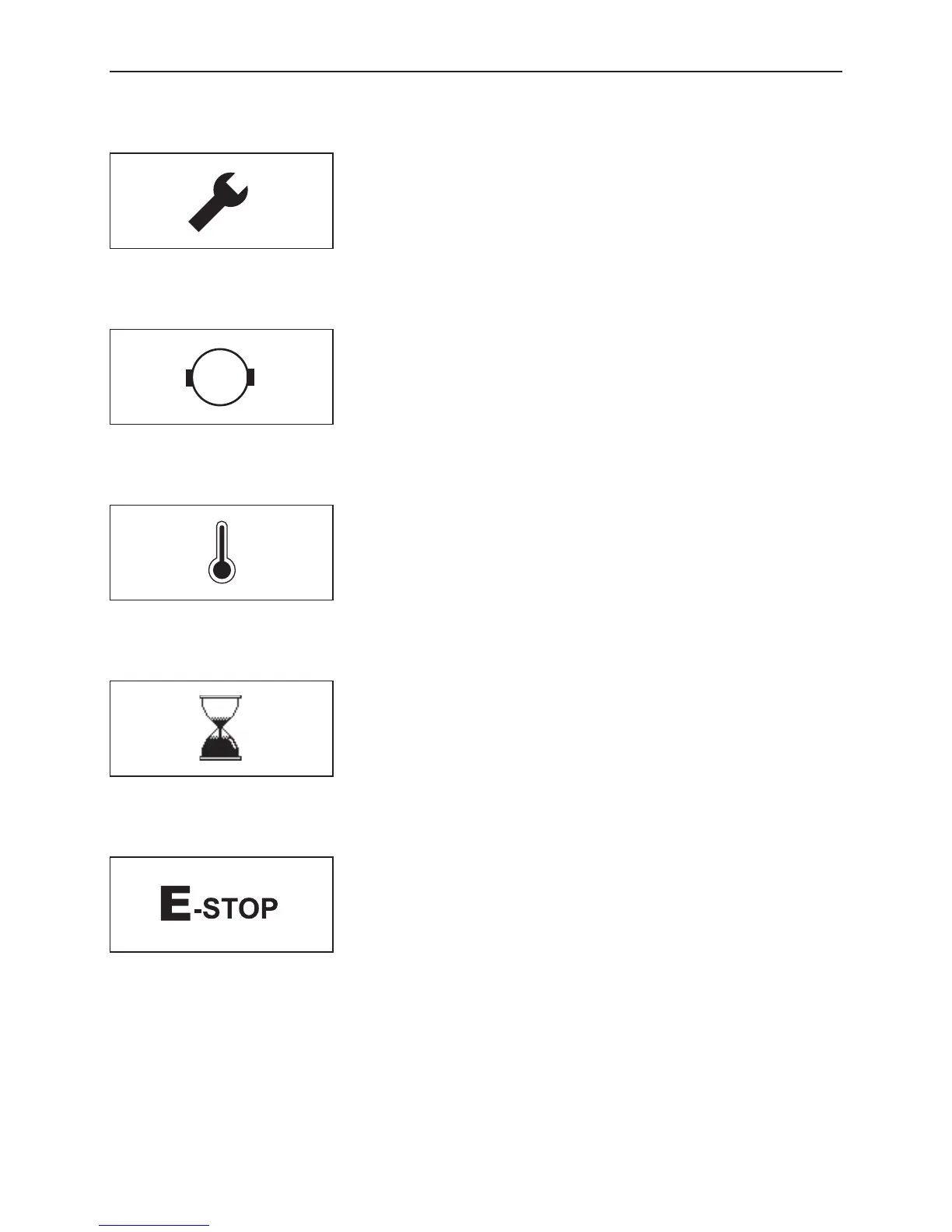

Fault
The control system can detect a wide variety of
errors. When the system has detected an error that
is not severe enough to cause the system to trip,
then this symbol will be displayed.
Motor Temperature
This symbol is displayed when the control system
has intentionally reduced the power to the motors, in
order to protect them against heat damage.
Control system Temperature
This symbol is displayed when the control system
has intentionally reduced its own power, in order to
protect itself against heat damage.
Timer
This symbol is displayed when the control system is
changing between different states. An example
would be entering into Programming Mode. The
symbol is animated to show the sands falling.
E-Stop
If the control system is programmed for latched drive
or actuator operation, then it is normal for an
Emergency Stop Switch to be connected into the
External Profile Switch Jack. If the Emergency
Stop Switch is operated or disconnect, this symbol
will flash.
