Permobil C500 - Replacement of Charging Fuse

Owner´s Manual Permobil C500 Maintenance and Repairs
71

WARNING
Always shut off the Power Supply on the Control Panel before changing the Charging Fuse. The
battery charger must not be connected when the Charging Fuse is replaced.
A triggered Charging Fuse can indicate a problem or defects with batteries, charger, charger
cables or the wheelchair's charging socket.
The cause of a triggered Charging Fuse should be carefully checked before the fuse is replaced.

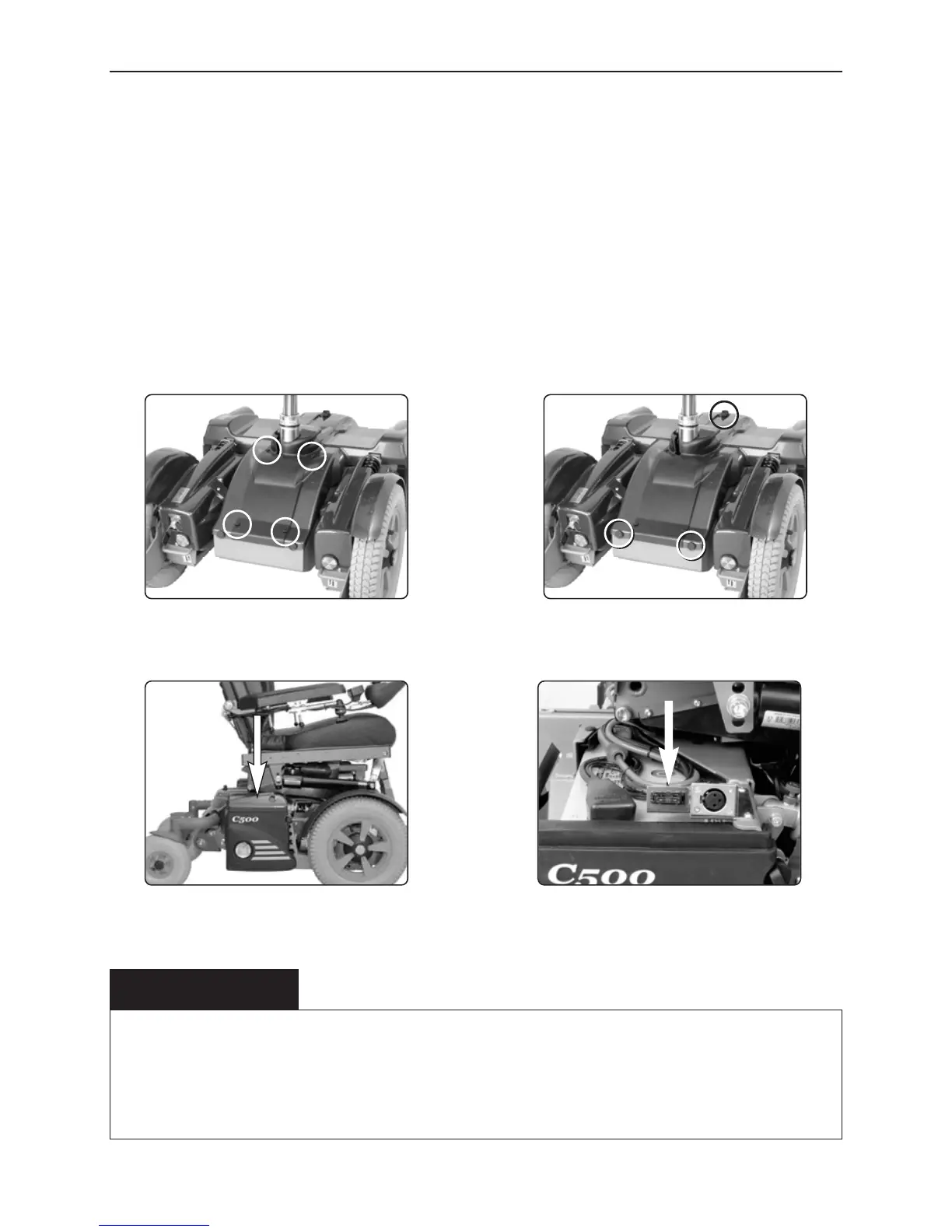

The Charging Fuse is located
under the Main chassis cover
Charging Fuse 15A
Replacement of Charging Fuse, 15A
The charging fuse is located under the main chassis cover. To replace the charg-
ing fuse, you must remove the main and front center chassis cover.
• Remove the small front center chassis cover. The cover is fastened with four
plastic plugs, and can be removed by pulling the cover upwards by hand.
• Remove two knobs that holds the front of the main chassis cover and the
knob at the rear. Lift the cover off and replace the triggered fuse with a new
15A charging fuse.
• Reassemble in reverse order.
Remove the Center
Chassis Cover (A)
Remove the
Main Chassis Cover (B)
A
B
