Explorer Mini Getting to know your wheelchair
3.4.6 Battery indicator

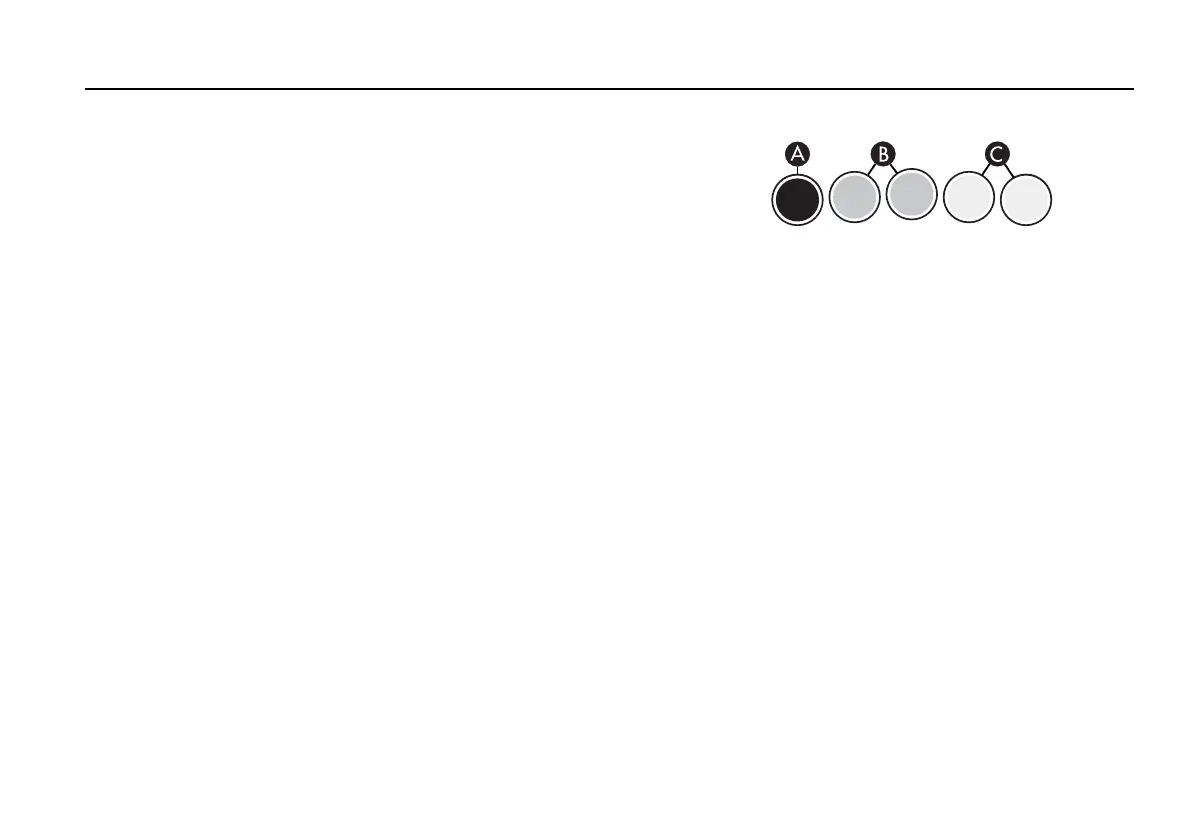

Figure 17. Battery indicator. A shows the red LED lit. B
shows the yellow LEDs lit. C shows the green LEDs lit.
The battery indicator gives an approximate indication if the batteries
need to be charged to prevent unnecessary stops because of
discharged batteries. The LEDs on the battery indicator show the
battery status:
• When the batteries are fully charged, the red LED (A), yellow
LEDs (B), and green LEDs (C) are lit.
• When the battery level is critically low, the red LED (A) flashes
and a beep sounds. This means that you have to charge the
batteries immediately to prevent that the Explorer Mini stops
working.
• If all LEDs (A, B, and C) flash, there is a problem with the
electronics. Please contact your service provider or Permobil.
51
