Explorer Mini Getting to know your wheelchair
3.6.6 Wiring diagram

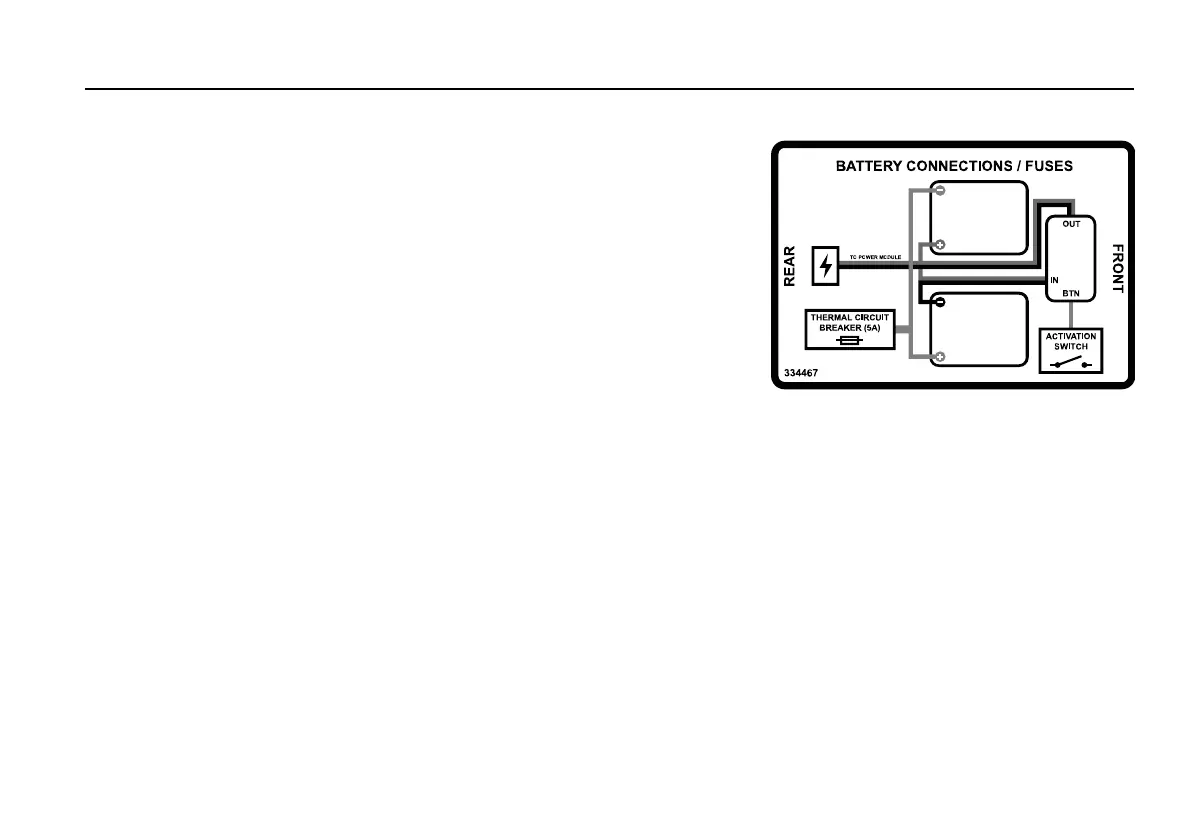

Figure 26. Label that shows the wiring diagram for the
batteries.
The label shows wiring diagram for the batteries and fuses. It
includes the battery polarities, the main fuse, and the position of the
activation switch.
