Explorer Mini Getting to know your wheelchair
3.6.1 Serial number on the base module

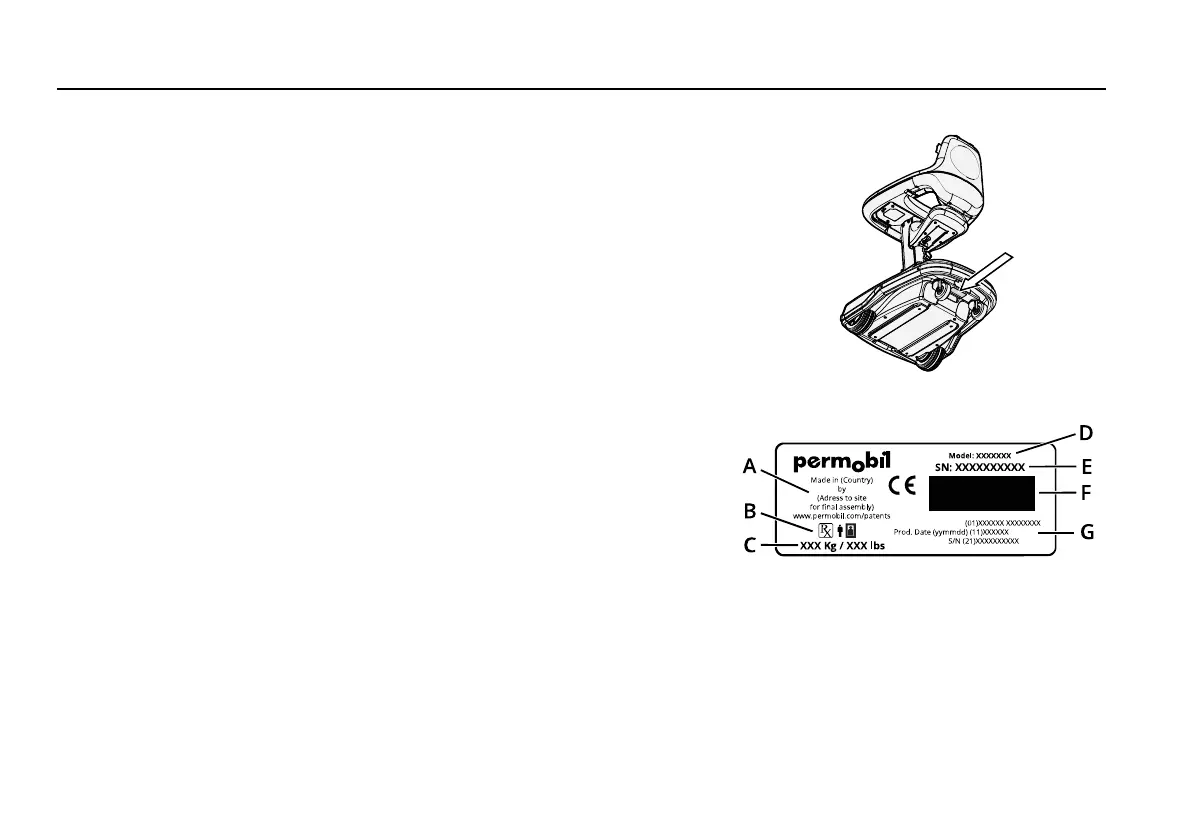

Figure 20. Position of the serial number label.
Figure 21. Information on the serial number label.
The serial number label is attached between the caster wheels at the
base module.
Information on the serial number label:
A. Made in (country of final assembly) by (address to site of final
assembly).
B. Federal Law (United States) restricts this device to sale by or on
the order of a healthcare provider.
C. Maximum user weight.
D. Model name of the product.
E. Serial number.
F. EAN code.
G. Device identifier (01), Date of assembly (11), Serial number (21).
56
