Changing the magnetic brake
16
Changing/adjusting the
magnetic brake

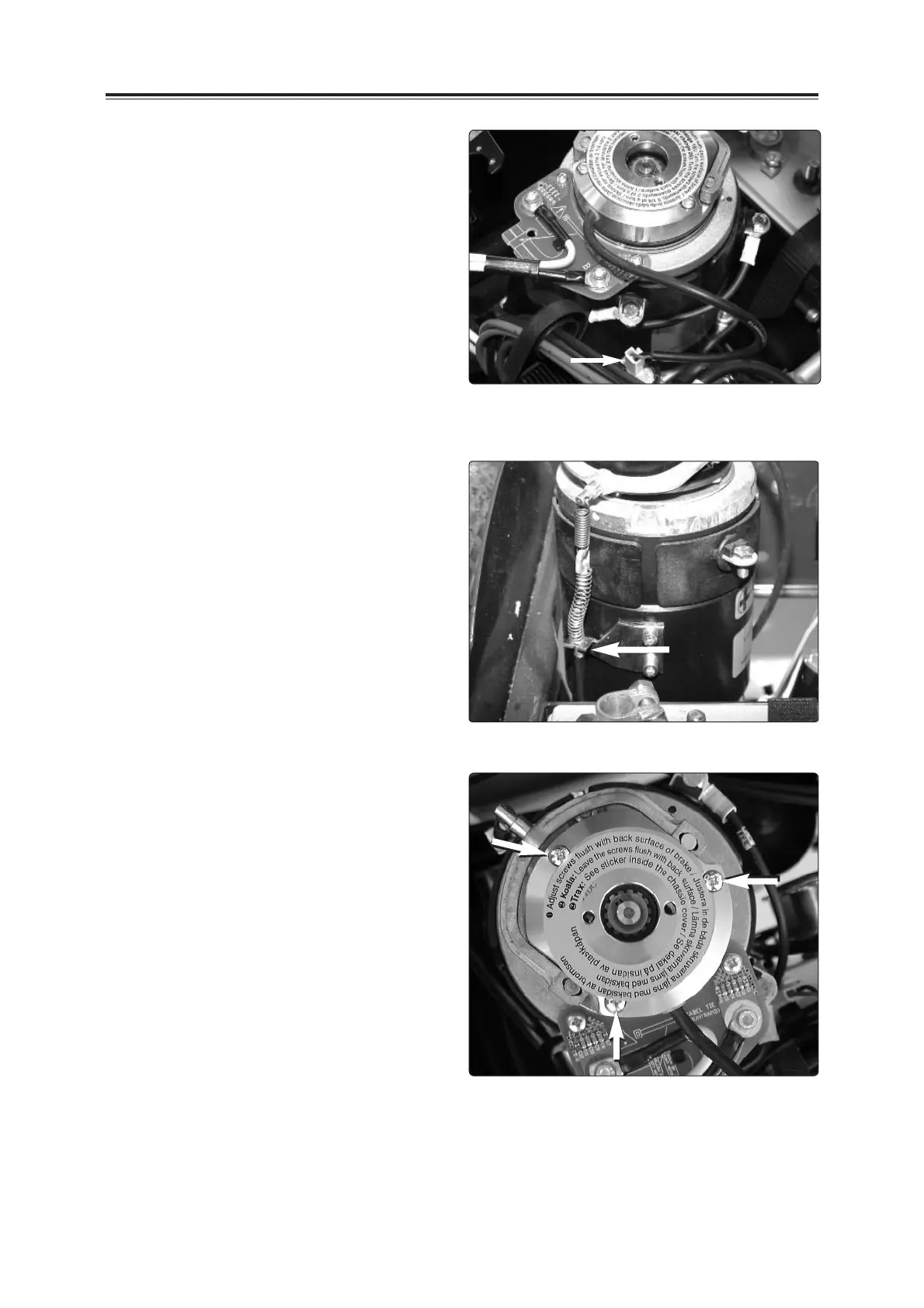

Electrical connection of the magnetic brake
Brake release wire attachment
Remove the brake
Removal
1. Raise the seat to its highest position.
2. Remove the cover, which is held in place
by four screws. See page 7.
3. Disconnect the electrical connection of the
magnetic brake. See the figure to the right.
4. Detach the brake release wire first from the
drive assembly and then from the clamp of
the magnetic brake.
5. Unscrew the three screws which hold the
brake and remove the brake, brake disc
and cover.
6. Note the position of the brake release arm.
