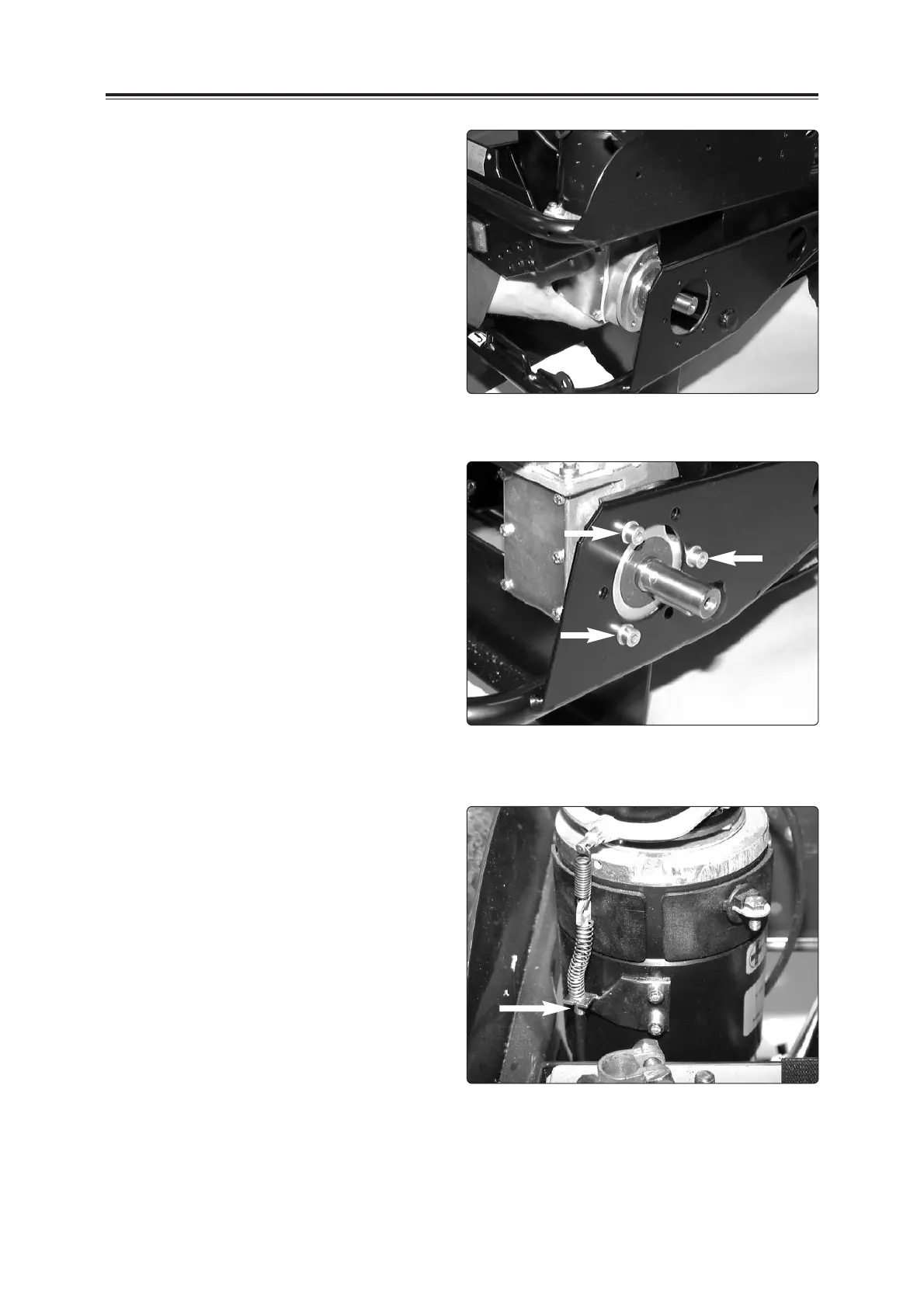

Fitting
1. When a new drive motor is to be fitted,
the magneticbrake must be moved over
from the old drive assembly. See "Fitting
the magnetic brake" on page 12.
2. Lift the motor into place on the chassis.
3. Screw the motor in place with the three
screws.
Changing the drive motor
Brake release wire
4. First attach the brake release wire to the
magnetic brake's clamp and fix the brake
cable to the mounting on the motor.
See the figure to the right.
Fit the motor
Lift the motor in
