Steering knuckle spring mounting
30
Changing the steering knuckle
spring suspension or steering
knuckle bearing and O-ring
1. Block up the front wheel assembly.
2. Remove the front mudguard. See page
33.
3. Remove the front wheel. See page 10.

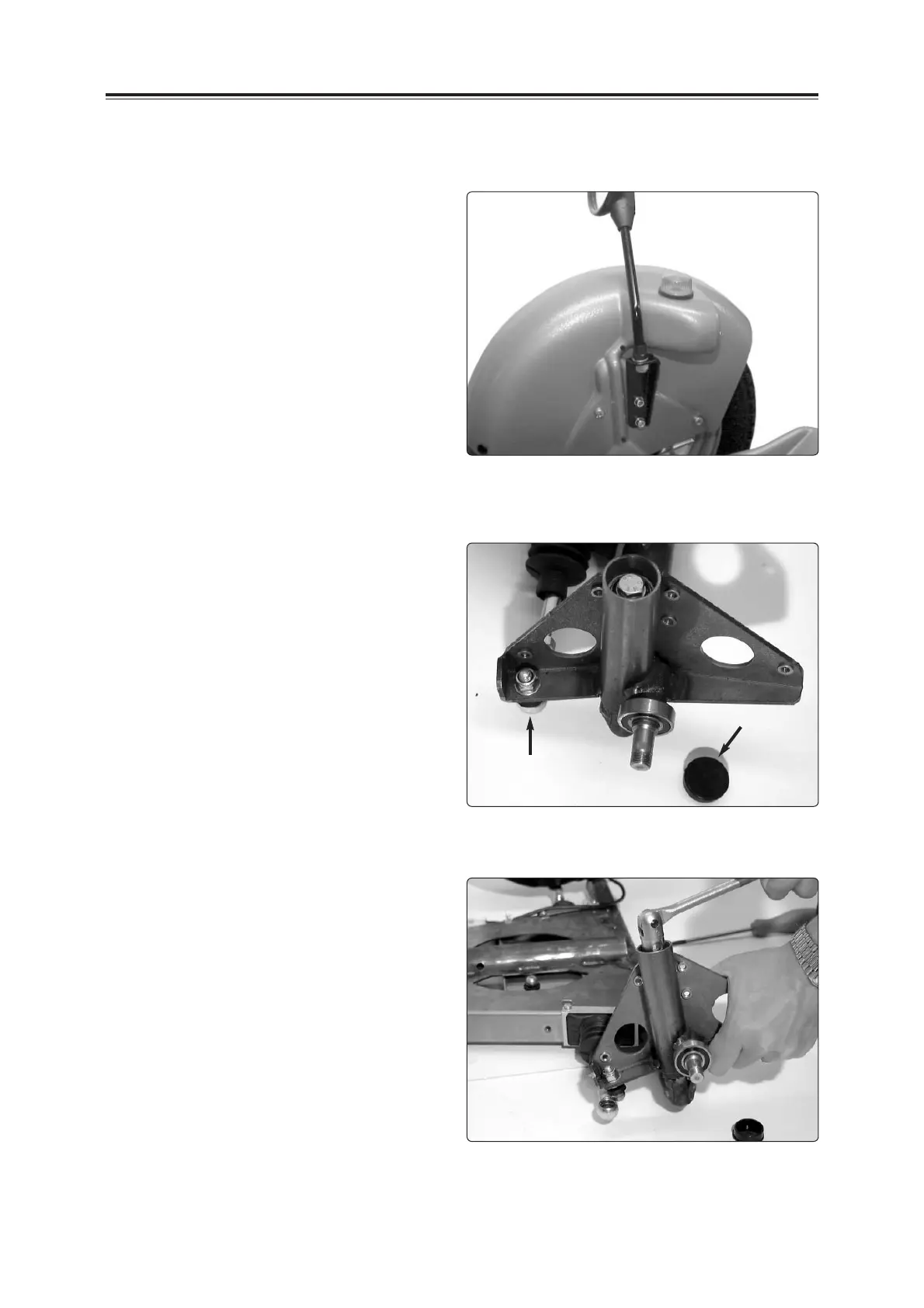

Steering knuckle spring mounting
Front mudguard
Remove the articulated strut and plastic plug
Loosen the steering mounting
4. Remove the articulated strut.
Remove the locking pin and pull apart the
articulated strut or loosen the screw in the
steering mounting.
5. Remove the plastic plug using a screw-
driver.
6. Loosen the M8 screw and lift up the
steering mounting.
Plastic plug
Articulated strut ball
