Changing the magnetic brake
18

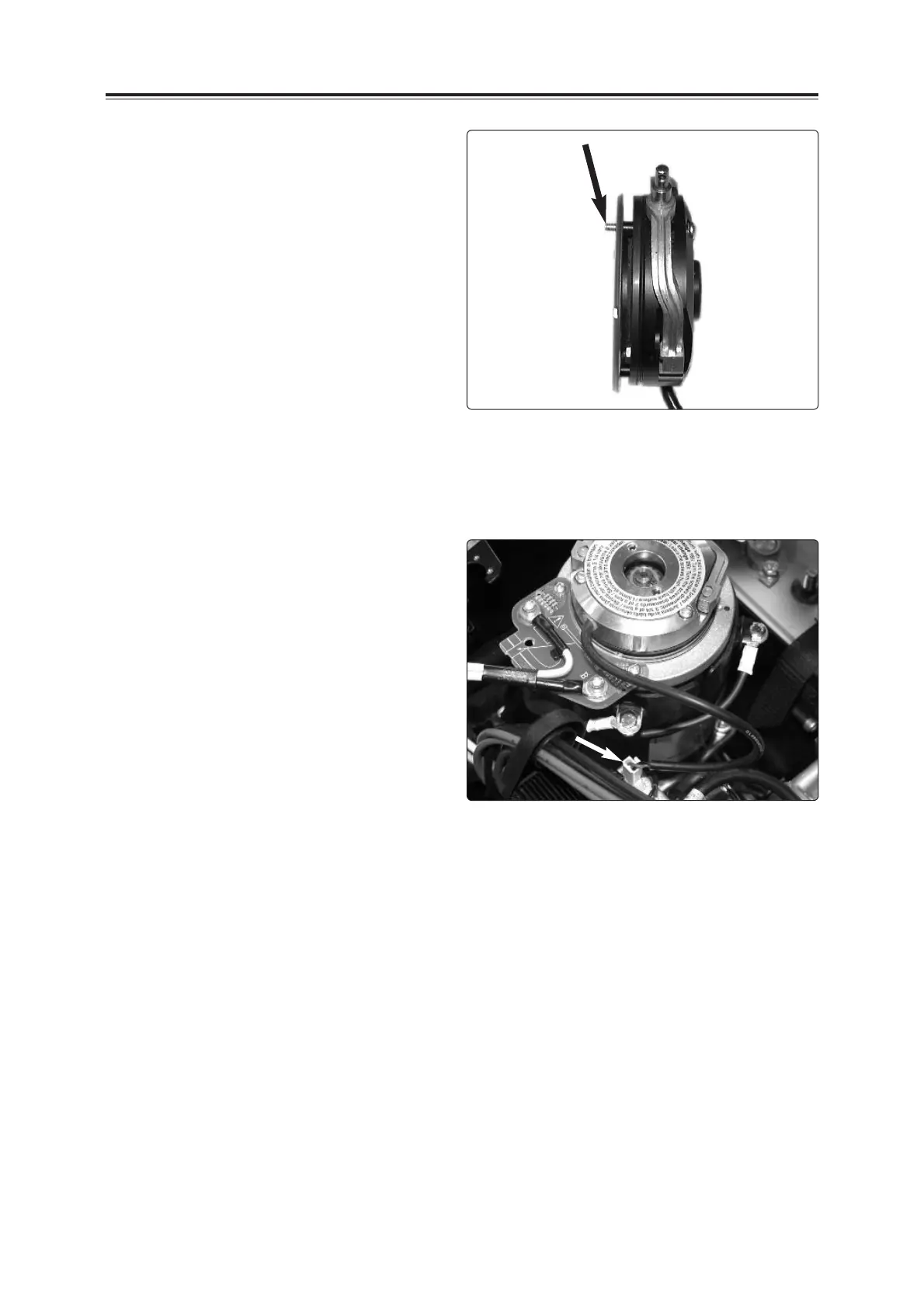

The magnetic brake's electrical connection
4. Insert a screw to align the parts and
screw the magnetic brake in place on
the motor using the three screws.
5. Connect the magnetic brake's electrical
connection to the jack panel.
6. Fit the chassis cover. See "Covers",
page 7.
Magnetic brake
