Cable laying
55
Steering wire
1. Laying of the power steering cable.
2. Place the cable along the side of the
chassis.

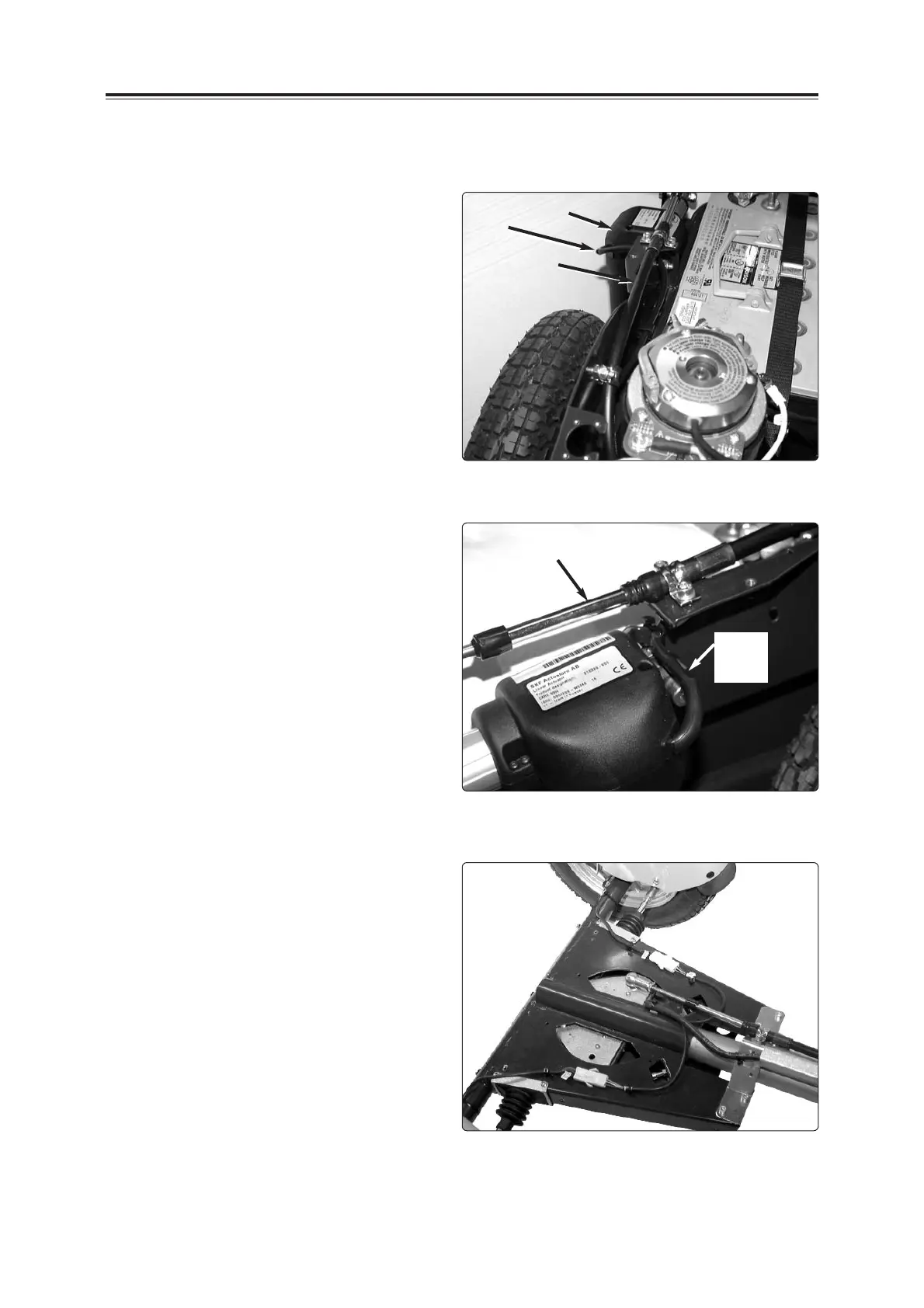

Cable laying, chassis
Laying of the steering wire (seen from the rear)
Laying the power steering cable (seen from the side)
Cable laying in the front wheel assembly
(seen from the side)
Steering wire
1. Fixing the power steering cable to the
chassis.
Front wheel assembly
1. Position of the cable for the front lights
in the front wheel assembly.
Power steering
cable
Steering wire
Power
steering
cable
Steering wire
